TP-Link AP9650 Installation Manual page 6

English

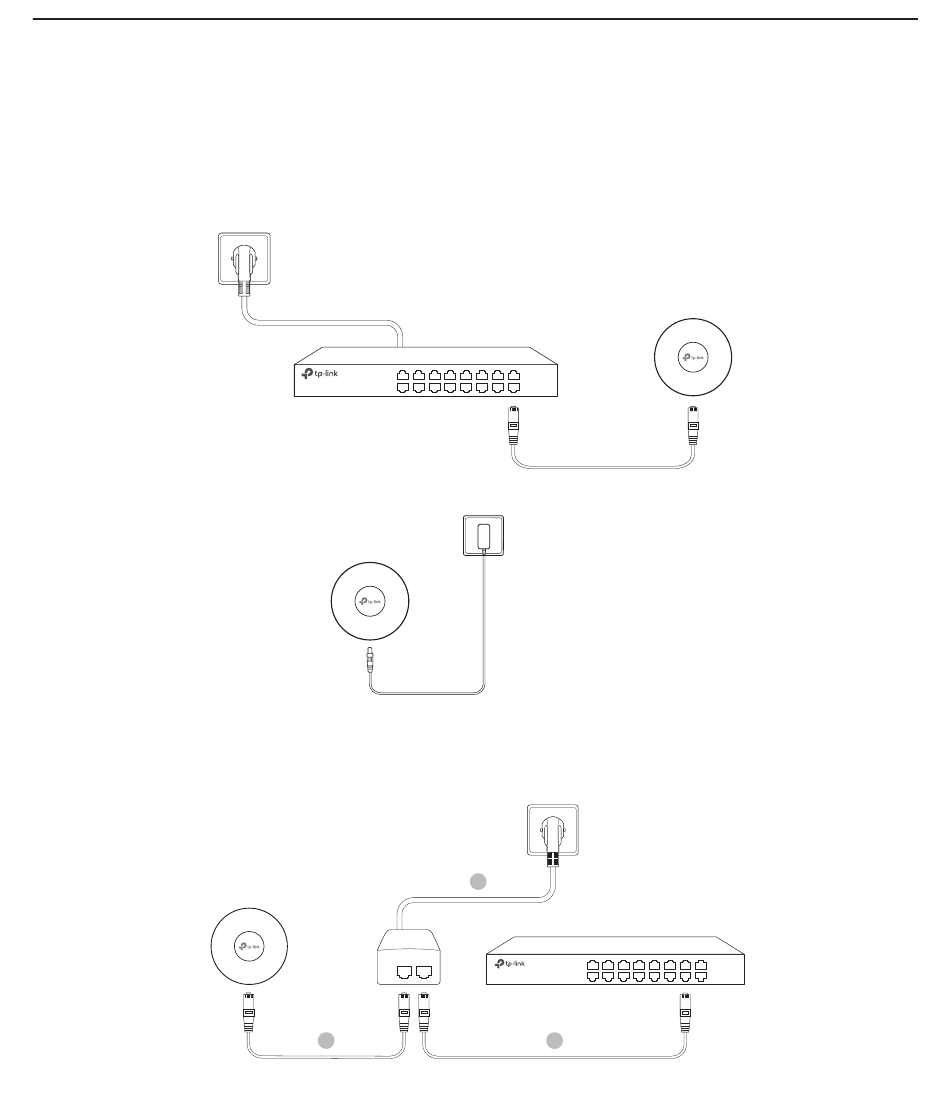

Power Supply
■ Power via PSE Device or Power Adapter
Some APs can be powered via the power adapter or the PSE device (such as a PoE switch) which
complies with Power Source Class 2 (PS2) or Limited Power Source (LPS) of IEC 62368-1�
Note: Availability depends on the actual product� Please refer to the product specifications�
Via PoE Switch
Via Power Adapter
■ Power via PoE Adapter
Some APs can be powered via the PoE adapter�
Note: Availability depends on the actual product� Please refer to the product specifications�
PoE Switch
Power Adapter
3
PoE
Adapter
PoE LAN
1
4
Switch
2
