TP-Link AP9650 Installation Manual page 3

Note: Images may differ from your actual product�

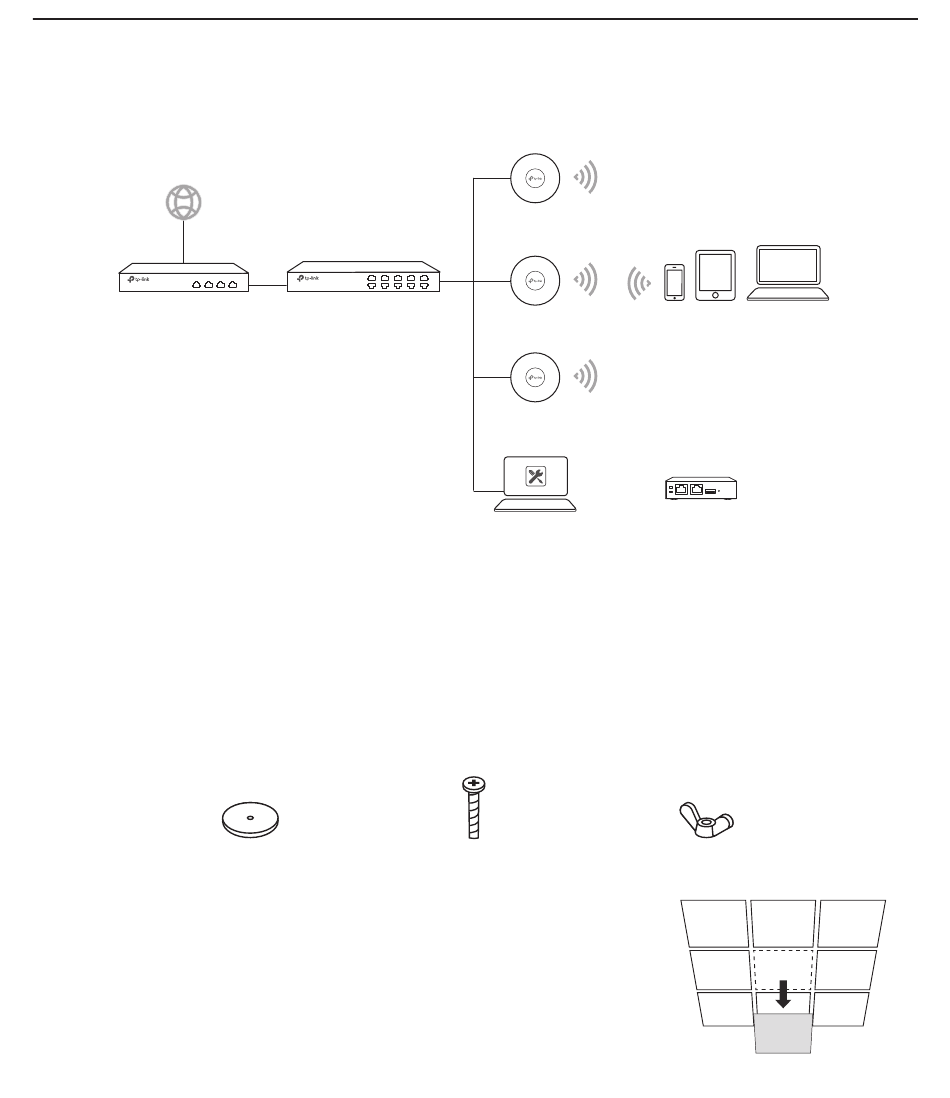

Network Topology
A typical network topology for the AP is shown below�
Internet
Router
APs can be centrally configured and monitored via Controller� You can get the Controller from
https://www.tp-link.com or contact the sales staff�
Hardware Installation
■ Option 1: Ceiling Mounting
Follow the steps below to install the AP with the provided accessories:
Note: The mounting bracket and the accessories (quantity and size) may vary by product�
1
Remove the ceiling tile�
Switch
Washers
AP
AP
AP
Software Controller
Pan-head Screws
1
Clients
Or
Hardware Controller
Wing Nuts
English
