- Page 1 CUSTOM 74’ VINTAGE PHASE Operation Manual...

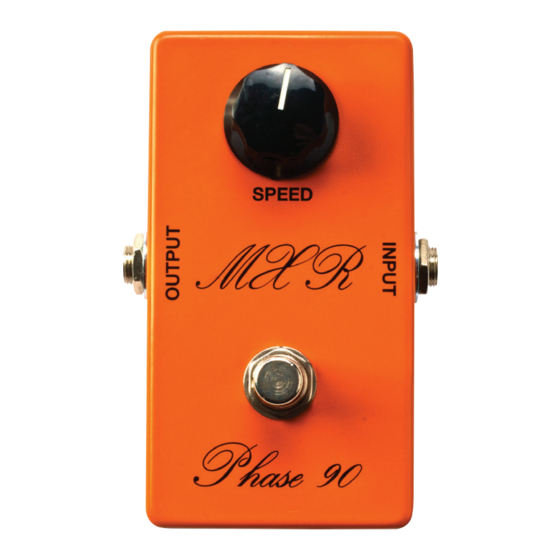

- Page 2 CSP026 VINTAGE PHASE 90 DIRECTIONS SPECIFICATIONS DESCRIPTION • Run a cable from your guitar to the Input Impedance 470 kΩ • Hand-wired circuit board built with Vintage Phase 90’s INPUT jack and run original-spec 1975 components Output Impedance 10 kΩ another cable from the Vintage Phase • Original high-quality Switchcraft Max Input Level -5 dBV 90’s OUTPUT jack to your amplifier. Input/Output jacks and Carling Signal to Noise Ratio* > 95 dB • Set the Vintage Phase 90’s Speed bypass switch Current Draw 2.2 mA control knob to the 12 o’clock position. • Hand-selected FETs, matched to Power Supply 9-volt battery • Turn the effect on by depressing produce deep and rich phasing the footswitch. *All controls at mid position, A-weighted, • All-analog circuitry REF =...
