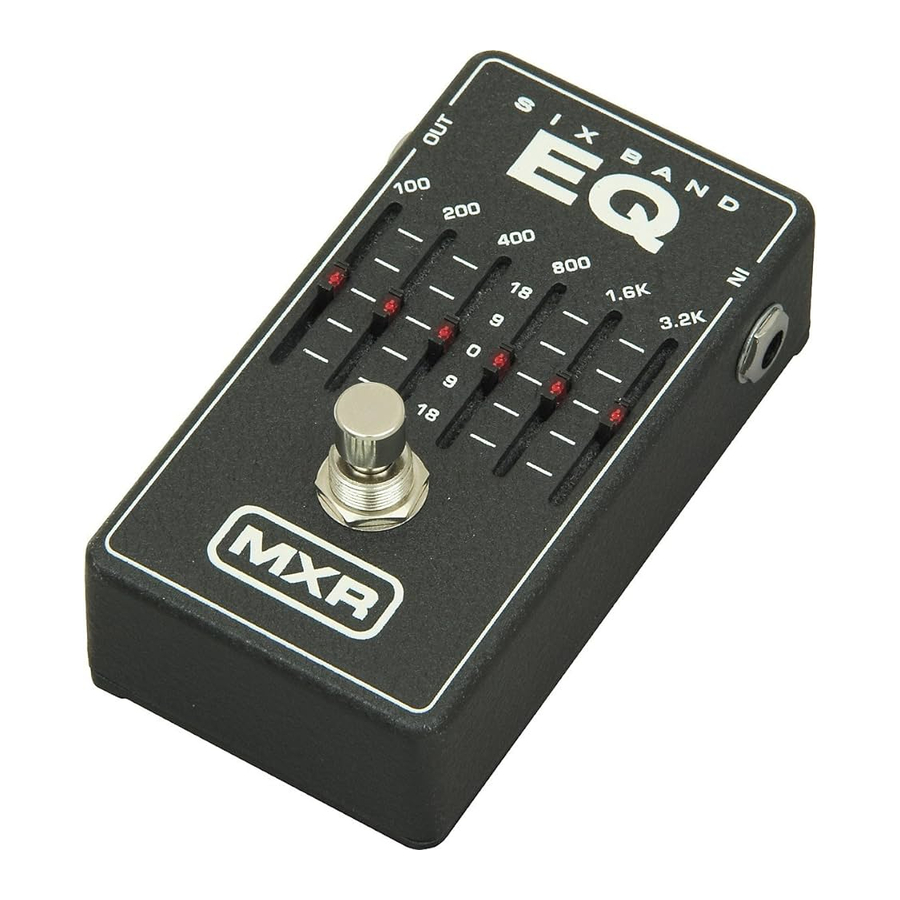

Dunlop MXR SIX BAND GRAPHIC EQ M109 - Music Pedal Manual
DESCRIPTION
- Up to ±18dB of cutting or boosting at six different frequencies
- Easy to see and adjust onstage with glow-in-the-dark graphics and illuminated sliders
POWER
The MXR Six Band EQ is powered by one 9-volt battery (remove bottom plate to install), a 9-volt AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick power supply.
CONTROLS
- SLIDERS boost or attenuate up to ±18dB at six different frequency centers
- FOOTSWITCH toggles effect on/bypass (illuminated red slider LEDs indicate on)
DIRECTIONS
- Run a cable from your guitar to the Six Band EQ's INPUT jack and run another cable from the Six Band EQ's OUTPUT jack to your amplifier.
- Set all sliders to their 0dB position and depress the footswitch to turn the pedal on.
- Experiment with the Six Band EQ's tone-shaping capabilities *A-weighted by moving the sliders up and down to boost and cut various frequencies to hear how this affects the sound of your signal.
SPECIFICATIONS
| Input Impedance | 470 kΩ |
| Output Impedance | 5 kΩ |
| Max Input Level | 0 dBV |
| Max Output Level Noise Floor* | 0 dBV -95 dBV |
| Bypass | Hardwire |
| Current Draw | 3 mA |
| Power Supply | 9 volts DC |
*A-weighted
DUNLOP MANUFACTURING, INC. P.O. BOX 846 BENICIA, CA 94510 U.S.A.
TEL: 1-707-745-2722 FAX: 1-707-745-2658
