CBJ95
CRY BABY
JUNIOR WAH
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRY BABY JUNIOR WAH and is the answer not in the manual?

Questions and answers

Summary of Contents for Dunlop CRY BABY JUNIOR WAH

  • Page 1 CBJ95 CRY BABY JUNIOR WAH ®...

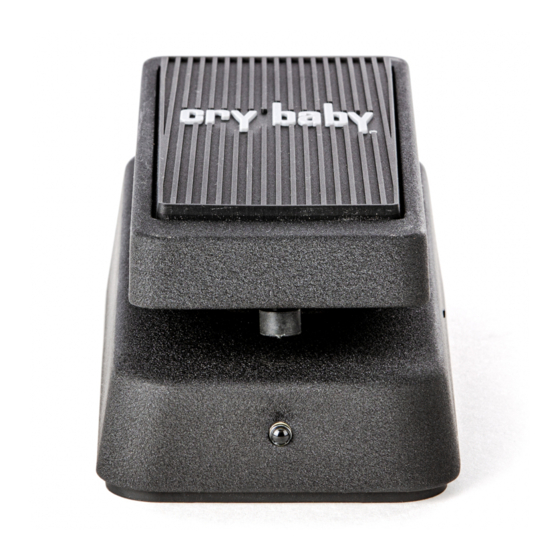

  • Page 2 EXTERNAL CONTROLS 1 VOICING switch selects one of three different frequency ranges 2 FOOTSWITCH toggles effect on/bypass (white LED indicates on) CBJ95 CRY BABY JUNIOR WAH ®...
  • Page 3 BASIC OPERATION POWER The Cry Baby Junior Wah is powered by one 9-volt battery ® (accessed via the bottom of the pedal), the Dunlop ECB003 9-volt adapter, or the DC Brick , Iso-Brick , and Mini Iso-Brick ™ ™ ™...
  • Page 4 SPECIFICATIONS IMPEDANCE Input Impedance 800 kΩ Output Impedance <10 kΩ WAH RANGE SELECTOR Range Selector Switch Position (H towards Heel, L towards Toe) 380 Hz to 2100 Hz 330 Hz to 1800 Hz 270 Hz to 1500 Hz MAXIMUM LEVEL Input -8.0 dBV Output...
