GA6 Board Type Physical Interface

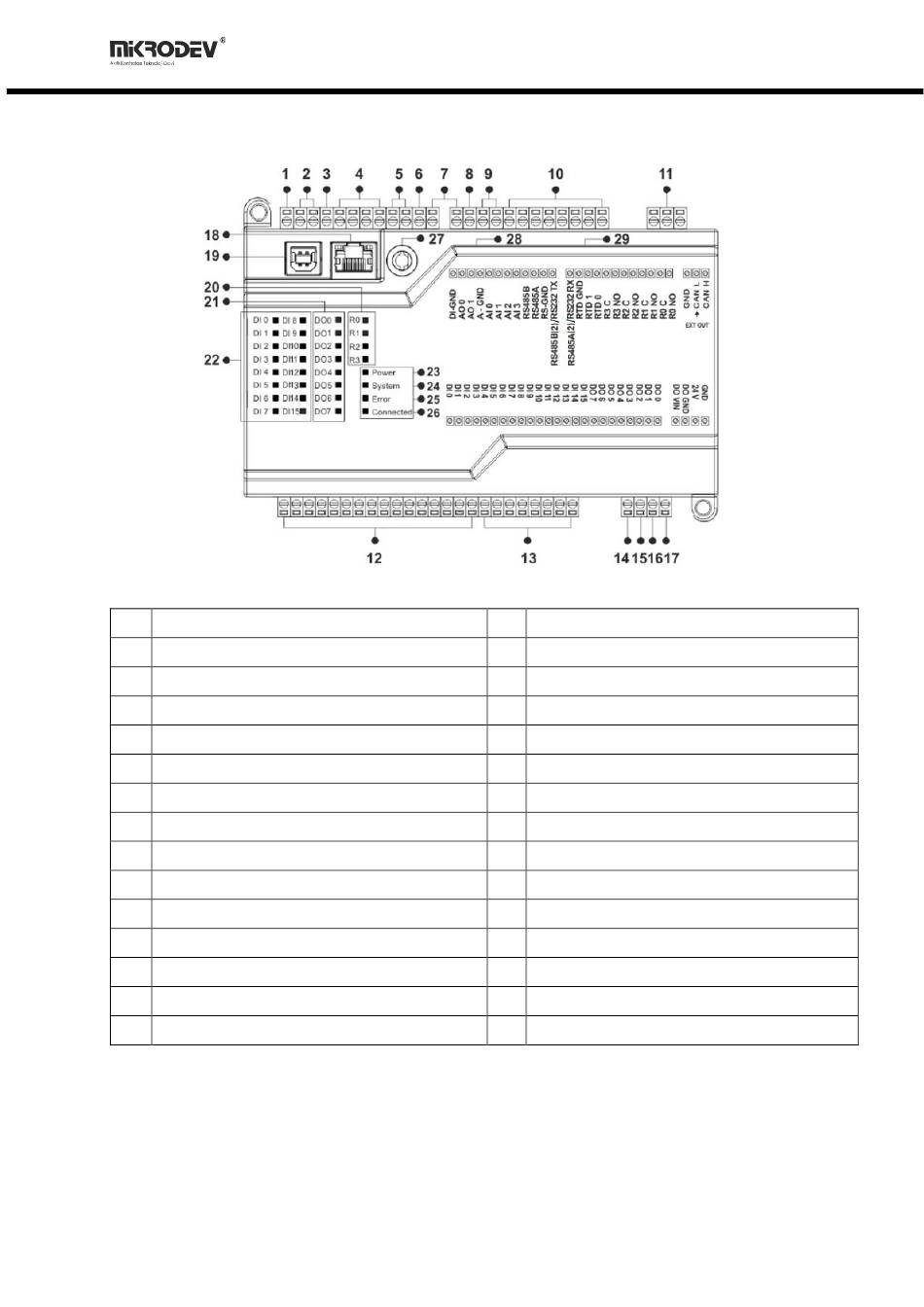

Figure 7 GA6 Board Type Connector and Physical Interface
1
Digital Input GND Connection
2
N/A
3
Analog GND Connection
4
Analog Input Connection
5
RS485 Connections
6
RS232 GND Connections
7
RS232 TX-RX Connections
8
N/A
9
N/A
10
N/A
11
CANBUS Connection
12
Digital Input Connections
13
Digital Output Connections
14
Digital Output Supply(Vin) Connection
15
Digital Output GND Connection
11
16
Device Power (V+) Connection
17
Device Power (V-) Connection
18
Ethernet Port
19
USB Port
20
N/A
21
Digital Output Status Information LED
22
Digital Input Status Information LED
23
System Power LED
24
System Running LED
25
System Error LED
26
Protocol Data Transfer LED
27
Antenna Connection
28
SIM Card Slot
29
SD Card Slot
