- Page 1 QUARTZ-GOLD-5G Compact 5G NR Gigabit Ethernet Industrial Router Range Applicable models: QUARTZ-GOLD-W21-5G (GL) QUARTZ-GOLD-21-5G (GL) Hardware Reference Manual Rev 1.0...
-
Page 2: Table Of Contents
QUARTZ-GOLD-5G Hardware Manual Table of Contents Introduction Antenna Connecters About Siretta Cellular Antenna Connector General Description Wi-Fi Antenna Connector Copyright Information Typical Installation Features Copyright Declarations Physical Interfaces Trademarks Cellular Features Approvals Disclaimer Specifications Physical Definitions Power Power Consumption Ordering Information... -
Page 3: Introduction
WAN or the 5G NR cellular network, with the option of automatic fallback between the two. For complete network configuration, it is necessary to set up the network using the built-in web server for which reference to the companion software manual is required. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 4: About Siretta
Siretta’s distribution partners range from industrial IoT specialists through to global catalogue organisations. Whether “off the shelf” or custom solutions are required, Siretta has a wide portfolio of products to fit many types of application. Siretta’s extensive knowledge and experience in the wireless market allows support of a wide range of customer applications, focusing on frequencies between 400 MHz to 6 GHz. -
Page 5: General Description
3. Backup router which combines the two above modes. The router can switch between the cellular and WAN connections automatically to maintain Internet connectivity should one path fail. The preferred route can be set to cellular or WAN. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 6: Typical Installation
It is recommended that the SIM card necessary for Cellular operation be inserted into the QUARTZ-GOLD-5G first and power applied last. A typical installation will look like this: Figure 1. Typical system diagram Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 7: Features
LAN/WAN Features » 1x Gigabit LAN & 1x Gigabit LAN/WAN (user configurable) » Hardware NAT capable of 2 Gbps wire speed » Auto-MDI/MDIX Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 8: Cellular Features
Access point, Client, and Ethernet bridge modes of operation 20/40/80 MHz channel width » VPN Features » Hardware Crypto Engine delivering 400~500 Mbps IPSec throughput Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 9: Specifications
Parameter Value Input supply voltage 7.5 – 32 V Minimum power supply rating 24 W Recommended Power Supply 12 V @ 2.0 A Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 10: Power Consumption
1x WAN, 1xLAN 360 mA WAN connected to broadband router, LAN connected to PC, PC streaming video (Sky News), Internet connection via Cellular (WAN backup, broadband connection fail) Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... - Page 11 Table 5. SIM Card Reader Characteristics Parameter Value SIM card reader type Draw type with card detection switch SIM card voltage support 1.8 V and 3 V with automatic detection Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...
- Page 12 LAN or a WAN port. Although the maximum speed if any individual port is 1 Gbps, the switching matrix supporting the two ports is capable of 2 Gbps wire speed. Siretta Ltd sales +44(0)118 976 9000...
-
Page 13: Ordering Information
Dual WiFi Compact Industrial 5G Quad Gigabit Ethernet Router QUARTZ-GOLD-W21-5G (GL) – Stock code 61867 QUARTZ-GOLD-W21-5G (GL) + ACCESSORIES - Stock Code 61896 All routers may be ordered with RS485/Modbus serial interface. This is an optional feature. Please contact Siretta sales for details. -
Page 14: Radio Characteristics
Siretta always recommends that the region setting be correctly configured for the country in which the router is being used. - Page 15 The regional setting also correctly applies transmit power and DFS requirements for the country of use. Siretta always recommends that the region setting be correctly configured for the country in which the router is being used.
-
Page 16: Cellular Characteristics
700 MHz Lower SMH 2300 MHz 2600 MHz IMT-E 2300 MHz S-Band 2500 MHz 3500 MHz CBRS Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349... - Page 17 Extended L-Band (EU) 3700 MHz C-Band 3500 MHz C-Band 4700 MHz C-Band Suppoted Unsupported *SA mode only Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349...
- Page 18 2500 MHz 3500 MHz CBRS 3700 MHz C-Band 46 (LAA*) 5200 MHz U-NII-1-4 3500 MHz CBRS Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349...
- Page 19 *HPUE (High Power User Equipment) is a special class of LTE allowed on a single carrier. Because of the higher allowed transmit power, this allows for a greatly increased range for the serving cell. Siretta Ltd sales +44(0)118 976 9000...
-
Page 20: Support Modulation
IMPORTANT: All upload and download speeds are those supported by the QUARTZ- GOLD-5G. Actual speeds achieved will be dependent on the capabilities of the network cell connected to, any network congestion, and the radio link quality. Siretta Ltd sales +44(0)118 976 9000... -
Page 21: Dimensions
Figure 2. QUARTZ-GOLD-5G front view Figure 3. QUARTZ-GOLD-5G earthpoint Figure 4. QUARTZ-GOLD-5G Power, reset and Figure 5. QUARTZ-GOLD-5G Antennas, LEDs and LAN/WAN interfaces SIM Slot 111.1 mm Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -

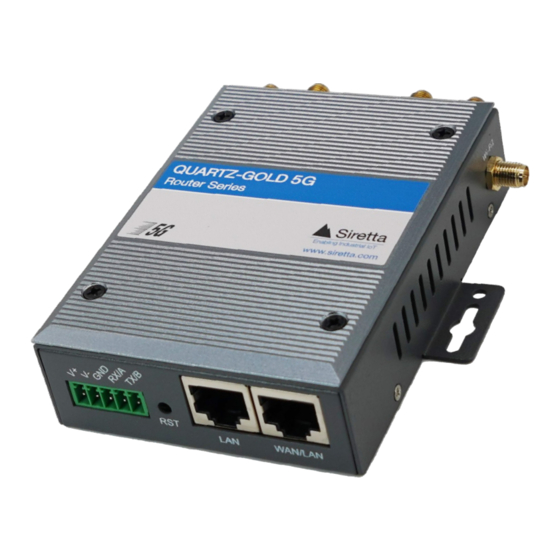

Page 22: Quartz-Gold-5G Images
Figure 7. 3D view of the QUARTZ-GOLD-5G Router Figure 8. Front view of the QUARTZ-GOLD-5G Router Figure 9. Power, Reset, LAN / WAN Interfaces, SIM Slot, Figure 10. Earth Point, Wi-Fi Antenna LED, Cellular Antenna Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... - Page 23 Multi-region power adapter heads Power cable connector 4G/5G antenna x4 2.4 GHz/ 5 GHz Wi-Fi Antenna x2 (optional with Wi-Fi version) RJ-45 network cable Magnetic Cellular Antenna Extenders x4 Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com...
-
Page 24: Status Led
SIM is enabled by the network operator, that the correct APN and password settings have been entered (see QUARTZ-GOLD-5G software manual), and that the antennas have been correctly attached. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 25: Interfaces
QUARTZ-GOLD-5G Hardware Manual Interfaces Use the pictures below to identify the interfaces of the QUARTZ-GOLD-5G: Figure 12. QUARTZ-GOLD-5G interfaces Right Left Bottom Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. -
Page 26: Lan/Wan Port
*Note that connecting an antenna exceeding this gain will invalidate this routers compliance with EN 300328 and is not under any circumstances allowed. Siretta takes no responsibility should higher gain antennas be used with this router. The antennas supplied with the optional accessory kit have a gain of 3 dBi and a uniform radiation pattern in the XY plane. -
Page 27: Rs232/Rs485 Interface
Label Description Power positive Power negative RS232 / RS485 ground RX/A RS232 RX / RS485 A TX/B RS232 TX / RS485 B Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. -
Page 28: Earth Point
The custom reset configuration is set up in the software interface. This is a useful mode of operation to return to known working settings rather than full factory reset if the configuration settings are being experimented with. Siretta Ltd sales +44(0)118 976 9000... -
Page 29: Sim Socket
SIM card holder to release the tray that holds the SIM card and pull out the SIM tray. Place the SIM card into the tray (note polarisation) and insert the SIM tray back into the QUARTZ-GOLD-5G. SIM holder Figure 19. SIM holder Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 30: Antenna Connecters
Note that different countries and different network operators support different frequency bands. If in any doubt, do a cellular site survey with one of Siretta’s cellular network analysers to find which network operators are present and on which frequency bands they operate. -
Page 31: Wi-Fi Antenna Connector
3.0 dBi maximum* *Note that connecting an antenna exceeding this gain will invalidate this routers compliance with EN 300328 and is not under any circumstances allowed. Siretta takes no responsibility should higher gain antennas be used with this router. The antennas supplied with the optional accessory kit have a gain of 3 dBi and a uniform radiation pattern in the XY plane. - Page 32 The power connector is shared with that of the RS232 interface. Power should be connected to V+ and V-. The GND terminal is the ground reference for the RS232 connection and should not be used for the power supply connection. Siretta Ltd sales +44(0)118 976 9000...
-
Page 33: Copyright Information
Trademarks Windows and Microsoft are registered trademarks of Microsoft Corporation. Siretta Ltd is an independent business and is neither affiliated with, nor authorized, sponsored, or approved by, Microsoft Corporation. Snapdragon is a registered trademark of Qualcomm Inc in the United States and other countries. -
Page 34: Approvals
» UKCA - UK Conformity Assessed » » RoHS - Restriction of the Use of Certain Hazardous Substances Compliant » FCC - (TBC) Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 35: Disclaimer
Disclaimer The information contained in this document is proprietary to Siretta Ltd. Siretta Ltd has made every effort to ensure that the information contained within this document is accurate. Siretta Ltd does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred using this information. -
Page 36: Definitions
RHCP Right-handed Circular Polarization Receive Data Subscriber Identity Module Short Message Service Time Division Duplex Transmit Data UMTS Universal Mobile Telecommunications System Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. - Page 37 +44 (0)118 976 9000 sales email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.0 - May 2023...
