- Page 1 QUARTZ-COMPACT 3G & 4G Industrial Router Range Hardware Reference Manual Rev 1.6...
-
Page 2: Table Of Contents
QUARTZ-COMPACT Hardware Manual Table of Contents Page Installation Introduction About Siretta Considerations for Installations Incorporating the Router General Description Power Supply Installation Features Securing the Router Specifications Safety and Product Care QUARTZ-COMPACT Series Interface General Precautions Ordering Information SIM Card Precautions... -
Page 3: Introduction
The QUARTZ-COMPACT is a range of UMTS / LTE routers enabling mobile broadband and machine to machine (M2M) industrial communication. This document is aimed at engineers and describes the electrical characteristics, hardware and software operation of the QUARTZ-COMPACT router. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 4: About Siretta
Siretta’s distribution partners range from industrial IoT specialists through to global catalogue organisations. Whether “off the shelf” or custom solutions are required, Siretta has a wide portfolio of products to fit many types of application. Siretta’s extensive knowledge and experience in the wireless market allows support of a wide range of customer applications, focusing on frequencies between 150 MHz to 6 GHz. -
Page 5: General Description
Hardware Manual General Description The Siretta QUARTZ-COMPACT router series is a range of high speed industrial cellular routers in a compact enclosure. The QUARTZ-COMPACT series is offered in 3G / UMTS and 4G / LTE forms giving reliable, secure and high speed wireless connectivity. -
Page 6: Features
Local and remote management » SNMP network management, NTP support Specifications Table 1. Specifications of QUARTZ-COMPACT Series routers QUARTZ-COMPACT-UMTS (EU) QUARTZ-COMPACT-LTE (EU) 3G frequency band: B8 (900MHz), B1 (2100MHz) B5 (850MHz), B8 (900MHz), B1 (2100MHz) B20 (800MHz), B5 (850MHz), B8 (900MHz),... -
Page 7: Quartz-Compact Series Interface
The QUARTZ-COMPACT Series has the following optional interfaces available: » 1 x GPS Female antenna interface » 1 x Serial port *GPS and Serial options are not available simultaneously on the QUARTZ-COMPACT Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. -
Page 8: Ordering Information
Port Interfaces QUARTZ-COMPACT-11-LTE(EU) = European LTE Industrial Router with 1 x Ethernet LAN and 1 x SIM Port » Interfaces *GPS and Serial options are not available simultaneously on the QUARTZ-COMPACT Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 9: Dimensions
41.8mm 6.25mm 25mm 12mm Ø3.5mm R6mm 3.4mm 68.2mm Figure 2. QUARTZ-COMPACT Series side 25mm 3.4mm Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349 Reading... -
Page 10: Quartz-Compact Series Images

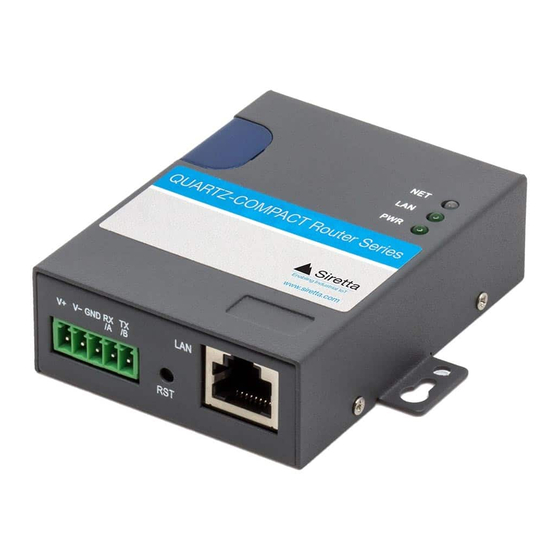

Hardware Manual QUARTZ-COMPACT Images Figure 3. 3D view of the QUARTZ-COMPACT Router Figure 4. Front view of QUARTZ-COMPACT Router Figure 5. QUARTZ-COMPACT Interfaces Figure 6. QUARTZ-COMPACT Antenna Connectors Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 11: Quartz-Compact Series Led Indicators
Dialling Green Solid light Connection OK Green Blinking Data sending Green Dark LAN not connected Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349 Reading... -
Page 12: Interfaces
As standard, the QUARTZ-COMPACT is supplied with 1 x 10/100Mb LAN connection. This port can be used to connect the router directly to a computer to transmit data or for debug testing. Figure 8. QUARTZ-COMPACT LAN Connection LAN Port Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. -
Page 13: Sim Socket
For the 3G / UMTS Model: Frequency Coverage is 900/2100MHz » » For the 4G / LTE Model: Frequency Coverage is 800/850/900/1800/2100/2600MHz *To insert SIM card, remove blue protective shield and insert. Replace shield once SIM is inserted. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 14: Antenna Connectors
If a cable is used to connect the antenna to the router this cable must be a high quality low loss cable. The cable and any connectors used should have 50 Ohms impedance. *Antennas only supplied when QUARTZ-COMPACT is purchased with accessories. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 15: Main Antenna Connector
50 Ohms » The antenna must be capable of handling a minimum of 2W output power » The VSWR should be less than 3:1 to avoid damage to the router Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 16: Gps
Fast Acquisition giving rapid Time-To-First-Fix (TTFF) » Capability to monitor up to 28 channels » Stand Alone and Assisted mode Integrated LNA » Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 17: Power
DC power supply polarity: Centre +ve Power Connector This connector is used for supplying DC power to the router. Figure 12. Power connector Power connector Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 18: Switching The Router On/Off
The QUARTZ-COMPACT router is automatically powered off when power is removed. Restart the QUARTZ-COMPACT Press and hold reset button for at least 5 seconds. Figure 13. Reset button Reset button Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. -
Page 19: Installation
Contact your service provider to obtain the necessary information. If you intend to use SMS in the application, ensure this is included in your » subscription. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 20: Power Supply Installation
» Where access is restricted, it may be easier to connect all the cables to the router prior to placing it in the application. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 21: Safety And Product Care
» We always recommend that you have the SIM card protected by a PIN code. This will ensure that the SIM card cannot be used by an unauthorized person. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 22: Antenna Precautions
RF energy. However, RF energy may affect some malfunctioning or improperly shielded electronic equipment. Vehicle electronic equipment: Check your vehicle manufacturer’s representative to determine if any on board electronic equipment is adequately shielded from external RF energy. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. - Page 23 Before using your router in a vehicle powered by liquefied petroleum gas (such as propane or butane) ensure that the vehicle complies with the relevant fire and safety regulations of the country in which the vehicle is to be used. Siretta Ltd sales +44(0)118 976 9000...
-
Page 24: Safety Recommendations
(20 cm). In case this requirement cannot be satisfied, the system integrator has to assess the final product against the SAR regulation EN 50360. Siretta Ltd sales +44(0)118 976 9000... -
Page 25: Approvals
Approvals CE - European Conformity » RoHS - Restriction of the Use of Certain Hazardous Substances Compliant » » CCC - China Compulsory Certificate Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 26: Disclaimer
The information contained in this document is proprietary to Siretta. Siretta has made every effort to ensure that the accuracy of the information contained within this document is accurate. Siretta does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred by the use of this information. -
Page 27: Definitions
Light Emitting Diode Long-Term Evolution Machine to Machine Communication Network Time Protocol PPPOE Point-to-Point Protocol over Internet R-UIM Removeable User Identity Module Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. - Page 28 +44 (0)118 976 9000 sales email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.6 -October 2022...
