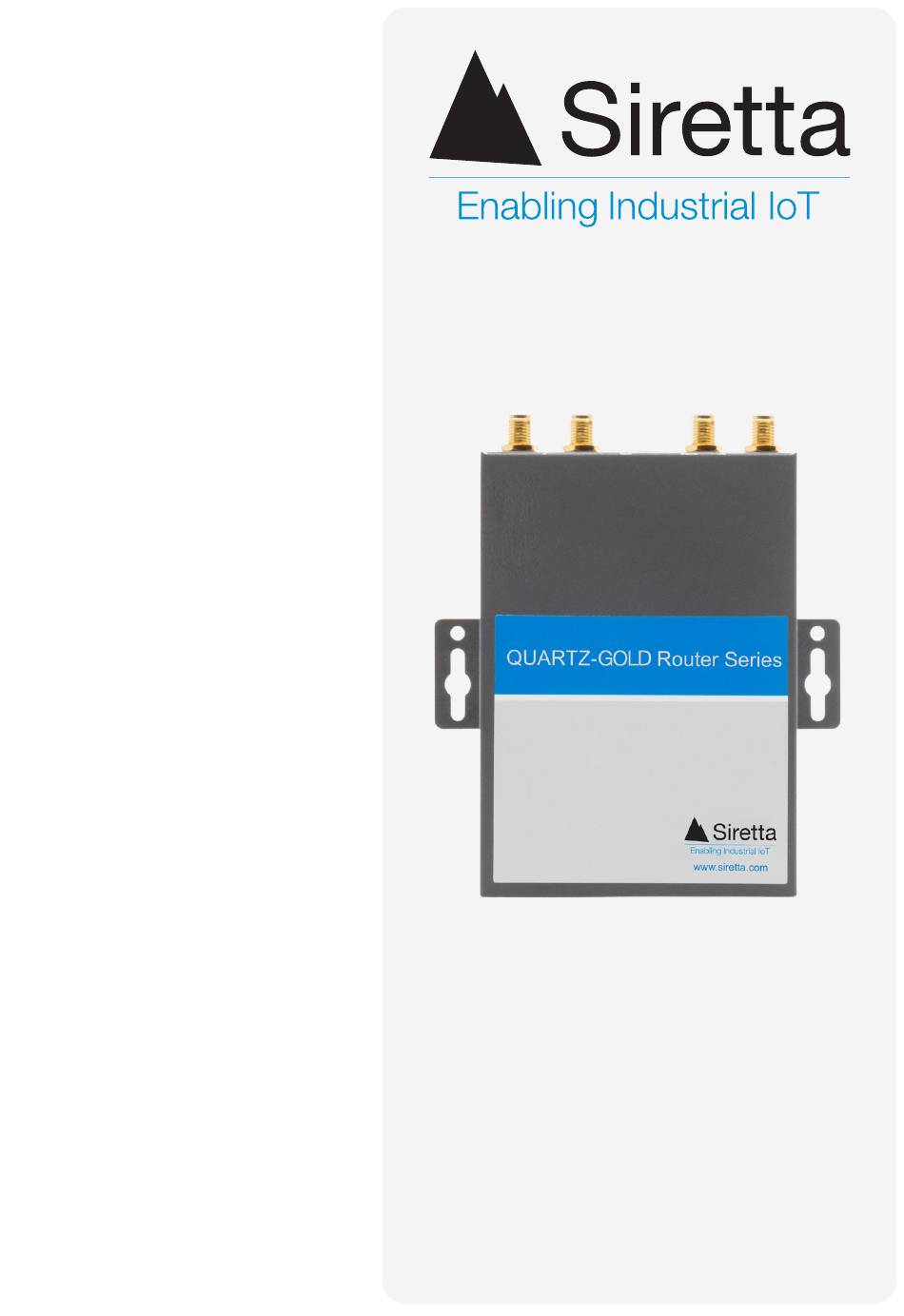

- Page 1 QUARTZ-GOLD Quick Start Guide Rev 1.0...
-
Page 2: What's In The Box

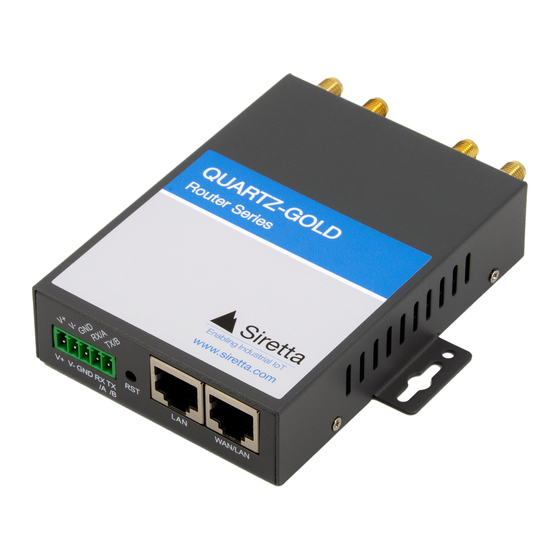

Whats in the Box? This quick start guide is intended for the Siretta QUARTZ-GOLD Series Routers. Common Accessories If you ordered a router with accessories, you will also receive the following items: Ethernet Cable Power Adaptor... - Page 3 Cellular Antenna Power Cable and Connector The QUARTZ-GOLD DIN Rail adapter does not come as a standard part of the accessories kit, but is available separately. Please specify when ordering...
-
Page 4: Optional Accessories
Optional Accessories If you ordered a router with accessories and have opted for either WiFi and/or GPS variants, then you will also receive one or both of the following items: WiFi Blade GPS Antenna (For routers with Wi-Fi antenna) (For routers with GPS option) Additional Items You will require the following items for configuring your router: »... - Page 5 Step 1: Use a paperclip or Sim Card Removal Tool to eject the SIM tray on the router. Step 2: Insert a SIM card into the SIM tray. Close the SIM tray, ensuring it is seated back in place.
- Page 6 Step 3: ANTENNA CONNECTIONS: Screw the cellular antenna to the main antenna connector on the router. Twist the antenna connector clock-wise until the antenna is firmly connected. Connect the 2 Wi-Fi antennas marked “Wi-Fi1” and “Wi-Fi2” by twisting the antenna connector clock-wise until the antenna is firmly connected. If you have a GPS router, connect the GPS antenna to the GPS connector on the router.
- Page 7 Step 4: LAN CONNECTION: Connect one end of the Ethernet cable into the router LAN port, connect the other end of the cable into an Ethernet port on your PC. Step 5: POWER: Plug the green power connector on the power adapter cable into the router as shown below.
- Page 8 Step 6: POWER: Select connector type for your power adaptor depending on your geographical location (UK/EU/USA/AU). Plug the power adaptor to the mains. Step 7: POWER: Switch on the power. See table below for LED indications when router is powered on. Table 1.
- Page 9 Table 1. Router LED indication continued Label Colour Status Indication Green Not connected LAN / WAN Green Blinking Data transfer Green Solid Connected, no data flow Step 8: IP ADDRESS: Obtain the IP address of your router. You can find this on the silver label on the back of your router.
- Page 10 Step 9: APN SET-UP: On successful login, navigate to the Basic Network > Cellular tab. When you arrive at the ‘Cellular Settings’ page, you will need to enter the APN details for the network provider of your SIM card. In the image below, we have used the APN details relevant for “EE”. These being: •...
-
Page 11: Further Information
NOTE - If you cannot access the router GUI, please check your local area network settings. Further Information For more information when using your router, a range of application notes, hardware and software user manuals are available to download. You can request these from your Siretta representative, alternatively these can be downloaded from www.siretta.com... - Page 12 +44 (0)118 976 9000 email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.0...
