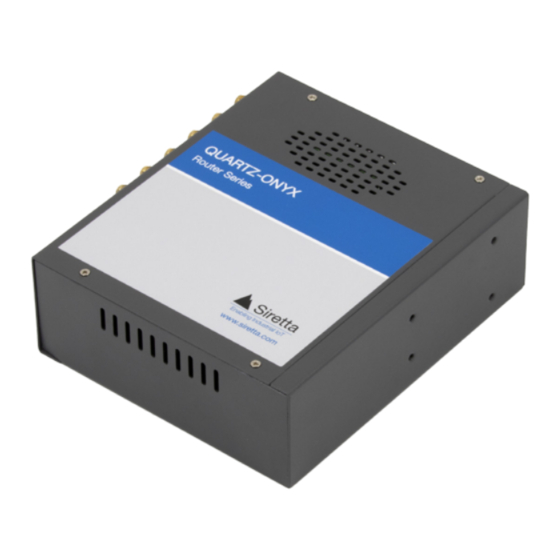

- Page 1 QUARTZ-ONYX 5G NR Industrial Router Quick Start Guide Rev 1.0...
-
Page 2: What's In The Box
Whats in the Box? This quick start guide is intended for the QUARTZ-ONYX router GPS Model Non-GPS Model Common Accessories If you ordered a router with accessories, you will also receive the following items: Ethernet Cable Multi-Head Power Adapter... - Page 3 Cellular Antenna x4 WiFi Antenna x2 GPIO Connector Power Cable and Connector Magnetic Mount Antenna Extender x4 DIN Rail Adapter Wall Mount Bracket NOTE - Both the DIN Rail Adapter and Wall Mount Bracket are supplied with x2 screws.
-
Page 4: Optional Accessories
Optional Accessories If you ordered a QUARTZ-ONYZ with accessories and opted for GPS, then you will also receive a GPS antenna. GPS Antenna Additional Items You will require the following items for configuring your router: » SIM that is subscribed to a 5G service with APN details »... - Page 5 Step 1: SIM: Use a screwdriver to open the SIM cover on your router. Step 2: SIM: Insert a SIM card fully into the SIM slot. Close the SIM cover, ensuring it is screwed back into place. (SIM slot 1 is in use illustrated below)
- Page 6 Step 3: ANTENNA CONNECTIONS: Screw in the 4 magnetic cellular antenna extensions onto the router. Twist the connector clock-wise until the extension is firmly connected. Repeat process for the 2 WiFi antennas onto the router (the cellular antennnas must be attached to the magnetic antenna extension). If you have a GPS router, connect the GPS antenna to the GPS connector on the router.
- Page 7 Step 4: LAN CONNECTION: Connect one end of the Ethernet cable into the router LAN port, connect the other end of the cable into an Ethernet port on your PC. Step 5: POWER: Plug in the green power connector on the power adapter cable into the router as shown below.
- Page 8 Step 6: POWER: Select connector type for your power adaptor depending on your geographical location (UK/EU/USA/AU). Plug the power adaptor to the mains. Step 7: POWER: Switch on the power. See table below for LED indications when router is powered on. Table 1.
- Page 9 Step 8: IP ADDRESS: Obtain the IP address of your router. You can find this on the silver label on the back of your router. Type the IP address of your router into your PC browser. When prompted for your user name and password use the following: User name: admin Password: admin These credentials are factory defaults.
- Page 10 Step 9: APN SET-UP: On successful login, navigate to the Basic Network > Cellular tab. When you arrive at the ‘Cellular Settings’ page, you will need to enter the APN details for the network provider of your SIM card. In the image below, we have used the APN details relevant for “EE”. These being: •...
-
Page 11: Further Information
NOTE - If you cannot access the router GUI, please check your local area network settings. Further Information For more information when using your router, a range of application notes, hardware and software user manuals are available to download. You can request these from your Siretta representative, alternatively these can be downloaded from www.siretta.com... - Page 12 +44 (0)118 976 9000 email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.0...
