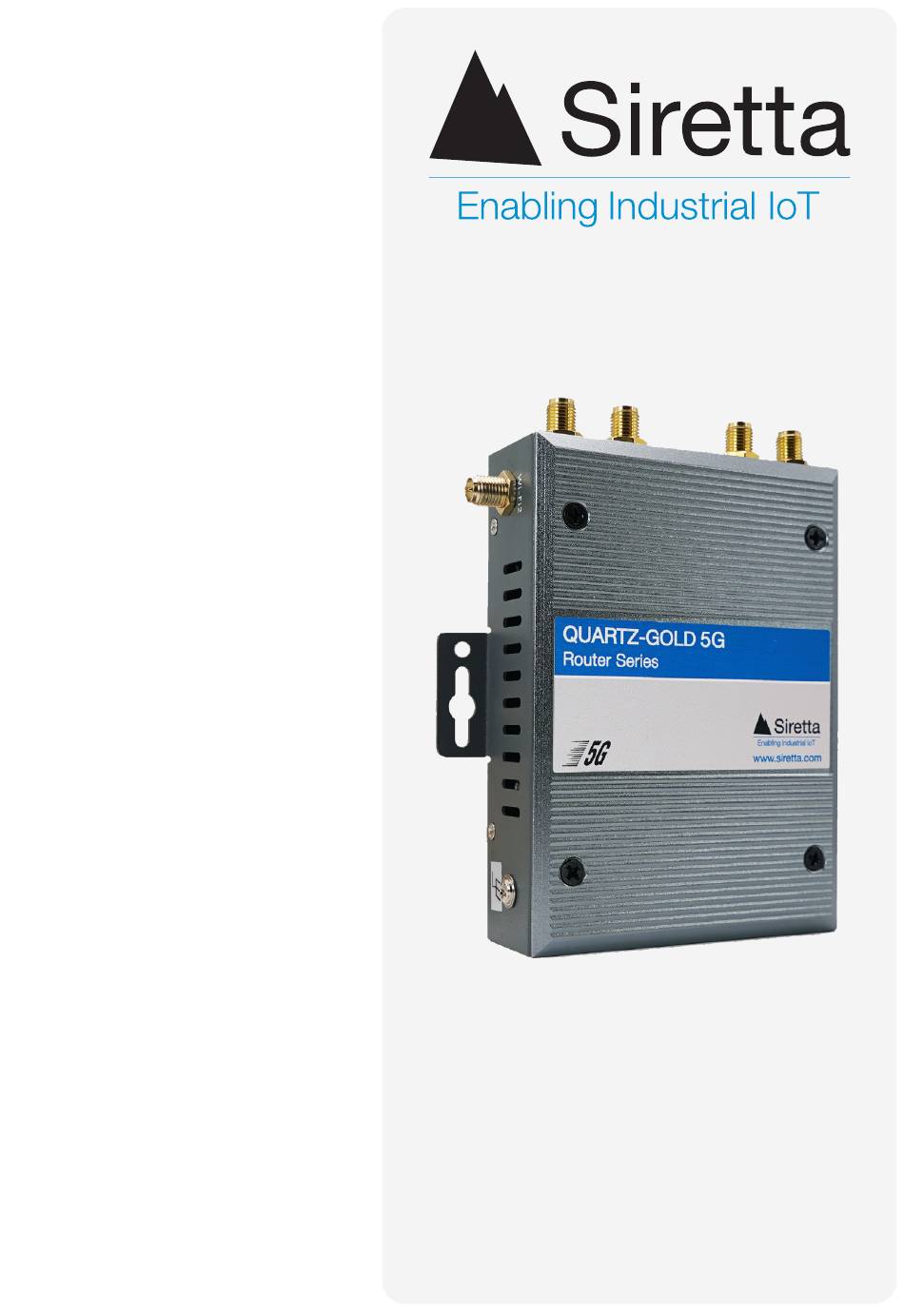

- Page 1 QUARTZ-GOLD 5G NR 5G NR Industrial Router Quick Start Guide Rev 1.0...
-
Page 2: What's In The Box
Whats in the Box? This quick start guide is intended for the Siretta QUARTZ-GOLD 5G Series Routers. Common Accessories If you ordered a router with accessories, you will also receive the following items: Ethernet Cable Power Adaptor... - Page 3 Cellular Antenna x4 Power Cable and Connector Magnetic Mount Antenna Extender x4 The QUARTZ-GOLD 5G DIN Rail adapter does not come as a standard part of the accessories kit, but is available separately. Please specify when ordering...
-
Page 4: Optional Accessories
Optional Accessories If you ordered a router with accessories and have opted for Wi-Fi, then you will also receive the following items: WiFi Blade x2 (For routers with Wi-Fi antenna) Additional Items You will require the following items for configuring your router: »... - Page 5 Step 1: Use a paperclip or Sim Card Removal Tool to eject the SIM tray on the router. Step 2: Insert a SIM card into the SIM tray. Close the SIM tray, ensuring it is seated back in place.
- Page 6 Step 3: Screw the cellular antennas to the main antenna connectors on the router. Twist the antenna connector clock-wise until the antenna is firmly connected. It is recommended to use the supplied magnetic mounts for maximum cellular performance. Connect the 2 Wi-Fi antennas marked “Wi-Fi1” and “Wi-Fi2” by twisting the antenna connector clock-wise until the antenna is firmly connected.
- Page 7 Step 4: LAN CONNECTION: Connect one end of the Ethernet cable into the router LAN port, connect the other end of the cable into an Ethernet port on your PC. Step 5: POWER: Plug the green power connector on the power adapter cable into the router as shown below.
- Page 8 Step 6: POWER: Select connector type for your power adaptor depending on your geographical location (UK/EU/USA/AU). Plug the power adaptor to the mains. Step 7: POWER: Switch on the power. See table below for LED indications when router is powered on. Table 1.
- Page 9 Step 8: IP ADDRESS: Obtain the IP address of your router. You can find this on the silver label on the back of your router. Type the IP address of your router into your PC browser. When prompted for your user name and password use the following: User name: admin Password: admin These credentials are factory defaults.
-
Page 10: Further Information
NOTE - If you cannot access the router GUI, please check your local area network settings. Further Information For more information when using your router, a range of application notes, hardware and software user manuals are available to download. You can request these from your Siretta representative, alternatively these can be downloaded from www.siretta.com... - Page 11 +44 (0)118 976 9000 email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.0...
