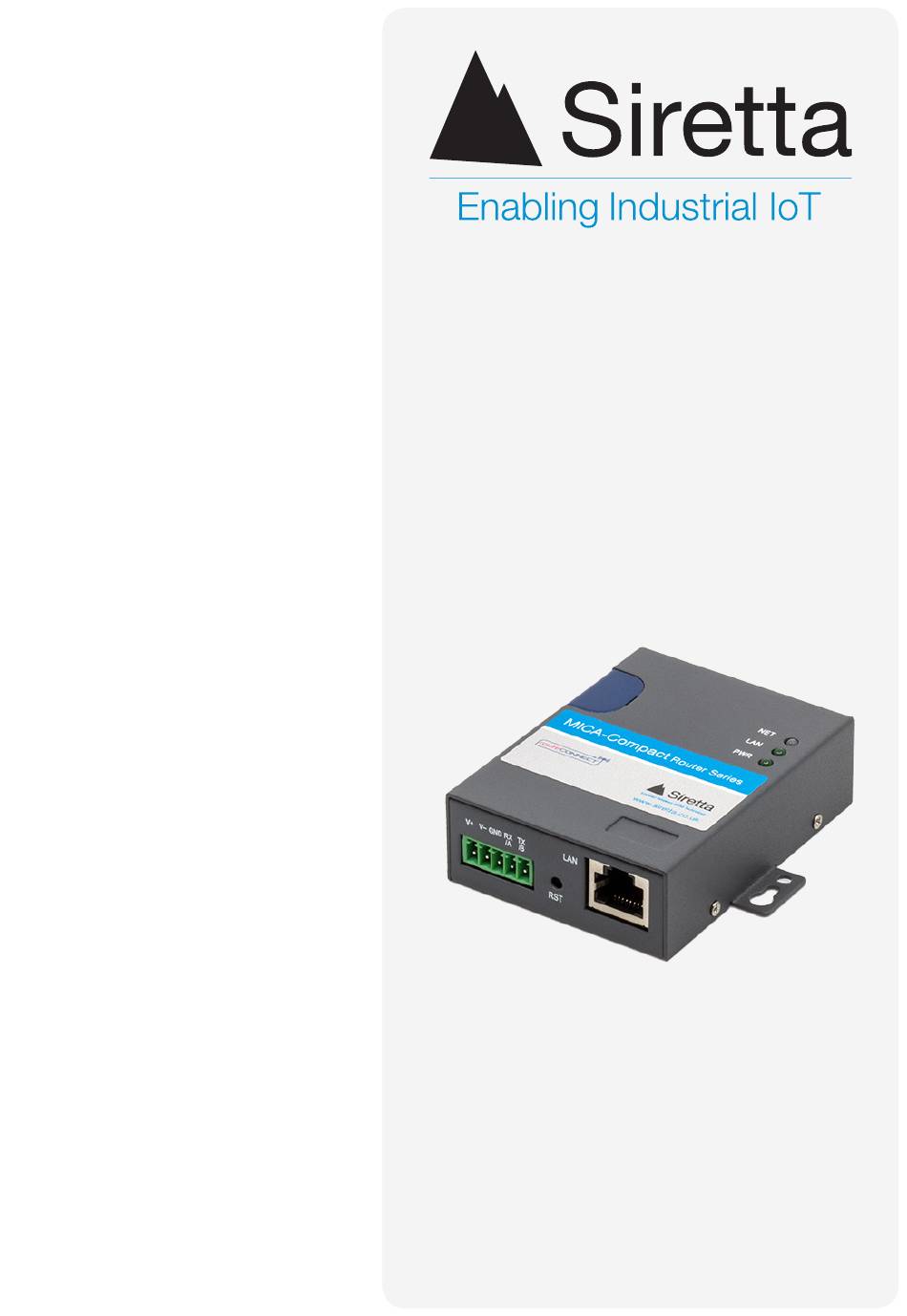

- Page 1 MICA-Compact Series 3G & 4G Industrial Router Range Hardware Reference Manual Rev 1.1...
-
Page 2: Table Of Contents
Safety and Product Care MICA-Compact Series Interface General Precautions Ordering Information SIM Card Precautions Dimensions Antenna Precautions MICA-Compact Series Images Exposure to RF Energy MICA-Compact Series LED Indicators Safety Recommendations Interfaces Approvals LAN Port Disclaimer SIM Socket Definitions SIM Requirements... -
Page 3: Introduction
This document is intended to provide guidance when adding a router from the MICA- Compact Series to your system. The MICA-Compact Series is a range of UMTS / LTE routers enabling mobile broadband and machine to machine (M2M) industrial communication. -
Page 4: About Siretta
10 years. We supply our products globally to many of the world’s leading organisations. Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of antenna, RF cable assemblies and modems to fit your application. -
Page 5: General Description
The Siretta MICA-Compact router series is a range of high speed industrial cellular routers in a compact enclosure. The MICA-Compact series is offered in 3G / UMTS and 4G / LTE forms giving reliable, secure and high speed wireless connectivity. -
Page 6: Features
» SNMP network management, NTP support WAN supports PPOE, Static IP DHCP Client (with 1 x LAN option) » Specifications Table 1. Specifications of MICA-Compact Series routers MICA-Compact UMTS MICA-Compact LTE 3G frequency band: 850, 900, 1900, 2100MHz 850, 900, 1900, 2100MHz... -
Page 7: Mica-Compact Series Interface
MICA-Compact Series Interface Standard Router Features Hardware The MICA-Compact Series routers come with the following interfaces: » 1 x 10/100Mb Ethernet LAN » 1 x 3G SMA Female antenna interface » 2 x 4G SMA Female antenna interface » 1 x standard SIM/R-UIM interface 1 x standard DC power interface »... -
Page 8: Ordering Information
» MICA-Compact-G11-LTE = European LTE Industrial Router with 1 x Ethernet LAN and 1 x SIM Port Interfaces, with GPS *GPS and Serial options are not available simultaneously on the MICA-Compact. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 9: Dimensions
Dimensions All dimensions are shown in mm. Figure 1. MICA-Compact Series front - dimensions Figure 2. MICA-Compact Series side - dimensions Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349... -
Page 10: Mica-Compact Series Images
MICA-Compact Series Images Figure 3. 3D view of the MICA-Compact Router Figure 4. Front view of MICA-Compact Router Figure 5. MICA-Compact Interfaces Figure 6. View of MICA-Compact Antennas Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 11: Mica-Compact Series Led Indicators
Dialling Green Solid light Connection OK Green Blinking Data sending Green Dark LAN not connected Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349 Reading... -
Page 12: Interfaces
Interfaces LAN Port As standard, the MICA-Compact Series is supplied with 1 x 10/100Mb LAN connection. This port can be used to connect the router directly to a computer to transmit data or for debug testing. Figure 8. MICA-Compact LAN Connection... -
Page 13: Sim Socket
SIM Socket The MICA-Compact Series supports fixed SIMs locked to a network and roaming SIMs which can operate on more than one network within the home country. This allows for least cost routing for roaming mobile data and machine to machine applications where signal strength is variable in any given area and network selection is required. -
Page 14: Antenna Connectors
If a cable is used to connect the antenna to the router this cable must be a high quality low loss cable. The cable and any connectors used should have 50 ohms impedance. *Antennas only supplied when MICA-Compact is purchased with accessories. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 15: Main Antenna Connector
50 ohms » The antenna must be capable of handling a minimum of 2W output power » The VSWR should be less than 3:1 to avoid damage to the router Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 16: Gps
Fast Acquisition giving rapid Time-to-First-Fix (TTFF) Capability to monitor up to 28 channel » » Stand Alone and Assisted mode » Integrated LNA Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 17: Power
Power Power Connector This connector is used for supplying DC power to the router. Figure 12. Power connector Power connector Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. GB163 04 0349... -
Page 18: Power Supply Requirements
Power Supply Requirements A DC power supply must be connected to the power input. Table 3. Characteristics of power input MICA-Compact Series Idle: 165mA @ 12V DC Communicating: 195mA @ 12VDC Power supply: 5-32 VDC DC power supply polarity: Centre +ve... -
Page 19: Installation
Connections of components to MICA-Compact Series routers: The system integrator is responsible for the final system solution. If external components are incorrectly designed or installed it may cause radiation limits to be exceeded. -
Page 20: Power Supply Installation
Where access is restricted, it may be easier to connect all the cables to the router » prior to placing it in the application. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com... -
Page 21: Safety And Product Care
General Precautions » The MICA-Compact series routers are a standalone item designed for indoor use only. For use outside it must be installed in a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified. -
Page 22: Antenna Precautions
RF energy. However, RF energy may affect some malfunctioning or improperly shielded electronic equipment. Vehicle electronic equipment: Check your vehicle manufacturer’s representative to determine if any on board electronic equipment is adequately shielded from external RF energy. Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. - Page 23 Before using your router in a vehicle powered by liquefied petroleum gas (such as propane or butane) ensure that the vehicle complies with the relevant fire and safety regulations of the country in which the vehicle is to be used. Siretta Ltd sales +44(0)118 976 9000...
-
Page 24: Safety Recommendations
(20 cm). In case this requirement cannot be satisfied, the system integrator has to assess the final product against the SAR regulation EN 50360. Siretta Ltd sales +44(0)118 976 9000... -
Page 25: Approvals
Approvals CE - European Conformity » RoHS - Restriction of the Use of Certain Hazardous Substances Compliant » » CCC - China Compulsory Certificate Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com... -
Page 26: Disclaimer
The information contained in this document is proprietary to Siretta. Siretta has made every effort to ensure that the accuracy of the information contained within this document is accurate. Siretta does not make any warranty as to the information contained within this document and does not accept any liability for any injury, loss or damage of any kind incurred by the use of this information. -
Page 27: Definitions
Machine to Machine Communication Radio Frequency Subscriber Identity Module Subminiature Version A UMTS Universal Mobile Telecommunications System Virtual Private Network VSWR Voltage Standing Wave Ratio Siretta Ltd sales +44(0)118 976 9000 Basingstoke Road email sales@siretta.com Registered in England No. 08405712 Spencers Wood www.siretta.com VAT Registration No. - Page 28 +44 (0)118 976 9000 sales +44 (0)118 976 9020 email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.1 - August 2019...
