Summary of Contents for SIMPLIHOME 3AXCCRL-09

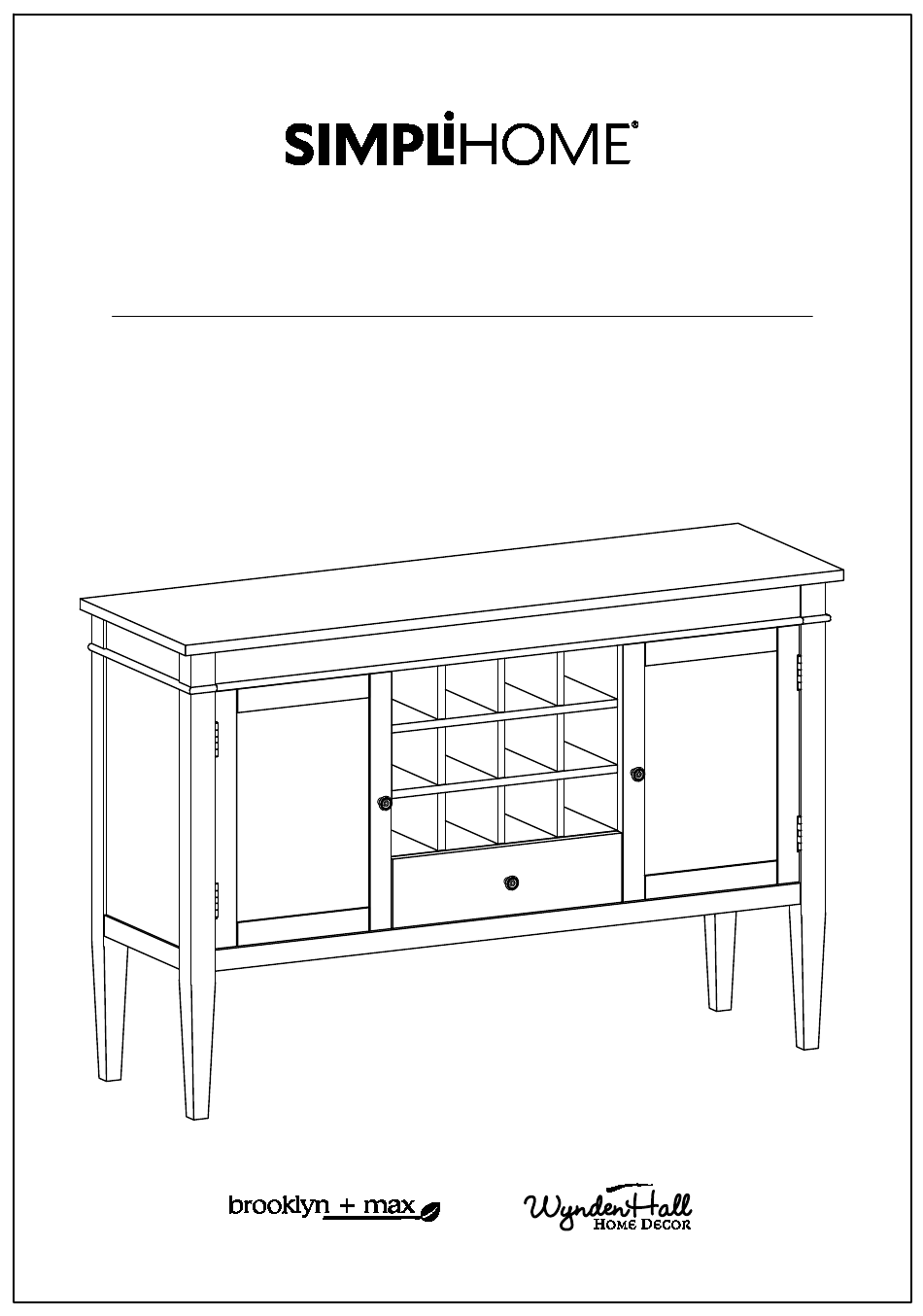

- Page 1 Carlton / Richland / Sterling Sideboard Buffet and Wine Rack Model # 3AXCCRL-09...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # 3AXCCRL-09 Part Description BOTTOM FRAME LEFT SHELF QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE RIGHT SHELF QTY 1 QTY 1 QTY 1 DOOR (L&R Same) LEFT DIVIDER RIGHT DIVIDER QTY 2 QTY 1...
-
Page 8: Drawer Bottom
Pre-Assembly Information Model # 3AXCCRL-09 Part Description BOTTOM BACK PANEL FRONT BAR BOTTOM SHELF QTY 1 QTY 1 QTY 1 DIVIDER TOP SHELF MIDDLE SHELF QTY 9 QTY 1 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1... - Page 9 Pre-Assembly Information Model # 3AXCCRL-09 Hardware Description CAM LOCK PIN ALLEN KEY BOLT ALLEN KEY SCREW HANDLE CAM LOCK M4 X 25 mm M6 X 30mm M6 X 30mm QTY 4 SETS QTY 3 SETS QTY 16 QTY 26 PHILLIPS SCREW...
- Page 10 Components - Key Diagram Model # 3AXCCRL-09...
- Page 11 Assembly Model # 3AXCCRL-09 Step 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front M . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides NL , NR . 3. Insert 2 Cam Locks 3 into guide holes on each Drawer Side NL , NR .
- Page 12 Assembly Model # 3AXCCRL-09 Step 3 1. Align Drawer Back O with Drawer Bottom P and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through guide holes on each Side NL , NR .
- Page 13 Assembly Model # 3AXCCRL-09 Step 5 1. Attach Dividers EL , ER to Bottom Shelf I using 6 Allen Key Screws 2 (3 Screws on each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 14 Assembly Model # 3AXCCRL-09 Step 6 1. Insert 36 Dowels 7 into pre-drilled holes on 9 Dividers L (4 dowells on each Divider). 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 15 Assembly Model # 3AXCCRL-09 Step 7 1. Align Dowels 7 on Dividers L with pre-drilled holes on Top Shelf J . 2. Attach Top Shelf J to Dividers EL , ER using 4 Allen Key Screws 2 (2 Screws on each Divider ).
- Page 16 Assembly Model # 3AXCCRL-09 Step 8 1. Attach Dividers EL , ER to Bottom Shelf B using 6 Allen Key Screws 2 (3 Screws on each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 17 Assembly Model # 3AXCCRL-09 Step 9 1. Attach Bottom Shelf B and Front Bar H to Sides DL , DR using 8 Allen Key Bolts 1 ( 4 Bolts on each Side ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 18 Assembly Model # 3AXCCRL-09 Step 10 1. Attach Top A to Sides DL , DR using 6 Allen Key Bolts 1 ( 3 Bolts on each Side ). 2. Attach Top A to Front Bar H using 2 Allen Key Bolts 1 .
- Page 19 Assembly Model # 3AXCCRL-09 Step 11 Warning Label NOTE: The screwdriver is not included in the hardware pack. 1. Attach the Back Panels GL , GR , G1 , G2 to back frame of cabinet using Phillips Screws Round Head 6 through guide holes.
- Page 20 Assembly Model # 3AXCCRL-09 Step 12 NOTE: The screwdriver is not included in the hardware pack. 1. Attach hinges on Doors F to Sides DL , DR using Phillips Screws 10 into guide holes. 2. Attach Magnet Plates 8 to bottom corner of Door F using Phillips Screws 11 into guide holes on Doors F .
- Page 21 Assembly Model # 3AXCCRL-09 Step 13 1. Use Shelf Supports 9 for each Shelf CL , CR in desired location. 2. 2 Shelf Supports 9 may be used on back top of each Shelf CL , CR as a tipping restraint.
- Page 22 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 14 NOTE: The screwdriver is not included in the hardware pack.
- Page 23 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
