Summary of Contents for SIMPLIHOME 3AXCCRL-11RNAB

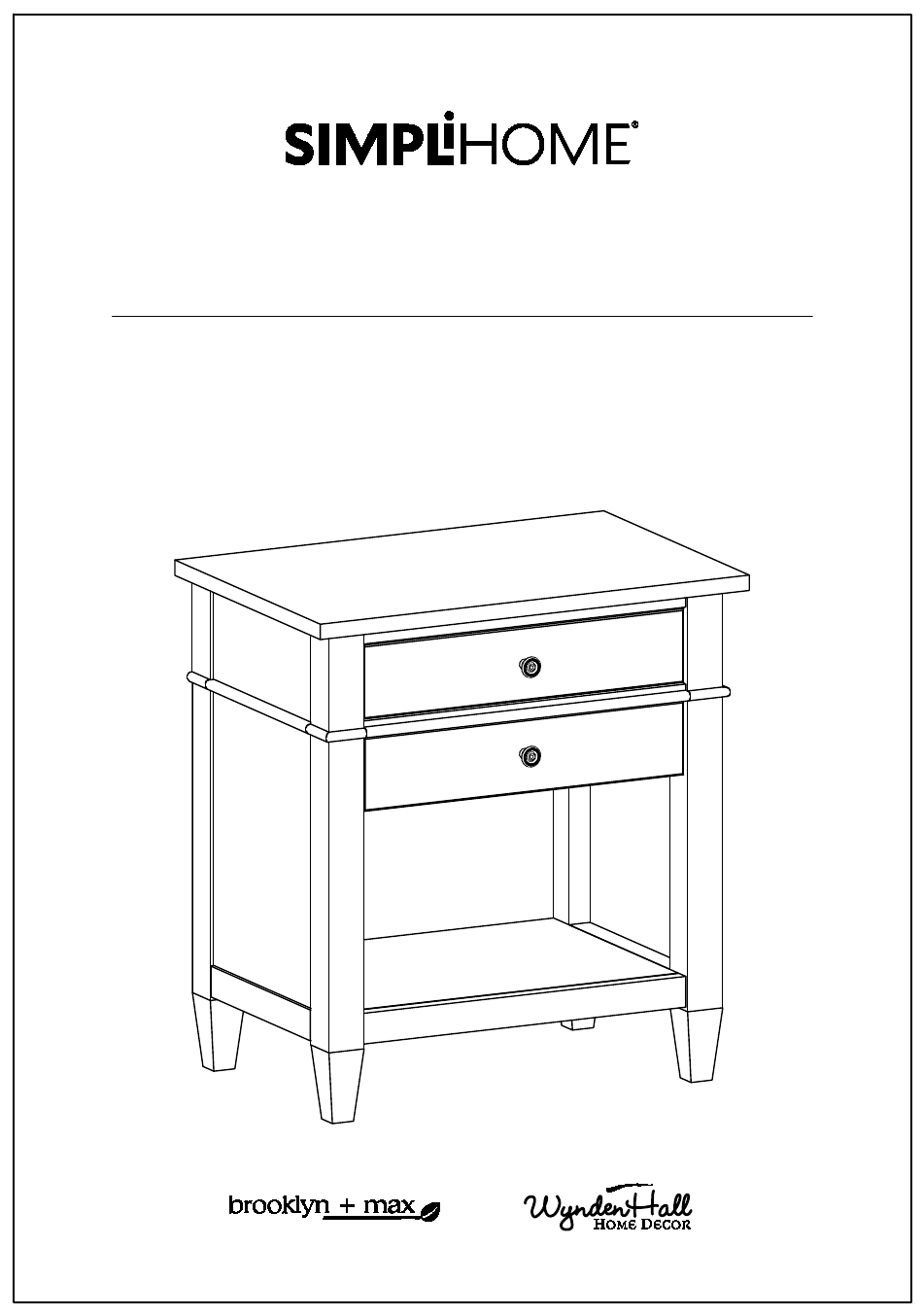

- Page 1 Carlton / Richland / Sterling Bedside Table Model # 3AXCCRL-11RNAB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # 3AXCCRL-11RNAB Part Description MIDDLE FRAME BOTTOM SHELF QTY 1 QTY 1 QTY 1 LEFT SIDE RIGHT SIDE TOP BACK PANEL QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE BOTTOM BACK PANEL QTY 2...
-
Page 8: Pre-Assembly Information
Pre-Assembly Information Model # 3AXCCRL-11RNAB Hardware Description CAM LOCK PIN ALLEN KEY BOLTS ALLEN KEY SCREW M6 X 30mm M6 X 30mm CAM LOCK QTY 8 SETS QTY 12 QTY 8 PHILLIPS SCREW HANDLE ROUND HEAD ALLEN KEY M4 X 15mm... - Page 9 Components - Key Diagram Model # 3AXCCRL-11RNAB...
- Page 10 Assembly Model # 3AXCCRL-11RNAB Step 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Drawer Front F . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides GL , GR . 3. Insert 2 Cam Locks 3 into guide holes on each Drawer Side GL , GR .
- Page 11 Assembly Model # 3AXCCRL-11RNAB Step 3 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through guide holes on each Side GL , GR .
- Page 12 Assembly Model # 3AXCCRL-11RNAB Step 5 1. Attach Bottom Shelf B and Middle Frame C to Sides DL , DR using 8 Allen Key Bolts 1 ( 4 Bolts / each Side ). 2. Use Allen Key 5 to tighten bolts. Do not over-tighten.
- Page 13 Assembly Model # 3AXCCRL-11RNAB Step 6 1. Attach Top A to Sides DL , DR using 4 Allen Key Bolts 1 ( 2 Bolts / each Side ). 3. Use Allen Key 5 to tighten screws and bolts. Do not over-tighten.
- Page 14 Assembly Model # 3AXCCRL-11RNAB Step 7 1. Attach the Back Panels E1 , E2 to back frame of cabinet using Phillips Screws Round Head 6 through guide holes. 2. Use Phillips screwdriver to tighten screws. Step 8 1. Insert assembled drawers into glides on assembled table.
