Summary of Contents for Fortinet FortiCam MC51

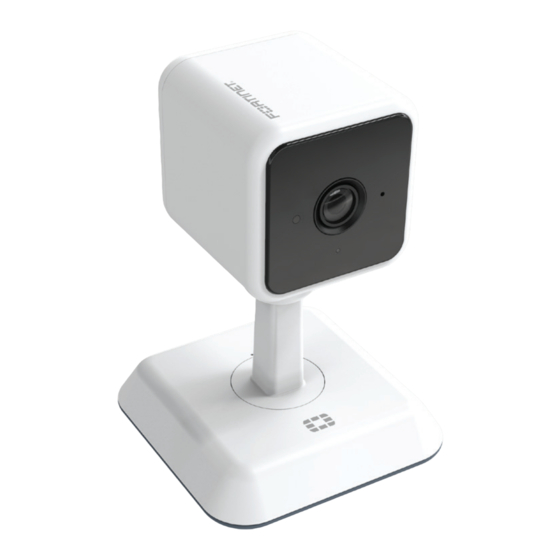

- Page 1 FortiCam MC51 QuickStart Guide...
- Page 2 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied.
-
Page 3: Table Of Contents
Table of Contents Package Contents Hardware Installation Status LEDs Buttons Camera Connection Technical Specifications Register for Support Cautions and Warnings Regulatory Notices... -
Page 4: Package Contents
Package Contents Camera Box Accessory Box • FortiCam camera • 4x screws and anchors • QuickStart Guide • Mounting template Page 1... -
Page 5: Hardware Installation
Hardware Installation Caution: Only remove the protective wrap from the lens once installation is complete to avoid damage and scratches. Before installing surveillance cameras, design your system carefully. Verify location and coverage of each camera. Decide whether to run cables through the wall/ceiling (drilling required), or along the wall/ceiling through the notch on the base. - Page 6 To mount the camera to a wall or ceiling Separate the base cover at the back notch using a coin or a wide flathead screwdriver. Push the rubber feet out with a screwdriver or with the supplied screws to expose the mounting holes. Place the mounting template on the ceiling or wall and mark the drilling positions for each mounting screw.
- Page 7 materials allow using the screws without plugs. Connect the Ethernet cable and route it through the opening at the back of the base or directly through a hole in the wall or ceiling. Click the base cover back into place. Insert the SD card into the SD card slot at the bottom of the camera head, if onboard storage is preferred.
-
Page 8: Status Leds
Status LEDs Note: Status LEDs can be disabled through software. Operation Color Solid Flashing Green Connected via Firmware updating Ethernet Blue Connected via Wi-Fi Cyan Connected via Bluetooth pairing mode Bluetooth Amber Warning Fatal error Bootup Sequence Hardware initialization White Bootloader Cyan Bluetooth pairing mode... -
Page 9: Buttons
Buttons Reset Reset Button Operation Press Time Action < 5 seconds No change in color Reboot 5-10 Flashing Cyan Reboot + seconds Bluetooth pairing mode > 10 Alternating Green/Blue Factory reset+ seconds Bluetooth pairing mode Page 6... -
Page 10: Camera Connection
Camera Connection Caution: This device complies with IEEE 802.3af PoE specification. Do not use any PoE injectors that are not IEEE 802.3af compliant as they may damage your device. Attention: Cet appareil est conforme à la spécification PoE IEEE 802.3af. N’utilisez pas d’injecteurs PoE non conformes à... - Page 11 To use Bluetooth to connect the camera Bluetooth pairing mode is active after a factory reset. You can also activate it via the camera reset button or software. Power on or push the reset button. Wait until the status LED indicates Bluetooth pairing mode. Use the FortiRecorder Mobile app (available from the Google Play Store for Android or Apple App Store for iOS) to pair with the camera.
-
Page 12: Technical Specifications
Technical Specifications Camera Format Mini Cube, day/night, indoor Sensor Type 5 MP, 1/2.8” low light CMOS Iris F2.0/fixed Focal Length f=3.16 mm View Angle H:102°, V:72°, D:132° Minimum Illumination 0.05 Lux (color) @ F2; 0.01 Lux (B/W) @ F2 HDR (>80 dB) Network Interface RJ-45 Ethernet 10/100 Mbps IRLED/IRC... - Page 13 Wi-Fi/Bluetooth Number of Antennas 1 internal Peak Antenna Gain 2.18 dBi for 2.4 GHz, 4.5 dBi for 5 GHz Frequency of Radio 1 2.4 GHz b/g/n/ or 5 GHz a/n/ac Bluetooth Features BLE V5.0 2.18 dBi @ 2.4 GHz Dimensions Height x Width x 5.5 x 3.8 x 3.8’’(139 x 96 x 96 mm) Length...
-
Page 14: Register For Support
Register for Support Register your Fortinet product to receive: • Technical support • New product features • Protection from new threats Vous devez enregistrer le produit pour recevoir: • Support technique • Nouvelles fonctionnalitées du produit • Protection contre de nouvelles... -
Page 15: Cautions And Warnings
Cautions and Warnings Environmental Specifications Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101. -
Page 16: Regulatory Notices
Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 17 Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d’autres canaux n’est pas possible. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator &...
- Page 18 This declaration is only valid for Fortinet products (including combinations of software, firmware and hardware) provided by Fortinet or Fortinet’s authorized partners to the end-customer directly for use within the EU or countries that have implemented the EU Directives and/or spectrum regulation. Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no assurances...
- Page 19 Denna produkt överensstämmer med direktiv 2014/53/EU. Note: The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/EU The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range in the following...
- Page 20 This product is in compliance with Statutory Instrument 1206 Radio Equipment Regulations 2017 The full Declaration of Conformity for this product is available in the link below: https://site.fortinet.com/ProductRegulatory/UK The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range in the following...
- Page 21 Page 18...
