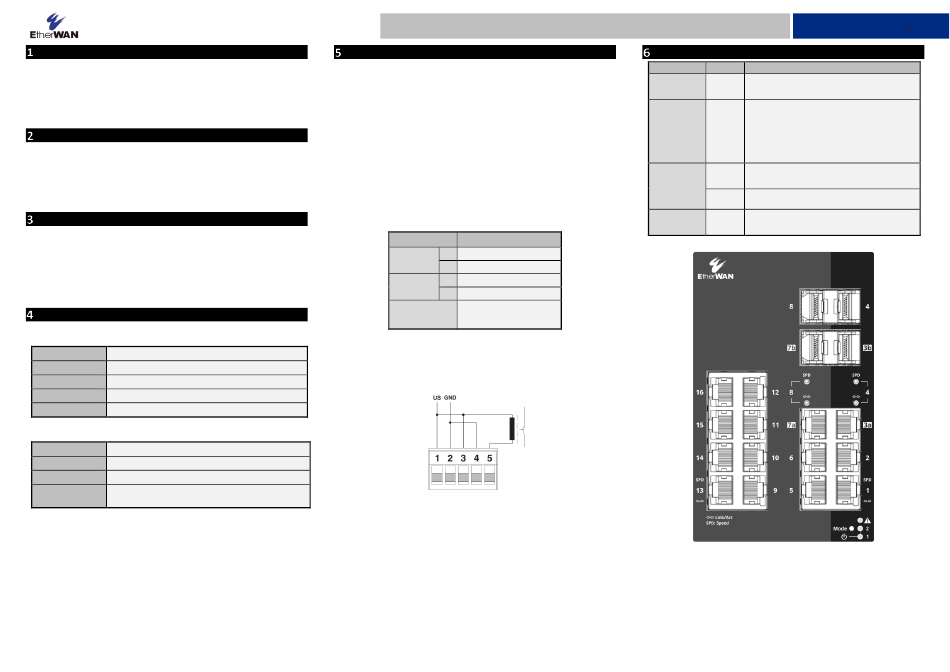

EtherWAN SmartE Series Installation Manual

Unpacking

Open the carton and unpack the items. Your package should include:
▪
One SmartE hardened switch
▪
DIN rail brackets and screws
If any items are missing or damaged, notify your EtherWAN representative. If
possible, save the carton and packing material in case you need to ship or store the
switch in the future.

What Else You Need

▪
Appropriate cables for data ports. To prevent damage to the switch from
electrical surges, it is recommended to use STP (Shielded twisted pair)
cabling.
▪
Personal computer or laptop
▪
Appropriate SFP modules for SFP ports

Select a Location

▪
Installation: DIN-Rail mount, wall mount, flat panel mount. Wall and flat
panel mounting kits are purchased separately.
▪
Select a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature between -40 and 75ºC (-40
and 167ºF). Make sure the vents are not blocked or covered.
▪
Humidity range (Operational): 10% to 95%, non-condensing.

Connect to the Data Ports

Depending on the model, your switch can have the following ports:
Fast Ethernet Models
SF300-05 5-port 10/100BASE-T(X)
SF300-08 8-port 10/100BASE-T(X)
SF300-0602 6-port 10/100BASE-T(X) + 2-port 100BASE SFP
SF300-16 16-port 10/100BASE-T(X)
SF300-1402 14-port 10/100BASE-T(X) + 2-port 100BASE SFP
Gigabit Ethernet Models
SG300-08 8-port 10/100/1000BASE-T(X)
SG300-0602 6-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP
SG300-16 16-port 10/100/1000BASE-T(X)
SG300-120202c 12-port 10/100/1000BASE-T(X) + 2-port 100/1000BASE SFP
Combo + 2-port 100/1000BASE SFP
W70G-SMARTEXQ2 Page 1
SmartE Series | Hardened Managed Ethernet Switch

Connect Power

▪
The switch is equipped with a terminal block with two pairs of power inputs.
▪
Only one power input is required to operate the switch. However,
redundant power supply functionality is supported.
▪
Input power is 12-57VDC, 0.15A~0.55A for SF300-05 / SF300-08 / SF300-
0602 / SG300-08 / SG300-0602.
▪
Input power is 12~57VDC, 0.2A~0.95A for SF300-16 / SF300-1402 / SG300-
16/SG300-120202c.
▪
The power input specification complies with the requirements of SELV
(Safety Extra Low Voltage), and the power supply should comply with UL
61010-1 and UL 61010-2-201 with LPS or limited energy source.

Terminal Block

The switch provides two power inputs on a 12-57VDC terminal block. The
terminal block has 5 terminal posts.
Pin Description
+
12-57VDC
Power 1
−
Power Ground
+
12-57VDC
Power 2
- Power Ground
12-57VDC, typ. 100mA
Digital output
max. 0.7A (1 minute)

Digital Alarm Output

The digital alarm output is an open drain output. In normal mode, the output is
connected to ground potential. If an error/alarm is present, the output is floating.
Copyright 2022 EtherWAN Systems, Inc. All Rights Reserved 11/30/2022
Installation Guide

Front Panel LEDs

LED Color Status
On: Power on
Power 1 & 2 Green
Off: Power off
On:
Green: Link active
Green /
Orange: SFP link at combo port active
Link/Act
Orange
Flashing: Data transmitting
Off: Link not active
Off: 10Mbps
Green
On: 100Mbps
Link Speed
On: 1000 Mbps
Orange
On: Error has occurred
Alarm Red
Off: No error present
