- Page 1 SPOT+ FAMILY EtherNet/IP User Guide LANGUAGE: ENGLISH ISSUE: 1 DATE: 19 SEPTEMBER 2023 Advanced Digital Pyrometer Series Q U A L I T Y C U S T O M E R S O L U T I O N S...
- Page 2 Observe precautions for handling electrostatic discharge sensitive devices. Equipment Operation Use of this instrument in a manner not specified by AMETEK Land may be hazardous. Read and understand the user documentation supplied before installing and operating the equipment. The safety of any system incorporating this equipment is the responsibility of the assembler.
- Page 3 This manual is provided as an aid to owners of AMETEK Land’s products and contains information proprietary to AMETEK Land. This manual may not, in whole or part, be copied, or reproduced without the expressed written consent of AMETEK Land.
-
Page 4: Table Of Contents
SPOT+ Contents Introduction Index of SPOT+ EtherNet/IP Parameters SPOT+ Key Parameter Values List Identity Example Data Ethernet Security Settings Ethernet Specifications REST API User Guide... -
Page 5: Introduction

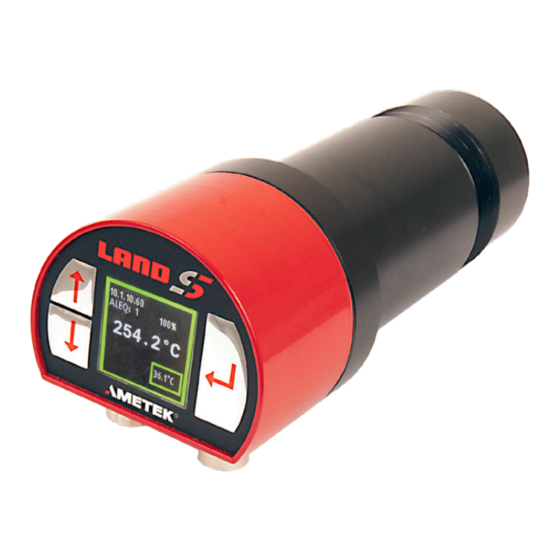

This User Guide explains how to communicate with a SPOT+ pyrometer using the EtherNet/IP. AMETEK Land’s SPOT+ range is a family of fully-featured smart pyrometers for non- contact temperature measurements. Available in a number of temperature ranges and models, SPOT+ pyrometers provide immediate local display and onboard analogue I/O together with multiple communication options over Ethernet: Embedded Webserver, Modbus TCP/IP, REST API (http) and EtherNet/IP. -
Page 6: Index Of Spot+ Ethernet/Ip Parameters
SPOT+ INDEX OF SPOT+ ETHERNET/IP PARAMETERS 2.1 SPOT+ Key Output Values Please note that all parameters are transmitted as integers. To achieve sufficient resolution, we apply scaling factors as shown in the table. For example, a temperature of 732.8 °C is transmitted as 7328 and an emissivity of 0.835 is transmitted as 835. - Page 7 SPOT+ Parameter Read Write Definition and Range Scaling Alarm status byte. Any value > 0 causes the CMD Out relay connections to the SPOT+ to be closed if normally open (or vice versa, depending on instrument configuration). Individual bits are set to 1 if the alarm is configured and the alarm threshold is exceeded: alarmStatus...
-
Page 8: List Identity
SPOT+ 2.2 List Identity The following functions are supported: Implicit Messaging for Assembly (4), Identity (101, 102, 103, 198 and 199), Attribute (3). Explicit Messaging is not supported. Identity info: 101: Output data from the SPOT+ typedef struct{ uint16_t targetTemp; uint16_t emissivity1;... - Page 9 SPOT+ REST API User Guide 2 - 4...
-
Page 10: Ethernet Security Settings
SPOT+ ETHERNET SECURITY SETTINGS SPOT+ pyrometers are shipped in a ‘Secure’ state. The security mode can be switched via the back panel of the display, or via the webserver. In Secure Mode, a password is required to change settings on the SPOT+. The default password is the serial number of the instrument, but this should be changed on first use. -
Page 11: Ethernet Specifications
10 Mbps: STP cable Cat 3 or higher Transmission media 100 Mbps: STP cable Cat 5 or higher Maximum cable length 100 m (394 ft) Specifications Vendor Name AMETEK Land Vendor ID 1763 Device Type 101 Vendor Specific Cyclic communication (implicit messaging) EtherNet/IP... - Page 12 AMETEK Land’s global service network provides unparalleled after-sales services to ensure you get the best performance and value from your AMETEK Land products. Our dedicated service centre teams and on-site engineers are trained to deliver the highest standard of commissioning, maintenance and after- sales support.
