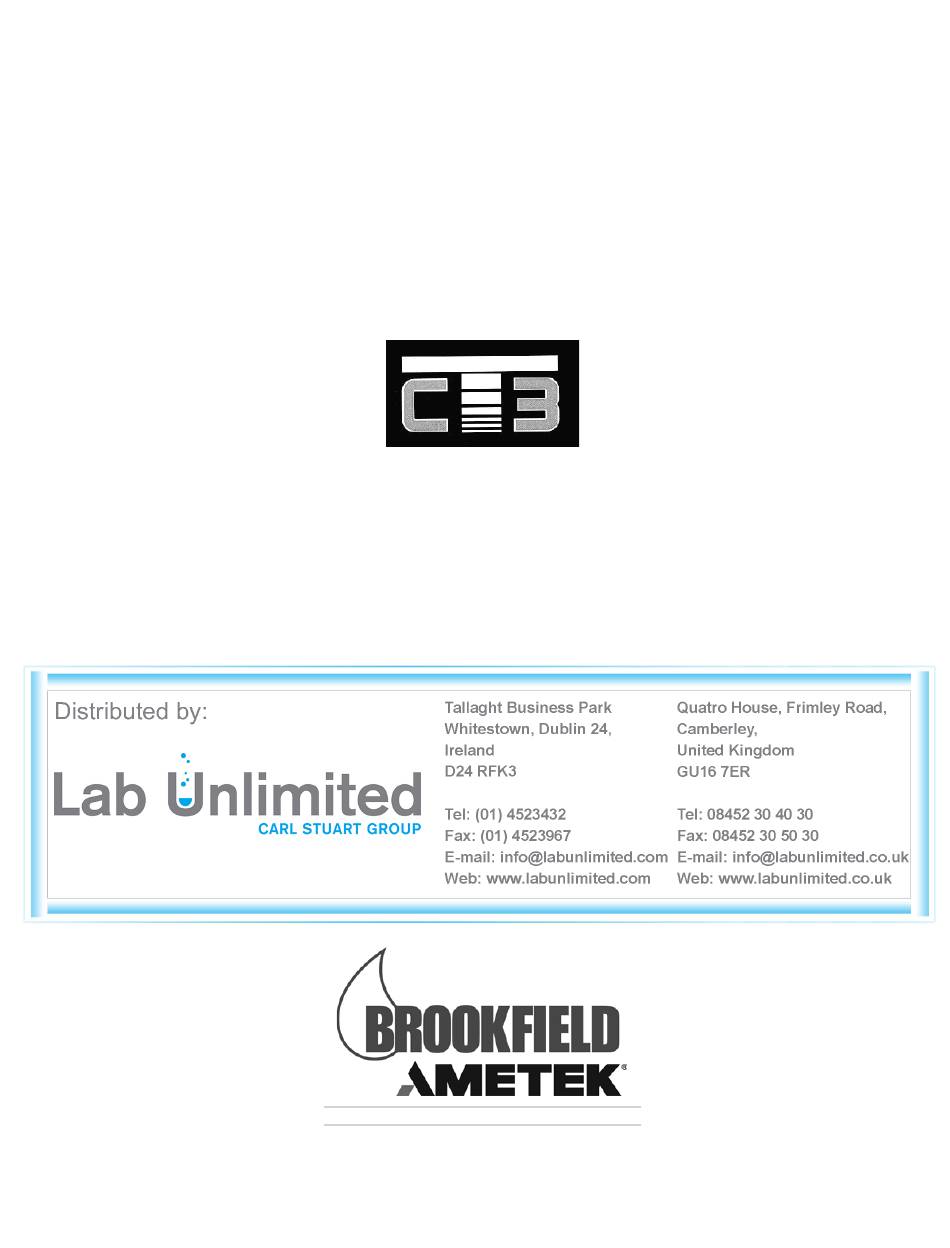

- Page 1 CT3 TEXTURE ANALYZER Operating Instructions Manual No. M08-372-F1116 INSTRUMENTATION & SPECIALTY CONTROLS DIVISION 11 Commerce Boulevard, Middleboro, MA 02302 : 508-946-6200 or 800-628-8139 (USA excluding MA) : 508-946-6262 http://www.brookfieldengineering.com Internet...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ......................5 Components .......................5 Utilities ......................6 Units ........................6 I.4 Specifications ....................6 Installation ......................7 Safety Symbols and Precautions ...............8 Key Functions ....................9 Cleaning ......................11 II. QUICK START ........................ 12 III. OPERATION ........................13 III.1 Principle ......................13 III.2 Emergency Stop ....................13 III.3 Base Table ......................14 III.4 Probes ......................15 III.5 Fixtures ......................15... - Page 4 IV. TEST METHOD DEVELOPMENT ................36 IV.1 Sample Preparation ...................36 IV.2 Test Probe / Fixture ...................36 IV.3 Test Parameters ....................37 IV.4 Recommendations .....................37 V. APPLICATIONS ......................38 V.1 Comparison of Low Fat and Virtually Fat Free Yogurt Consistencies ....38 V.2 A Comparison of the Textural Characterstics of Biscuits (Cookies) ....41 V.3 Review of Solid Chocolate at Ambient Temperature .........43 Appendix A - Probes, Fixtures, Calibration Accessories and Gelatin Accessories ..
-
Page 5: Introduction
Temperature Probe DVP-94Y Rotary Base Table TA-RT-KIT Fixture Base Table TA-BT-KIT Bloom Strip CT3-CS-100 or CT3-CS-1000 Calibration Weight Set varies by load cell Standard Probe Kit TA-P-KIT2 TexturePro CT Software TA-CT-PRO AMETEK Brookfield Page 5 Manual No. M08-372-F1116... -
Page 6: Utilities
0.20 ±0.5%FSR CT3-4500 0-4500 0.50 ±0.5%FSR CT3-10KG 1-10000 1.0 ±0.5%FSR CT3-25KG 2-25000 2.0 ±0.5%FSR CT3-50KG 5-50000 5.0 ±0.5%FSR FSR = Full Scale Range *This value applies to the full range of operating temperatures as defined later in this section under Environmental Conditions. Accuracy is 0.1%FSR, when the instrument is operated in a stable ambient temperature (20°C - 25°C). AMETEK Brookfield Page 6 Manual No. M08-372-F1116... -
Page 7: Installation
2) Unpack and remove the CT3 Texture Analyzer from the shipping container. The CT3 Texture Analyzer weighs 16.8 kg (37 pounds). Use caution when lifting the unit out of the packaging. AMETEK Brookfield Page 7 Manual No. M08-372-F1116... -
Page 8: Safety Symbols And Precautions
I.6 Safety Symbols and Precautions Safety Symbols The following explains safety symbols which may be found in this operating manual, or on the instrument itself. Indicates hazardous voltages may be present. Refer to the manual in all cases where this symbol is evident. Used for specific warning or caution information to avoid personal injury or damage to the instrument. AMETEK Brookfield Page 8 Manual No. M08-372-F1116... -
Page 9: Key Functions
Additionally, there is an emergency stop button located above the base and to the right of the probe rod. CT3 TEXTURE ANALYZER Display Select/Scroll Reset Start Stop BROOKFIELD Probe Emergency Adapter Stop Figure I.2 AMETEK Brookfield Page 9 Manual No. M08-372-F1116... - Page 10 This button is used to abort a test in case of an emergency condition. BACK PANEL 1) USB Type B Port 3) Temperature Probe Plug 2) RS-232 Serial Port 4) Power Entry Module Power ON/OFF Switch Figure I.3 AMETEK Brookfield Page 10 Manual No. M08-372-F1116...
-
Page 11: Cleaning
(stainless steel, aluminum) to plastics (acrylic, Black Delrin, Nylon). Clean with a nonabrasive cloth using solvents that are appropriate for both the sample material and the material of the probe and/or fixture. Do not apply excessive upward, downward or sideways force to probe while fixed to CT3. Damage may occur to the load cell. AMETEK Brookfield Page 11 Manual No. M08-372-F1116... -
Page 12: Quick Start
Set the test speed and distance. See Section IV.3 for more information. Press the START button. The weight of the probe will autozero and then the test will start. Record all test results. Remove sample and clean the probe. AMETEK Brookfield Page 12 Manual No. M08-372-F1116... -
Page 13: Operation
2) The probe immediately returns to the home position. 3) The Emergency Stop condition can be canceled by rotating the Emergency Stop Button clockwise. This will reset the CT3 firmware to the power up condition. Tension: Pressing Emergency Stop Button during a tension test will: 1) Immediately stop probe movement and display the emergency stop screen. AMETEK Brookfield Page 13 Manual No. M08-372-F1116... -
Page 14: Iii.3 Base Table
The Rotary Base Table (P/N TA-RT-KIT) is a disc shaped surface and should always be centered under the probe when conducting compression tests. There are two methods of adjusting the height in order to place the sample close to the probe for testing. The locking knob on the base of the Rotary Table allows quick height adjustment; just unlock the knob, raise or lower the table, then lock it into position. The table is also mounted on a threaded shaft held securely with a fine adjustment nut. Unlocking the fine adjustment nut and rotating the table will raise or lower the test surface to give even more range to the height adjustment. AMETEK Brookfield Page 14 Manual No. M08-372-F1116... -
Page 15: Iii.4 Probes
There are a range of fixtures available for use with the CT3 Texture Analyzer as described in Appendix A. These devices are designed to hold a sample in place during measurement. Each fixture is designed to attach to either the Rotary Base or Fixture Base Table. Refer to the instructions provided with the fixture for proper installation. NOTE: Brookfield can design custom fixtures to meet your application. Contact AMETEK Brookfield or your local authorized dealer for details. AMETEK Brookfield Page 15 Manual No. M08-372-F1116... -
Page 16: Iii.6 Operating Menu
The total downward distance the probe will travel once the trigger value is reached. Deformation: The speed at which the probe will travel the specified distance. Speed: The number of seconds that the probe will be held at the defined distance during Time: a Hold Time test. The number of cycles (Speed and Distance) that will be applied to the sample Count: during a Cycle Count test. Specifies the size of the load drop, in grams, that is required to recognize a gel Correction: rupture. AMETEK Brookfield Page 16 Manual No. M08-372-F1116... - Page 17 In the following section describing test modes, all possible displays are shown. For those having more than four lines, the additional lines are shown grey text as seen in Figure III.3. AMETEK Brookfield Page 17 Manual No. M08-372-F1116...
-
Page 18: Iii.7 Running A Test
Depressing the reset button will return to the test mode menu. Correct the reason for the overload and retest. NORMAL TEST – performs a single compression of the sample then immediately returns to HOME starting position. AMETEK Brookfield Page 18 Manual No. M08-372-F1116... -
Page 19: Normal Test
NORMAL mode Final screen - After the probe has returned to the START position, the display will show the test results for ADHESIVE FORCE and ADHESION (ADHESIVENESS). Since only four lines are available on the display, rotate the Select Knob to scroll down to observe the added parameters as shown in the following figure. AMETEK Brookfield Page 19 Manual No. M08-372-F1116... -
Page 20: Hold Time Test
TEST:HOLD TIME: XXXXS DEFORMATION:XXX.X LOAD: XXXX.X Figure III.11 Deformation and Load will remain live displays during the test. When the countdown clock reaches zero, the probe returns to home/starting position at 4.5mm/s. AMETEK Brookfield Page 20 Manual No. M08-372-F1116... -
Page 21: Cycle Count Test
Cycle count will show a count down of the number of cycles remaining. Deformation and Load will remain live displays during the test. Test results are shown on the reporting screen: CYCLE:XX PEAK MEAN: XXXX.X g PEAK STDEV: XXXX.X g PEAK LOAD: XXXX.X g FINAL LOAD: XXXX.X g TEMP: XXX.X F Figure III.15 AMETEK Brookfield Page 21 Manual No. M08-372-F1116... -
Page 22: Bloom Test
TPA TEST – performs two compression cycles on the sample and reports five established Texture Profile Analysis results. The operator sets the trigger value, target deformation (travel distance into the sample) and the test speed using the TPA menu screen: AMETEK Brookfield Page 22 Manual No. M08-372-F1116... - Page 23 Adhesiveness is a measure of stickiness and is calculated as the area under the negative peak as probe withdraws after the first compression. TENSION TEST – this test can be used to pull apart a sample, usually using grip fixtures to apply tension load on the sample. AMETEK Brookfield Page 23 Manual No. M08-372-F1116...
-
Page 24: Tension Test
When clamping the sample try to exert only minimal lateral loads on the probe shaft. Pressing Start as shown below will start the test: *CLAMP SAMPLE *PRESS START TO CONTINUE Figure III.25 During the test the running screen is seen as shown below: TEST: TENSION DEFORMATION:XXXX.X mm LOAD: XXXX.X Figure III.26 AMETEK Brookfield Page 24 Manual No. M08-372-F1116... - Page 25 However, the same resolution restrictions as used in Trigger Value entry will apply. For example, with 50000g load cell, the least significant digit in Newton mode will be 0.05N. Pressing the Select Knob, when the cursor is positioned over the HOLD (time) text, will start the Hold Time data entry. The cursor will be repositioned over the left most digit of the time field, which AMETEK Brookfield Page 25 Manual No. M08-372-F1116...
- Page 26 Pressing the START button will advance the AUTOZEROING screen. Once the standard AUTOZEROING function is performed, the CT3 automatically advances to running the test. Pressing the Stop during AUTOZERO will revert to the Setup Screen and retract the probe to the HOME position. AMETEK Brookfield Page 26 Manual No. M08-372-F1116...
- Page 27 Therefore, the pre-assigned probe speed only represents the maximum allowable speed. For example, if the applied load, when the TRIGGER point is reached, is sufficiently close to the target hold load, then AMETEK Brookfield Page 27 Manual No. M08-372-F1116...
- Page 28 HOME position. (The current standalone TPA test has a calculated final screen value called ADHESION, reported in mJoules. The Target Hold calculation is performed in the same way.) ADHESIVE FORCE is the peak negative AMETEK Brookfield Page 28 Manual No. M08-372-F1116...
-
Page 29: Surimi Test
The test speed for all surimi testing has historically been 1 cm/s, so this is the default value. The test speed can be set from 0.1 mm/s to 10 mm/s, which is equivalent to 1 cm/s. Changing the test speed is likely to change the gel result. AMETEK Brookfield Page 29 Manual No. M08-372-F1116... -
Page 30: Iii.8 Global Parameters
It may be set from 0.1mm/s to 10.0mm/s. For some tests, Such as TPA, the post test speed is irrelevant because it will always be the same as the test speed. The two tests for which this is the case are TPA and the Cycle test. Rotate the Select Knob to LOAD UNITS. When the cursor is over the “L” in LOAD, pressing the Select Knob will reposition the cursor to the “g” or “N” at the far right of the field. Rotating the knob will alternate between the “g” and “N” (grams and Newtons). AMETEK Brookfield Page 30 Manual No. M08-372-F1116... -
Page 31: Iii.9 Probe Pre-Positioning
The following diagram shows, from left to right, The HOME position corresponding to the probe at power up, the START position which is determined by the pre-position operation, the TRIGGER position where the sensed load equals the trigger value, and the DEFORMATION AMETEK Brookfield Page 31 Manual No. M08-372-F1116... -
Page 32: Iii.9.2 Hold Time Mode Pre-Positioning
HOME position. The probe will return tho the HOME position only if a full restart of the HOLD TIME test is done. HOLD TIME mode Quick re-start After a HOLD TIME test is complete, pressing the START button will re-run the test starting at the AUTZERO screen. AMETEK Brookfield Page 32 Manual No. M08-372-F1116... -
Page 33: Iii.9.3 Cycle Count Mode Pre-Positioning
START position. The displayed value for deformation will be set to 0.0 mm. All deformation measurements will then be referenced to the position when the probe makes contact with the sample and the trigger point is reached. AMETEK Brookfield Page 33 Manual No. M08-372-F1116... -
Page 34: Iii.9.6 Tension Mode Pre-Positioning
1500 gram •TA-CW-4500C 4500 gram •TA-CW-10KGC 10kg •TA-CW-2550KGC 25kg and 50kg The frequency of the calibration verification should be set in accordance to your company procedures. 1. Start the calibration verification process using the select/scroll knob to set the test mode to Static Load and press the start button. The display will request that you attach the hanger mount to the probe shaft. AMETEK Brookfield Page 34 Manual No. M08-372-F1116... - Page 35 As successive weights are added, the CT3 will show the total weight, which should be within the specified instrument tolerance shown in Table III.2. The accuracy of the CT3 is defined by the rating of the load cell as detailed in Table III.2. If the CT3 Texture Analyzer produces data outside AMETEK Brookfield Page 35 Manual No. M08-372-F1116...
- Page 36 Enter the mass and serial numbers of the weights in the same order that you add them to the hanger. Enter the load value shown in the CT3 display as each weight is added. Calibration is satisfactory if all values in the “Difference” column are smaller than the “Load Cell Accuracy” value. AMETEK Brookfield Page 36 Manual No. M08-372-F1116...
-
Page 37: Test Method Development
Magness Taylor used for puncturing, often used for determining ripeness of fruit/vegetables Extrusion Cell samples that can be made to flow, general purpose Shear blades meat tenderness Table IV.1 AMETEK Brookfield Page 37 Manual No. M08-372-F1116... -
Page 38: Iv.3 Test Parameters
(Note: vary only one parameter at a time.) Once this information is considered and a method is established, the method should be documented in significant detail. This will ensure good repeatability of results and good comparison with others who attempt to duplicate your method. AMETEK Brookfield Page 38 Manual No. M08-372-F1116... -
Page 39: Applications
This was left to ensure that a complete break between probe/sample interface was made during probe retraction so that adhesiveness characteristics could be evaluated. NOTE: Samples were tested with original containers as supplied. Use of different dimension holding vessels will change results obtained, therefore, operators must be consistent with the test setup used. AMETEK Brookfield Page 39 Manual No. M08-372-F1116... - Page 40 ADHESIVENESS Work necessary to overcome attractive forces (Total Negative Area) between surface of the food and the materials with which it comes into contact. ADHESIVE FORCE Force required to “pull” probe from sample (suction). AMETEK Brookfield Page 40 Manual No. M08-372-F1116...
- Page 41 Tamime, A. and Robinson R. 1985. Yogurt Science and Technology. Pergamon Press Ltd., Oxford. Varnam. A. and Sutherland, J. 1994. Milk and Milk Products - Technology, Chemistry and Microbioogy. Chapman and Hall, Great Britain. AMETEK Brookfield Page 41 Manual No. M08-372-F1116...
-
Page 42: A Comparison Of The Textural Characterstics Of Biscuits (Cookies)
(Crispiness becomes a function of hardness) Relate the mean value of peaks obtained to the original hardness value. Empirically our investigations highlighted that higher values of the ratio were indicative of increased crispiness. AMETEK Brookfield Page 42 Manual No. M08-372-F1116... - Page 43 Results will be affected by a large number of factors including: EMPIRICAL 1. Biscuit composition FACTORS: 2. Sample age 3. Atmospheric exposure 4. Positioning beneath probe (closeness to sample edges) 5. Surface characteristics AMETEK Brookfield Page 43 Manual No. M08-372-F1116...
-
Page 44: Review Of Solid Chocolate At Ambient Temperature
It was therefore recommended that the 4mm mid penetration value is utilized to permit evaluation of a range of chocolate types thus enabling comparison of a range of results. AMETEK Brookfield Page 44 Manual No. M08-372-F1116... - Page 45 2. Proximity of test holes within sample 3. Ambient temperatures 4. Base effects where probe compresses against analyzer test bed Rheology of chocolate is influenced by: 1. Cocoa solids content 2. Cocoa butter content 3. Solid fat content 4. Crystal modification (acting as an indication of temperature abuse). AMETEK Brookfield Page 45 Manual No. M08-372-F1116...
-
Page 46: Appendix A - Probes, Fixtures, Calibration Accessories And Gelatin Accessories
6.35mm DIAMETER CYLINDER PROBE Black Delrin. 20mm Long. Rad .35 - .43mm. . (Low mass for CT3100) TA10 * 12.7mm CYLINDER PROBE Clear Acrylic 5g. 35mm length with sharp edge. Gelatin Bloom Probe AMETEK Brookfield Page 46 Manual No. M08-372-F1116... - Page 47 1mm DIAMETER CYLINDER PROBE Stainless Steel. TA54 38.1mm DIAMETER 170° SHALLOW ANGLE CYLINDER PROBE Clear Acrylic. 20mm Long. CONICAL PROBES included in TA-P-KIT2 TA2/100 60º CONE PROBE Clear Acrylic. 30mm Diameter. (Low mass for CT3100) AMETEK Brookfield Page 47 Manual No. M08-372-F1116...
- Page 48 6.35mm DIAMETER BALL PROBE Stainless Steel. TA18 * 12.7mm BALL PROBE Stainless Steel 30g TA28 2mm DIAMETER BALL PROBE Stainless Steel. TA31 1mm DIAMETER BALL PROBE Stainless Steel. TA33 3mm DIAMETER BALL PROBE Stainless Steel. AMETEK Brookfield Page 48 Manual No. M08-372-F1116...
- Page 49 Stainless Steel, 8mm dia disc ( 0.5 sq cm ) TA48 ** TA CURD PROBE 10mm Stainless Steel, 10mm dia disc ( 0.8 sq cm ) TA37 2.36mm DIAMETER CUTTING WIRE PROBE Aluminium Frame. 40mm Wide. AMETEK Brookfield Page 49 Manual No. M08-372-F1116...
-
Page 50: Fixtures
Table TA-RT-KIT. TA-JPA JUNIOR PUNCH ASSEMBLY This accessory is used for punching through flat samples. Probe used with this assemblyy, TA10, is included in General Probe Kit TA-P-KIT2. Otherwise, order TA10 separately. Requires Rotary Base Table TA-RT-KIT. TA-TBLT Pair of T-bolts with nuts and washers. AMETEK Brookfield Page 50 Manual No. M08-372-F1116... - Page 51 CRAFT KNIFE ADAPTER This adapter cuts cleanly into and through material with minimum deformation of the sample. Requires Fixture Base Table TA-BT-KIT. TA-CLT001 CAPSULE LOOP TENSILE TEST FIXTURE This fixture is used to measure the force required to split on half of a hard gel capsule. Requires Fixture Base Table TA-BT-KIT. AMETEK Brookfield Page 51 Manual No. M08-372-F1116...
- Page 52 A known weight of sample is placed in the pot and the aeration plunger is used to remove air pockets through gentle rotation. The dough is then assessed for firmness using a TA41 6mm Ø stainless steel probe. Includes Dough Aerator, Dough Compactor & 2 Containers. AMETEK Brookfield Page 52 Manual No. M08-372-F1116...
- Page 53 TA-MDI METER DOSE INHALER TEST FIXTURE This fixture measuresthe push-button force to actuate the inhaler. Requires Fixture Base Table TA-BT-KIT. AMETEK Brookfield Page 53 Manual No. M08-372-F1116...
- Page 54 COOKED PASTA FIRMNESS AND STICKINESS JIG This fixture measures the firmness and stickiness of cooked pasta and like products. Requires Fixture Base Table TA-BT-KIT. TA-PTF PIZZA TENSILE FIXTURE This fixture quantifies cooked pizza firmness by measuring the tensile force and deformation distance to break the sample. AMETEK Brookfield Page 54 Manual No. M08-372-F1116...
- Page 55 40mm in diameter. Requires Fixture Base Table TA-BT-KIT. TA-TCA TABLET COATING ADHESION FIXTURE This fixture measures the adhesion force of a tablet coating to a tablet. Requires Fixture Base Table TA-BT-KIT. TA-TEF TUBE EXTRUSION FIXTURE This fixture measures the force needed to squeeze cream or paste out of a tube. Requires Fixture Base Table TA-BT-KIT. TA-TPB THREE POINT BEND TEST FIXTURE Three point bend test fixture is used for fracture tests of brittle materials. Sample supports can be adjusted to provide spacing from 10mm-70mm. Sample supports AMETEK Brookfield Page 55 Manual No. M08-372-F1116...
- Page 56 Miscellaneous TA-RT-5 T-Bolt (2) TA-RT-3 Thumbnut (2) TA-TBLT Table Bolt Nut TA-BT-5 Base Table Insert for TA-BT-KIT TA51 M6 to M3 Probe Adapter TA52-4 Packet of 5 Blades for TA52 TA-LVL Bubble Level AMETEK Brookfield Page 56 Manual No. M08-372-F1116...
-
Page 57: Calibration Accessories
Used for stacking TA-CW-5000C calibration weights for checking calibration of 25kg and 50kg CT3 Texture Analyzers. Included in TA-CW-2550KGC. CCSCT3 Calibration & Certification for CT3 CT3 Train CT3 On-Site Installation and Training one day on-site time AMETEK Brookfield Page 57 Manual No. M08-372-F1116... -
Page 58: Gelatin Accessories
12 bloom jars. CT3-CS-100 BLOOM TEST STRIP For use with 100g CT3 Texture Analyzer to check load calibration. CT3-CS-1000 BLOOM TEST STRIP For use with 1000g & 1500g CT3 Texture Analyzer to check load calibration. AMETEK Brookfield Page 58 Manual No. M08-372-F1116... -
Page 59: Appendix B - Troubleshooting
Display shows “REMOTE OPERATION” • This will always show when the computer interface cable is connected to the CT3. To use the CT3 without the computer program, the serial cable must be disconnected. AMETEK Brookfield Page 59 Manual No. M08-372-F1116... -
Page 60: Appendix C - Texture Loader Programming
Start TextureLoader software. Be sure to select the correct load cell of your CT3 and choose the correct communications port on your computer. You are now ready to create and load custom programs into your CT3 Texture Analyzer. AMETEK Brookfield Page 60 Manual No. M08-372-F1116... - Page 61 Target Hold is added to the user defined downloadable tests. The com spec “xx” field for “TXTNAME<xx><nnnnnnnn><CR>” is changed from values of 00-04 to 00-05. “05” represents the added test type Target Hold. The PGM command field “xxxx” is used for the target load value. The home screen for this test is shown below. Note that the test type is displayed as “TH”. 0:TESTNAME TH nnnn TRIGGER: 10.0 TARGET LOAD: SPEED: mm/s The User Defined target hold test will operate the same as the standard target hold test except that there will be no ability to modify field values manually. It will essentially operate in a similar manner to other User Defined tests. AMETEK Brookfield Page 61 Manual No. M08-372-F1116...
- Page 62 Transmit Data (TxD) No Connection Cable Sensing Cable Sensing Serial Ground Pins 4 and 5 are used to sense presence of serial cable. USB (DVP-202)Type B Port Communications Parameters PIN 1: POWER PIN 3: + Data PIN 2: - Data PIN 4: Cable Gnd AMETEK Brookfield Page 62 Manual No. M08-372-F1116...
-
Page 63: Appendix E - Online Help And Additional Resources
Visit our Services section on our website to learn more about training. ** Downloads will require you to register your name, company and email address. We respect your privacy and will not share this information outside of Brookfield. AMETEK Brookfield Page 63 Manual No. M08-372-F1116... -
Page 64: Appendix F - Warranty And Repair Service
Telephone: (508) 946-6200 FAX: (508) 923-5009 www.brookfieldengineering.com For repair or service outside the United States, consult AMETEK Brookfield or the dealer from whom you purchased the instrument. For repair or service in the United Kingdom return to: AMETEK (GB) Limited...
