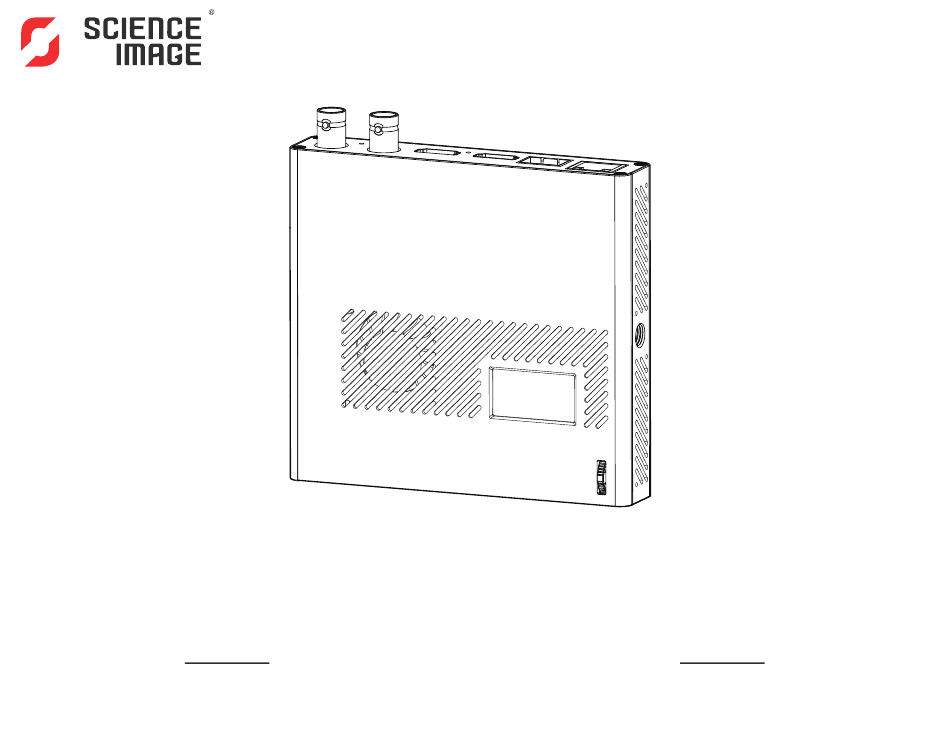

- Page 1 FLOW·2 QUICK-START GUIDE...
- Page 2 For more information and download please visit https://www.science-image.com sales@science-image.com...
- Page 3 1. FLOW·2 Interface and Indicator 9 10 11 12 SDI input SDI output HDMI input HDMI output Optical TX/RX Ethernet/POE DC 12V Factory Restore LINE IN Headset / Mic USB / PTZ Scroll Wheel Button Power LED 1/4 inch hole - 01 -...
-
Page 4: Power On And Start Up
30W and a Gigabit network switch. For FLOW 2, both DC input and POE power supply modes are available. When it starts up, the characters ‘ScienceImage Tech’ appear on the OLED screen, and the power lights on the right bottom of the FLOW 2. - Page 5 Show SDI or HDMI input priority. The 3rd line: IN: 1080i50 / CH: SDI-Y HDMI-N Display the input video format(when FLOW 2 at Optical Receiver, the line shows format of the optical input); NOTE: Show whether the SDI and HDMI inputs are recognized, Y is detected, N is no signal.
- Page 6 Scroll Wheel Button Set FLOW 2 function: SDI/HDMI priority, output format, optical transceiver mode, SDI/HDMI input selection. Operation method: Press and hold the scroll wheel button for 3 seconds to enter the setup menu. Press “--Quit--” to exit. Setup Menu...
-
Page 7: Login Web Ui
4. Login Web UI Method 1: Open IE browser, type FLOW 2 IP address(OLED screen), and enter the login page, as shown below, Defualt User name and password are the same: admin User name 用户名 admin NOTE: Password 密码 admin... - Page 8 Common hardware types: Microsoft Network Service: Network Service Microsoft NDIS Capture Next Next After the driver installation completed, open IE and enter ip address of FLOW 2: 192.168.88.8 and log in. Default username: admin Password: admin. NOTE: Use the following IP address:...
-
Page 9: Device Information
5. Device information Dashboard is FLOW 2 device information, contains the following information: Dashboard Device basic information, such as input HDMI source or SDI source, Video/Audio format, CPU temperature, Memory usage and other parameters. Device information includes: Device name, Encoder/Decoder mode, Serial number, Hardware version, Firmware version, MAC address, IP address, Local IP address, Disk space, etc. -
Page 10: Network Settings
FLOW 2 will automatically reboot and get a new IP address assigned by the router. Manual mode: In manual mode, user can define the FLOW 2 IP address freely and after that, FLOW 2 automatically restart with new IP address. - Page 11 External Audio UpDown Conversion User could select any format in the support format list, FLOW 2 will output to the selected format, If select Auto, which will be the same format as the source input format. 7.2 SDI/HDMI Input Priority (Input source preference) setting When there are both different/same SDI and HDMI signal inputs, the selected will be considered as the defaul priority input signal.
- Page 12 Receive status by web UI or Scroll button. External Line-IN. Two audio volume can freely adjust and mix. If used as an optical transceicer, then FLOW 2 should be used in pairs. SDI/HDMI UpDownCross conversion and Optical Transmitting can work simultaneously.
-
Page 13: System Settings
8. System settings The system settings can perform operations such as login password, factory restoration, firmware upgrade, switching Encoder/Decoder mode and restarting the device. System settings Firmware update Reset login password Remote restart Restore factory settings Reset login password Change the login password, click [Apply] and the new password will take effect at the next login. Firmware update Click [Open Upgrade Page] and select Automatic Upgrade to update the file remotely. -
Page 14: Restore Factory
Restore Factory Method 1: Click the OneKey Recovery button on the web UI, FLOW 2 will restart and system will be restored to its original settings before use, not the factory state. Method 2: Press and Hold the FLOW 2 reset button on the front panel and... - Page 15 Check whether the device power indicator (located on the right side of the shell) and OLED screen are on. Q: Can not login to the Web UI? Please check FLOW 2 and control device IP address weather in the same network segment, or conflicts. - 13 -...
