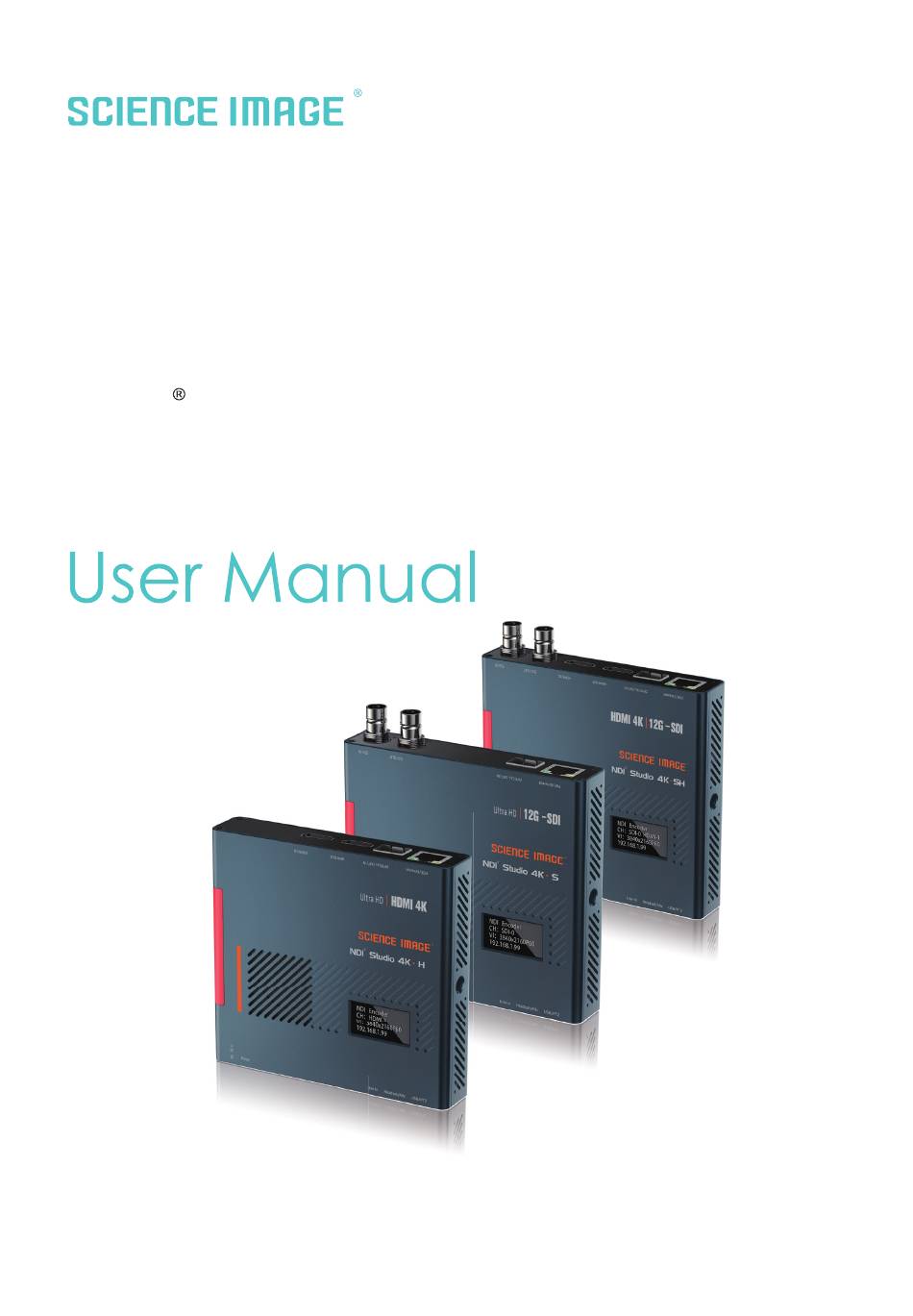

- Page 1 make better 12G-SDI/HDMI 4K60 FULL NDI BiDirectional Encoder/Decoder ® UpDownCross Conversion NDI Studio 4K·H/4K·S/4K·SH The world ’ s advanced NDI converter with broadcast quality www.science-image.com Jun 2020...
- Page 2 Reading before use If you find that some functions are unavailable in future use, you need to check the following to find out whether it is caused by improper operation or settings: 1. Please use the officially designated adapter. 2. If you cannot log in to the WebUI, please check whether the device's IP is in the same network segment as the computer's IP address, and whether the device's IP address conflicts with the IP addresses of other devices in the network segment.
-
Page 3: Table Of Contents
NDI® Studio 4K interface and indicator Three ways to power on and connect to LAN OLED screen display instructions Login Web UI open the web login page log in Device Information Network settings Modify the IP DHCP mode 6.1.1 6.1.2 Manual mode NDI Discovery server settings NDI Multicast settings... - Page 4 Restore factory settings Firmware upgrade Working mode switch Device restart Control 10.1 Camera settings 10.2 PTZ control panel contents...
-
Page 5: Ndi® Studio 4K Interface And Indicator
1. NDI Studio 4K interface and indicator introduction SDI input-----------SDI signal input interface (Studio 4K·H does not have this interface) SDI output----------Encoder is looped out picture, decoder is decoded output picture (Studio 4K·H does not have this interface) HDMI input----------HDMI input signal (Studio 4K·S does not have this interface) HDMI output--------The picture is looped out in the encoding state,and the output picture is decoded in the decoding state(Studio 4K·S does not have... -
Page 6: Three Ways To Power On And Connect To Lan
12V DC-IN----------12V DC power input Reset--------------Long press for 5 seconds to restore factory settings LINE IN-------------3.5mm audio input port for external analog audio embedding Headset or Mic-------Headphone jack, adopts American standard; at the same time can be used as Mic USB/PTZ------------USB mode power supply/support all-round (up and down, left and right) movement of the pan/tilt, zoom lens, zoom control camera connection... -
Page 7: Login Web Ui
The first line: Displays the current NDI ® Studio 4K has two modes: encoding and decoding. The code is "NDI encoder"; It is decoded as "NDI decoder". The second line: In encoding mode, the current NDI is displayed circularly ® The NDI stream name of studio 4K, such as "NDI: scim-2021"... - Page 8 The PC or mobile phone must be in the same routing Note: network as the NDI® Studio 4K device. Method 2: Open the login page through NDI Studio Monitor Download and install the free NDI® tool-NDI Studio Monitor on NewTek's The first step: official website.
-
Page 9: Log In
4.2 login in Enter the initial login information of the device: Username: admin Password: admin Click the [Login] or [登录] button to enter the English Chinese setting interface respectively. Click [Login] for the English interface, and click [登录] for the Chinese interface. Device Information This page is the NDI®... - Page 10 The device information includes: Device name (can display the current codec mode of the device), device serial number, hardware version, firmware version (can be upgraded on the system page with the version update), MAC address (unique and unmodifiable), device IP address (can be Modify at any time on the web page), local IP address (the IP address of the local PC or mobile phone), and disk space (usage of hardware flash disk space).
-
Page 11: Network Settings
6. Network settings 6.1 Modify IP Click [Network] to enter the network setting page There are two modes for device IP address setting: DHCP and manual. 6.1.1 DHCP mode Automatic mode (DHCP) needs to be used in the link connecting to the router. The router dynamically assigns the IP address tothe device in real time. - Page 12 After filling in the IP address, click the [apply] button below, and then the system willcomplete the modification of the IP address and automatically restart the Note: equipment.The network page will also automatically enter the modified IP address page (there isno need to enter the new IP again). This process takes about 30s. www.science-image.com...
-
Page 13: Ndi Discovery Server Settings
6.2 NDI discovery server settings NDI discovery server can transfer video stream across network segments. To use this function, you need to use the official websiteof newtek（ https://www.ndi.tv/sdk/ Download and install NDI SDK and NDI tools.) Step 1: open NDI discovery service and record the IPv4 address of this computer (for example: 192.168.1.106). -
Page 14: Ndi Multicast Settings
NDI defaults to public group. If you want to add a new group, separate it with comma ",". You can also create a separate privacy group, such as science image, so that only the device that also fills in the science image can obtain the video information. -
Page 15: Video Format Conversion
7.1 Video format conversion No matter what the input format is, you can convert the output to the corresponding format by clicking the following format. Such conversion will not change the image quality. After selecting the format, it will be green. If no transformation is required, select auto, which is the same as the input source format. -
Page 16: Set Bitrate (Bandwidth)
7.5 Set bitrate (Bandwidth) The adjustment of bit rate can be reduced to save network bandwidth when the requirement of image quality is not very high. 7.6 Set NDI encoder volume "Encoder volume" regulates the volume of the video source encoded by the encoder, such as the volume of the screen in NDI Studio monitor. -
Page 17: Set Up Tally Lights
7.8 Set up Tally lights Program and preview are both started, and software with tally (such as vmix) is used to decode the signal source and broadcast theprogram. Tally lights up the red light, while pre monitoring lights up the green light. If the green light is on when pre monitoring is not needed, close preview and click apply;... -
Page 18: Optical Transceiver Settings
7.12 Optical transceiver settings Use the optical fiber interface to transmit, click to open and apply. 8. Decoder settings The decoder settings need to be changed in decoding mode. Please refer to page 12 for switching mode. Web UI based on decoding mode 8.1 Set NDI decoder volume In decoding state, this page displays "set NDI decoder volume", and "decoder volume"... -
Page 19: Select Ndi Source In Decoding State
8.2 Select NDI source to decode in decoding state If this device is used as a decoder, you need to select an NDI source to decode and output. Setting steps: ① Log in to the WebUI of the decoder ② Click [Network] ③... -
Page 20: Restore Factory Settings
9.2 Restore factory settings Restoring factory settings can restore the device to its initial state, but the firmware version will not be restored (the factory default IP address of the device is DHCP manual mode. If there is no router that automatically assigns IP addresses in the LAN, the device IPwill change to 192.168.8.8). - Page 21 After entering the page, click the [select file] button at , select the firmware to be upgraded, such as siup-ndi-20201220b.si, and open it. At this time, there will be a progress prompt in the lower left corner of the browser. When the progress is completed, the uploaded file information will be displayed.
-
Page 22: Working Mode Switch
When the progress bar reaches 100%, click the pop-up [finish] button and close the upgrade page to complete the upgrade operation. Please power on and restart the device after the upgrade is confirmed. Do not cut off the power during the upgrade process, otherwise the system Note: files may be damaged and the system will not start normally. -
Page 23: Device Restart
9.5 Device restart Click the restart device button under the box restart control to restart the controlled device. 10. Control The control settings can control the pan tilt movement, zoom and zoom of the connected device. 10.1 Camera settings Camera type Select the type of camera and click Connect. -
Page 24: Ptz Control Panel
Serial port baud rate Select the baud rate of the serial port and click Apply. Camera address Select the camera address and click Apply. 10.2 PTZ Control Panel Control the camera movement, zoom, aperture, etc. The Pelco-D and Pelco-P control panels are shown below: www.science-image.com... - Page 25 The control panel of VISCA is shown in the following two pictures: www.science-image.com...
- Page 26 make better www.science-image.com ScienceImage Technology June 2020 www.science-image.com...
