Summary of Contents for Science Image NDI Studio 4K SH

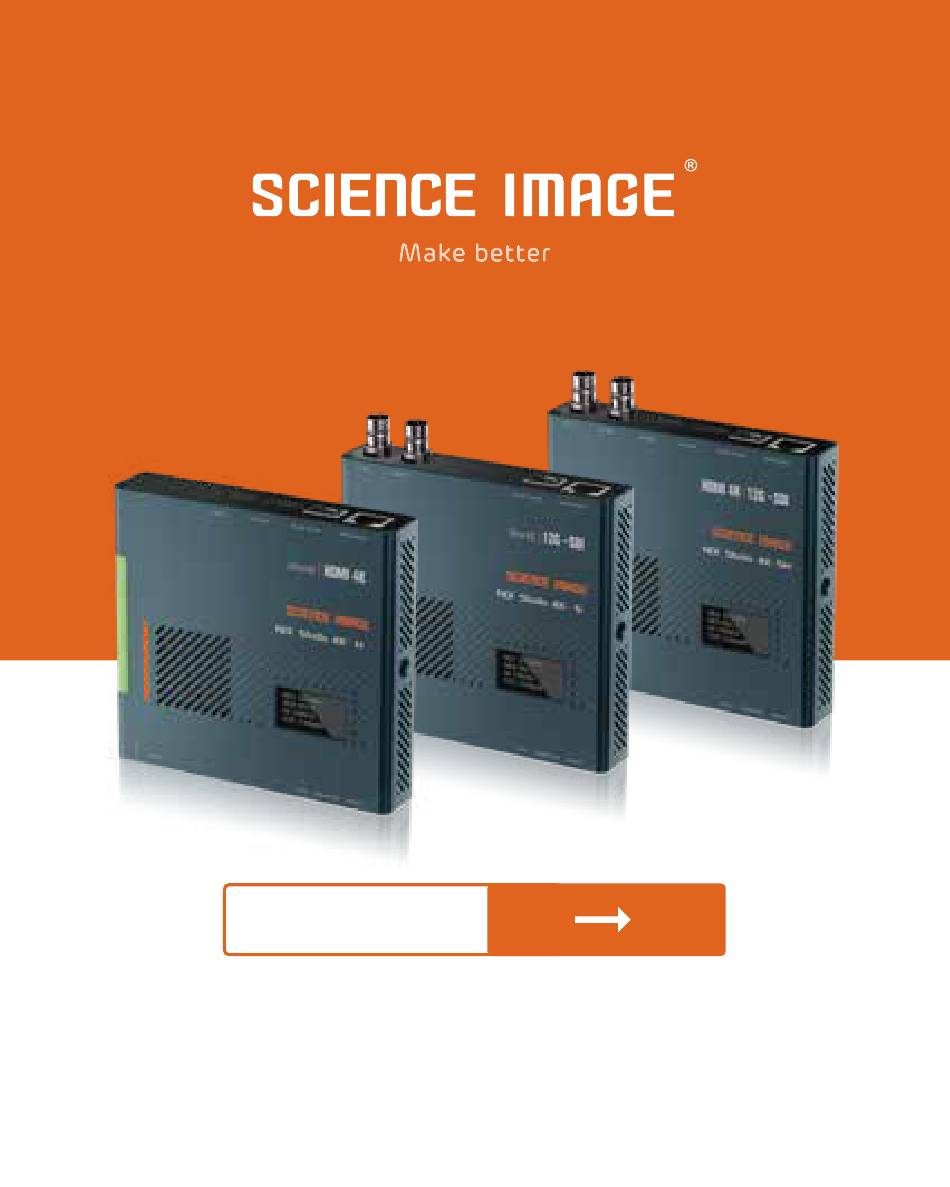

- Page 1 Quick Start NDI Studio 4K SH S H...
- Page 2 NDI Studio 4K Interface and Indicator SDI input 12V DC-IN SDI output Reset factory settings HDMI input LINE IN HDMI output Headset/Intercom Optical input/output USB/PTZ Network port/POE 1 / 4 inch cold hole Tally indicator Power LED...
- Page 3 OLED Display In the coding status, the current status and parameters will be displayed alternately on lines 2, 3 and 4 of the screen It takes about 30 seconds from power on to NDI working nomarly. It takes time for linux system to start and please wait patiently.
- Page 4 Web UI and Control Interface Dashboard There are 6 directories in total: Dashboard, Network, Encoder, Decoder, System and Control The dashboard displays the basic information of the device, such as the format of the input video source, device name, firmware version, etc. you can monitor the working status and operation of the device in real time.
-
Page 5: Get More Information
Get more information For more information and download user manual, please visit http://www.science-image.com/ SCIENCE IMAGE is a trademark of SCIENCE IMAGE Tech. Ltd NDI is a trademark of NewTek, LLC (USA) - Page 6 Always use a certified 802.11 af/at with minimum 10W port power capacity and it's a gigabit network switch. After startup, you will find that the character SCIENCE IMAGE Tech begins to appear on the OLED screen, and the power light on the right starts to light up.
- Page 7 LOGIN IN Open the IE browser, enter the IP address on the OLED screen and enter the Web UI home admin admin page Default user name: Password: If you cannot access the Web UI, please set the IP address of your PC to the SAME ethernet subnet according to the IP address displayed by the OLED.
-
Page 8: Network Setting
The gateway/subnet mask are the Same Subnet, and ensure do not conflict with other addresses in this network. NDI Discovery Server Setting Please refer to the NDI Studio 4K series manual of SCIENCE IMAGE for detailed settings and usage NDI Multicast Setting When Multicast mode is turned on, which is the UDP (Multicast) delivery mode, it has a default Multicast address and a subnet mask. - Page 9 Encoding In NDI encoding mode, users can flexibly set a variety of NDI parameters, such as NDI stream name, picture frame, frame rate, encoding volume, input source priority, Tally display switch, Intercom switch, optical tranceiver turn or off etc. In addition, one of the most important auxiliary functions is that you can convert, transform and output any format you want without affecting NDI coding.
- Page 10 When the bandwidth of the network is not ideal, the bit rate bandwidth of NDI can be adjusted to a minimum of 20M. NDI stream output volume adjustment. 0dB is the initial volume. You can select any background picture as the NDI source as you like or needs. The tally function is turned on by default.
- Page 11 Decoding "Decoder Volume" adjusts the volume of NDI decoding output to display device, such as output to TV, etc. If this device is used as a decoder(OLED will display Decoder), you need to select an NDI source to decoding, and the NDI source name and format being decoded will be displayed on the OLED screen.
-
Page 12: Ptz Control
And the OLED will display the working mode, such as "NDI Encoder" or "NDI Decoder" when you swithing NDI mode. PTZ Control PTZ usage and control methods please see the Manual, please download it on the official website of SCIENCE IMAGE. www.science-image.com... -
Page 13: Updowncross Conversion
UpDownCross Conversion Select any format required by the site. No matter what format the video source input is, it can be easily converted, whether it is NDI stream or SDI / HDMI output, and converted at the same time. Therefore, it can be said that format conversion and NDI coding can be carried out at the same time. - Page 14 Switch of the Intercom function, It needs to be used together with NDI management and Intercom software Laudo from SCIENCE IMAGE. Primary input confirmation of HDMI and SDI input sources. The priority can be switched freely during NDI encoding (when both SDI and HDMI are connected to the video source).
-
Page 15: System Setting
IP will change to 192.168.8.8). For firmware upgrade instructions, please refer to the user manual of NDI studio 4K series released by SCIENCE IMAGE. please download this manual on the official website at www.science-image.com. Click this button will restart device under control on web UI. - Page 16 Hardware restore factory settings︕︕ Press and hold the reset key (in the pinhole of the front panel) and power on the device at the same time. At this time, you can see that the OLED displays "system recover". Release the reset key to start the process of restoring the factory setting. When Tally is green, the factory setting is restored.
- Page 17 Always use a certified 802.11 af/at with minimum 10W port power capacity and it's a gigabit network switch. After startup, you will find that the character SCIENCE IMAGE Tech begins to appear on the Get more information OLED screen, and the power light on the right starts to light up.
- Page 18 A. This is because the decoding device does not select which NDI source to solve. Try to series released by SCIENCE IMAGE. please download this manual on the official website log in to the Web UI, check whether the correct coding source is selected under the at www.science-image.com.
