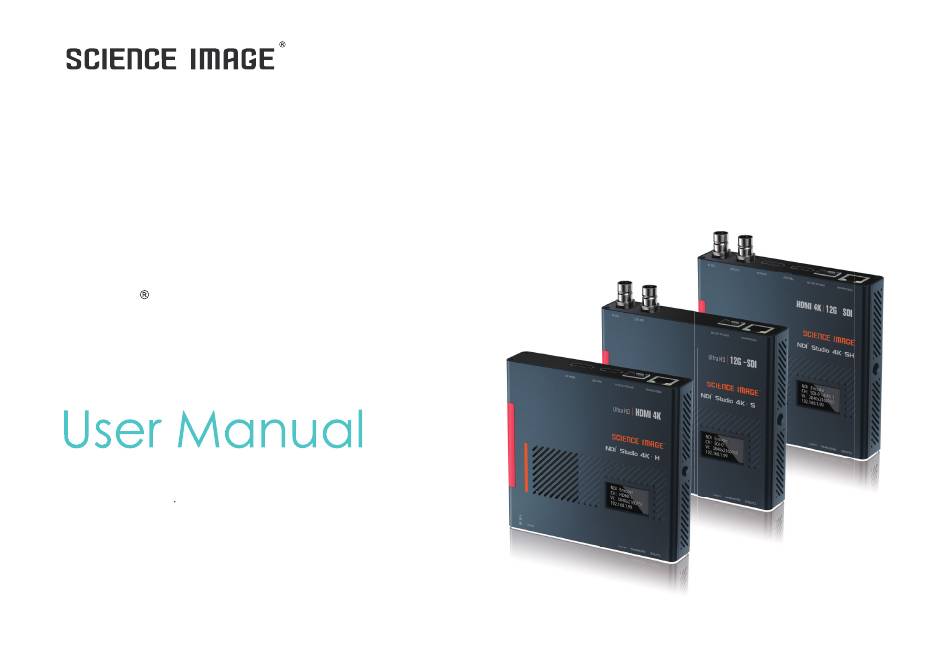

- Page 1 make better FULL NDI Encoding / decoding ® Up down conversion Optical transceiver NDI Studio 4K·H/4K·S/4K·SH The world’s advanced NDI converter with broadcast quality. www.science-image.com May 2021...
- Page 2 Reading before use If you find that some functions are unavailable in future use, you need to check the following to find out whether it is caused by improper operation or settings: 1. This product is an audio and video codec conversion device, which only supports streaming and pushing in the local area network, but not on the Internet. 2.
-
Page 3: Table Of Contents
NDI® Studio 4K interface and indicator Three ways to power on and connect to LAN OLED screen display instructions Login Web UI open the web login page log in Device Information Network settings Modify IP 6.1.1 DHCP mode 6.1.2 Manual mode NDI Discovery server settings NDI Multicast settings NDI Group settings... - Page 4 Restore factory settings Firmware upgrade Working mode switch Device restart Control 10.1 Camera settings 10.2 PTZ control Briefly introduce how to use vMix, Studio Monitor software to view NDI video stream 11.1 How to use vMix to add NDI video stream and view 11.2 How to use Studio Monitor to view NDI video stream contents...
-
Page 5: Ndi® Studio 4K Interface And Indicator
1. NDI®Studio 4K interface and indicator introduction 2. Three ways to power on and connect to LAN ① Use the standard DC-12V power supply of the product to power on, and insert the network cable to connect to the LAN; ②... -
Page 6: Login Web Ui
4. Login Web UI 4.2 login in Username: admin Password: admin Enter the initial login information of the device: Click the [Login] English Chinese or [登录] button to enter the setting interface respectively. 4.1 open the web login page Click [Login] for the English interface, and click [登录] for the Chinese interface. Method 1: Open the login page by entering the IP address of the device in the browser address bar.Open the computer or mobile browser, enter the IP address displayed on the fourth line of the OLED screen of the device in the address bar, and press Enter to enter... -
Page 7: Network Settings
6. Network settings 6.1 Modify IP Click [Network] to enter the network setting page There are two modes for device IP address setting: DHCP and manual. 6.1.1 DHCP mode After filling in the IP address, click the [Apply] button below, and wait for 10 seconds to restart or power on the device to take effect. -
Page 8: Ndi Discovery Server Settings
NDI defaults to public group. If you want to add a new group, separate it with comma ",". You can also create a separate privacy group, such as science image, so that only the device that also fills in the science image can obtain the video information. -
Page 9: Video Format Conversion
7.1 Video format conversion Regardless of the format of the input, by clicking the format below, the output can be converted to the corresponding format. Such conversion will not change the image quality. After selection, it will be green and no conversion is required. The default is Auto. 7.5 Set bitrate (Bandwidth) The adjustment of bit rate can be reduced to save network bandwidth when the requirement of image quality is not very high. -
Page 10: Set Up Tally Lights
7.8 Set up Tally lights Tally light can be turned on or off at any time (there are three display states: yellow/standby, green/pre-monitoring, red/program 7.12 Optical transceiver settings Use the optical fiber interface to transmit, click to open and apply. 7.9 Call switch Call switch, click on - Application to make a call with the supporting guide software Laudo, and click off - Application to turn off the call function. -
Page 11: Select Ndi Source In Decoding State
8.2 Select NDI source to decode in decoding state 9.2 Restore factory settings If this device is used as a decoder, you need to select an NDI source to decode and output. Restoring factory settings can restore the device to its initial state, but the firmware version will not be restored (the factory default Setting steps: IP address of the device is DHCP manual mode. -
Page 12: Working Mode Switch
9.4 Working mode switch Select "encoder" or "decoder" and click the [switch NDI mode] button to immediately switch to the corresponding mode, which is the default encoder mode. The first line of the OLED screen of the product will display the working mode, "NDI encoder" is the encoder, and "NDI decoder" is the decoder, as shown in the figure below. -
Page 13: Control
10. control 10.1 Camera settings Camera type Select the type of camera and click Connect. 11. Briefly introduce how to use vMix and Studio Monitor software to view NDI video stream 11.1 How to use vMix to add NDI video stream and view vMix official download address: "https://www.vmix.com/software/download.aspx"... -
Page 14: How To Use Studio Monitor To View Ndi Video Stream
11.2 How to use Studio Monitor to view NDI video stream Open the Studio Monitor software, click in the upper left corner or right-click anywhere --->【SCIENCEIMAGE】 ---> click the name of the NDI stream you want to view www.science-image.com 14/15... - Page 15 make a better world www.science-image.com 科思图科技 May 2021 www.science-image.com 14/15...
