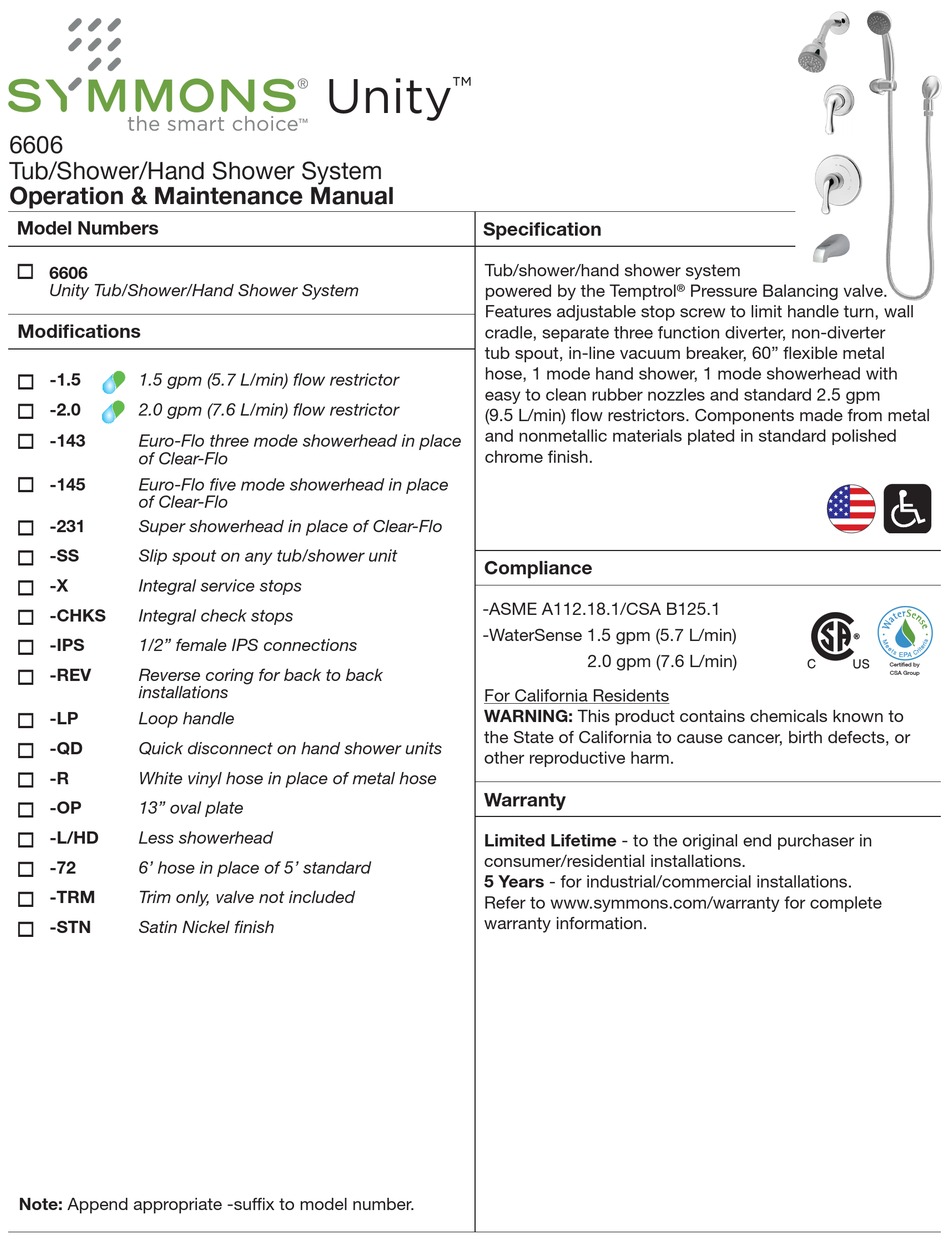

Symmons Unity 6606 Operation & Maintenance Manual

6606
Tub/Shower/Hand Shower System
Operation & Maintenance Manual
Model Numbers

6606
Unity Tub/Shower/Hand Shower System
Modifications
-1.5 1.5 gpm (5.7 L/min) flow restrictor

-2.0 2.0 gpm (7.6 L/min) flow restrictor

 -143 Euro-Flo three mode showerhead in place
of Clear-Flo
 -145 Euro-Flo five mode showerhead in place
of Clear-Flo
-231 Super showerhead in place of Clear-Flo

-SS Slip spout on any tub/shower unit

-X Integral service stops

-CHKS
Integral check stops

-IPS
1/2" female IPS connections

-REV Reverse coring for back to back

installations
-LP
Loop handle

-QD Quick disconnect on hand shower units

-R White vinyl hose in place of metal hose

-OP 13" oval plate

-L/HD
Less showerhead

-72 6' hose in place of 5' standard

-TRM Trim only, valve not included

-STN Satin Nickel finish

Note: Append appropriate -suffix to model number.
Unity
™
Specification

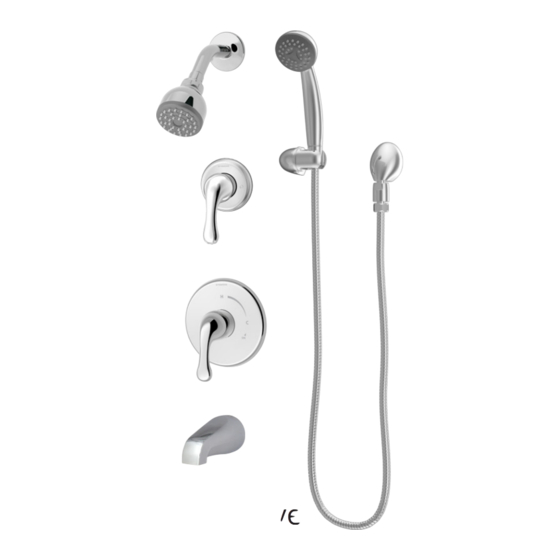

Tub/shower/hand shower system
powered by the Temptrol
Features adjustable stop screw to limit handle turn, wall
cradle, separate three function diverter, non-diverter
tub spout, in-line vacuum breaker, 60" flexible metal
hose, 1 mode hand shower, 1 mode showerhead with
easy to clean rubber nozzles and standard 2.5 gpm
(9.5 L/min) flow restrictors. Components made from metal
and nonmetallic materials plated in standard polished
chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm (5.7 L/min)
For California Residents
WARNING: This product contains chemicals known to
the State of California to cause cancer, birth defects, or
other reproductive harm.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Pressure Balancing valve.
®
2.0 gpm (7.6 L/min)
Certi ed by
CSA Group
