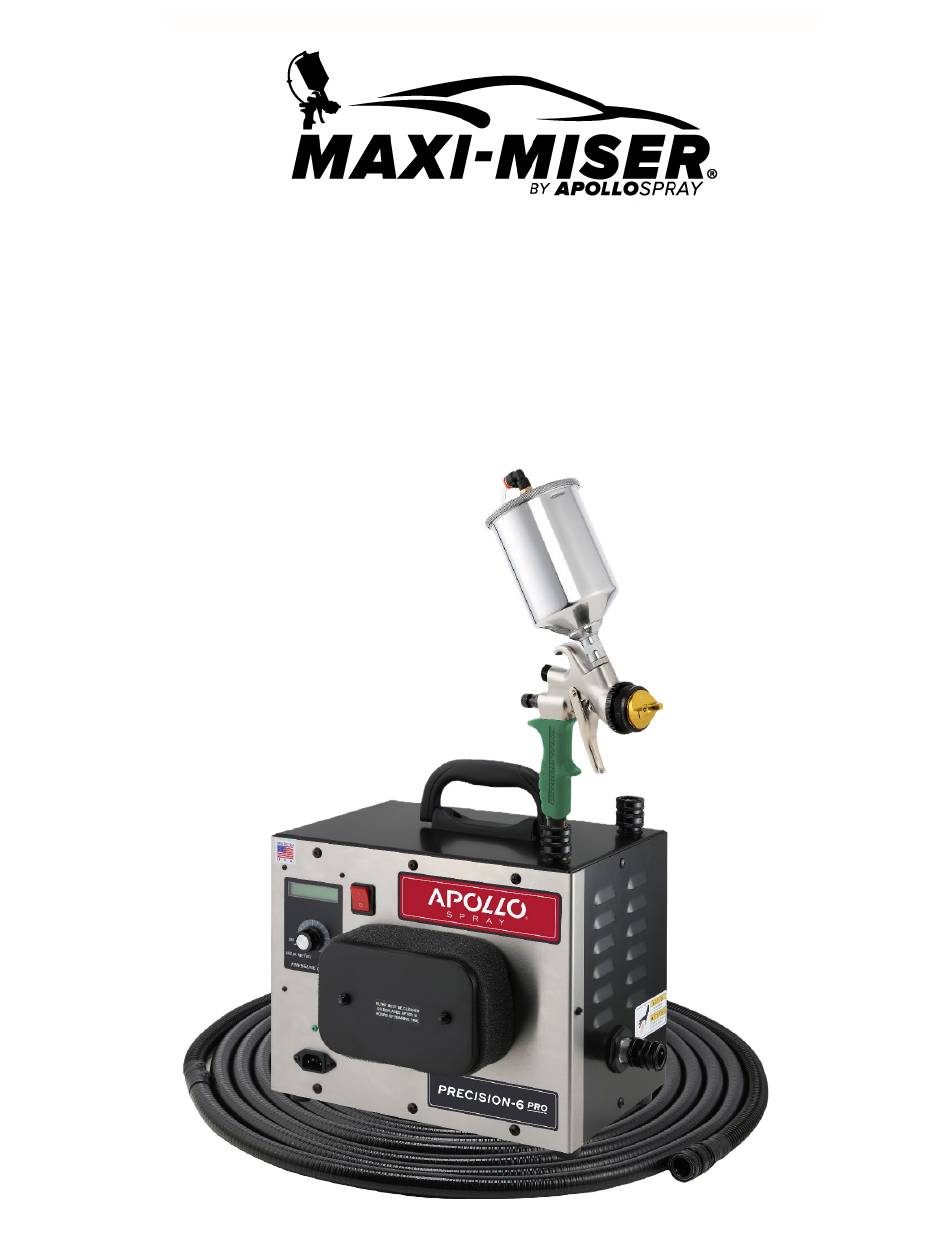

- Page 1 PRECISION-6 PRO Auto Turbine Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents Safety..............................3 TrueHVLP™ Spray Finishing System....................5 How Your HVLP Turbine System Works ...................5 How Your Spray Gun Works......................5 Preparing to Use Your HVLP Turbine System...................6 Familiarize Yourself with Your True HVLP™ Turbine Spray Gun............6 Get to Know Your Turbine .........................6 Apollo Turbine Model Precision-6 PRO….. -
Page 3: Safety
1 Safety Read all instructions and safety precautions before operating the unit. Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. - Page 4 NOTICE • Tipping the spray gun causes the spray gun to clog. Dried spray material also clogs the pressure delivery tube and fittings. The spray gun does not function when clogging occurs. • When not in use, be sure to disconnect the hose and place the spray gun into the Handi-Hold™ Docking Station on the turbine to avoid tipping.
-
Page 5: Truehvlp™ Spray Finishing System
2 TrueHVLP™ Spray Finishing Systems CONGRATULATIONS!! You’ve just purchased the finest HVLP air turbine system available, and you are about to enjoy the great benefits of Apollo TrueHVLP™ technology. Our designs are the result of many years’ experience in the manufacturing of HVLP turbine systems, and HVLP spray guns. -
Page 6: Preparing To Use Your Hvlp Turbine System
2.3 Preparing To Use Your HVLP Turbine System Connect the air hose to the turbine. Pull back the spring loaded quick disconnect coupler and insert the male connector on the air hose into the turbine connector. Release the ring. Your air hose will be locked into place. To release the air hose, pull back on the spring loaded quick coupler ring with your fingers and pull. -
Page 7: Apollo Turbine Model Precision-6 Pro
3 Apollo Turbine Model Precision-6 PRO The model Precision-6 PRO is the newest Precision Series turbine system by Apollo Sprayers International, Inc. Apollo’s Precision Air Control Technology (PACT) allows you to control the air pressure from the turbine to within 1/10th of a PSI. Besides the ability to control your air supply the P6 model also has built in filter warning, overheat control and a digital hour meter. - Page 8 overspray, decrease the pressure. Page 8...
-
Page 9: Know Your Coatings
The Precision-6 PRO also has four patented features: 1. Filter warning system - The filter warning system works to help prevent overheating your motor by warning you when the filters are not allowing ample cooling air to the motor. To prevent damage to the motor the turbine will shut itself down if it gets too hot. -
Page 10: Your Choice Of Coatings And Viscosity
4.2 Your Choice of Coatings and Viscosity Extremely thin, watery or light bodied fluids such as inks, aniline dyes and oil stains can generally be used straight from t he can. RTS or Ready to Spray water-based finishing products are formulated to be used straight from the can without thinning with a 3 stage or larger turbine. -
Page 11: Record Of Turbine Use
Record Of Turbine Use Record Of Turbine Use Model Serial # Date Purchased Date Hours Of Use Total Hours Turbine Recommended Maintenance: Clean and/or change pre-filters and/or cartridge filters every 50 hours or when necessary. See Accessories Page for appropriate filter replacement for your model. 7 Record Of Turbine Maintenance Record Of Turbine Maintenance Date... -
Page 12: Turbine Maintenance And Cleaning
8 Turbine Maintenance and Cleaning Always unplug your turbine from the main electrical supply before doing any maintenance or repairs. After Each Use: Your Apollo turbine system requires very little maintenance. The turbine motor has sealed bearings that are lubricated for life. -
Page 13: Filter Maintenance
8.2 Filter Maintenance Visually check your filters every 10 hours and when you remove your pre-filters for cleaning. Check for accumulated material in the filter element. If you suspect they may be dirty, or if you can see material building up, don’t take a chance, remove the filter and hold it up to the light. -
Page 14: Important Brush Maintenance
8.3 IMPORTANT Brush Maintenance For the longevity of the motor carbon brushes MUST be replaced every 200-300 running hours. Motor warranty will be voided if brushes are not replaced within 400 running hours. Arrange for service at designated Apollo service center at https://hvlp.com/warranty-non-warranty-repair-request/ or call (888) 900-4857. -
Page 15: Genuine Apollo Accessories
10 Genuine Apollo Accessories 4500–2 Quart (2 Liter) 4550 –Mobile Cart and Fluid Feed System #A4500 Fluid Feed System #A4550 Designed to be used with Apollo PRECISION-5 PRO LE Designed to be used with Apollo PRECISION-5 turbine systems. PRO LE turbine systems. Excellent in the shop or on site. - Page 16 A4096 - Pre-Filters A4098 - Replacement Filters Fluid Hoses FS1900 – Deluxe Cleaning Kit A2113 - 6’ (2m) x 1/4” (6mm) fluid hose with couplers A2059 - 20’ (6m) x 1/4” (6mm) fluid hose with couplers A2060 - 40’ (12m) x 1/4” (6mm) fluid hose with couplers A2114 - 6’...
- Page 17 FS 1670 - Filter Stand, Fits 1 & 2 Quart (1 & 2 Liter) Cups. A5251 - 1 Quart (1 Liter) Cup Assembly Gravity Cup Assemblies A5269 - 8oz (250ml) Cup Assembly A7555A - non-teflon 90cc cup assembly A5033A – non-teflon 250cc cup assembly A5034A –...
-
Page 18: Warranty
2 + 3 Year Limited Warranty All PRECSION-6 PRO paint spray system is WARRANTED by APOLLO SPRAYERS INTERNATIONAL, INC. for a total period of TWO YEARS from the ORIGINAL date of purchase by the ORIGINAL PURCHASER. Proof of purchase to be included and all SHIPPING CHARGES to be pre-paid.
