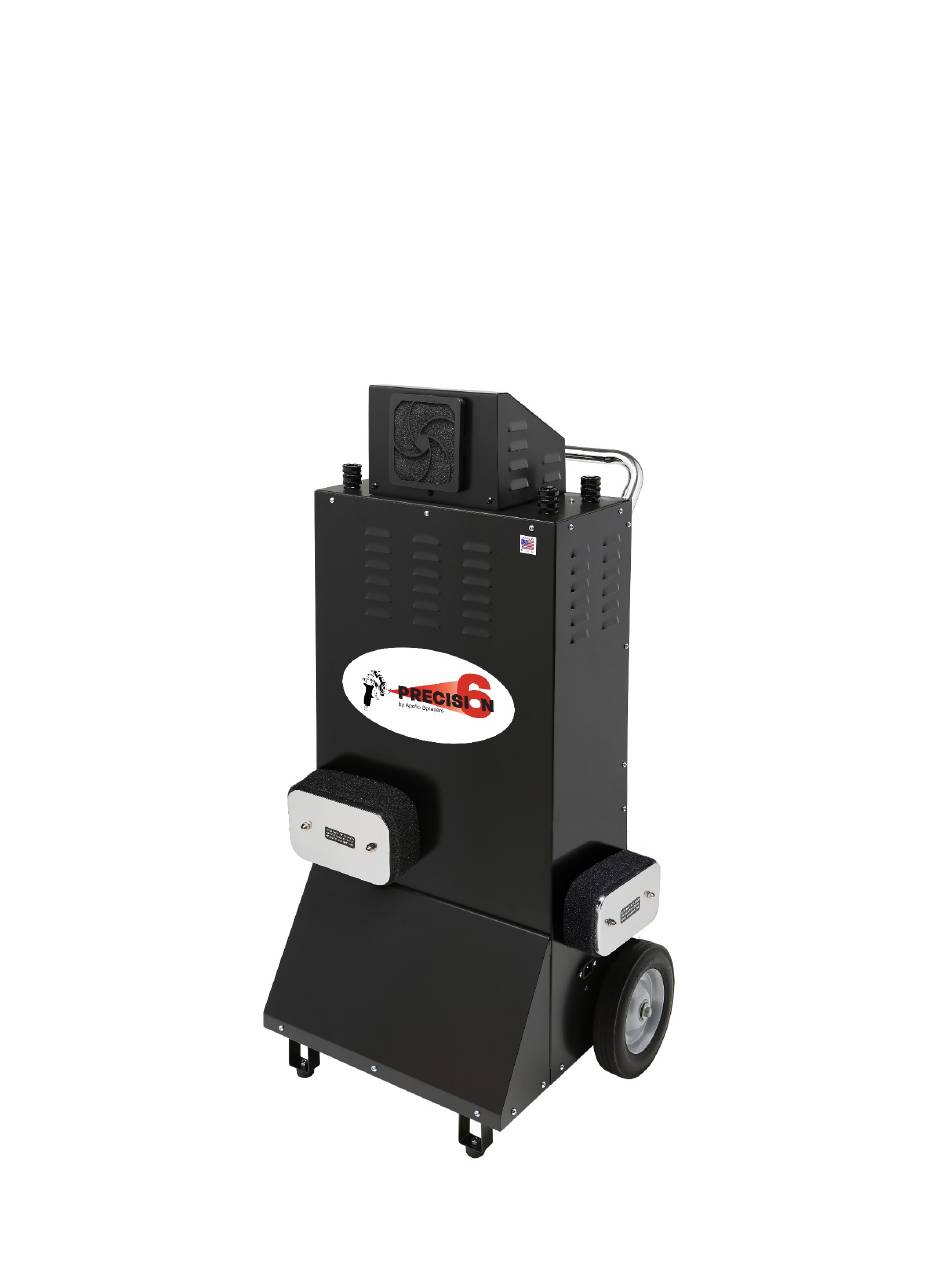

- Page 1 Apollo Sprayers PRECISION-6 Turbine Instruction Manual...
-
Page 2: Table Of Contents
Preparing To Use Your HVLP Turbine System........................6 Familiarize Yourself With Your True HVLP™ Turbine Spray Gun..................6 Get To Know Your Turbine ..............................6 Apollo Turbine Model Precision-6 ............................7 Know Your Coatings ................................8 Coating Properties……................................. 8 Your Choice of Coatings and Viscosity ……......................... 8 Technique.................................... -
Page 3: Safety
1 Safety Read all instructions and safety precautions before operating the unit. Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. - Page 4 NOTICE Tipping the spray gun causes the spray gun to clog. Dried spray material also clogs the pressure delivery • tube and fittings. The spray gun does not function when clogging occurs. • When not in use, be sure to disconnect the hose and place the spray gun into the Handi-Hold™ Docking Station on the turbine to avoid tipping.
-
Page 5: Truehvlp™ Spray Finishing Systems
TrueHVLP™ spray system. Check the contents of your box. The following are included: (1) Precision-6 Turbine Unit (1) Spray Gun Lube (1) TrueHVLP™ Spray Gun (1) Cleaning Brush (1) 37’... -
Page 6: Preparing To Use Your Hvlp Turbine System
2.5 Get To Know Your Turbine Handi-Hold™ Spray Gun Docking Station Every Precision-6 turbine comes equipped with 4 x Handi-Hold™ Spray Gun Docking Stations (A), Apollo’s smart innovation. Store, hold or transport your spray gun in a vertical position with no risk of it falling over. Ready to spray when you are. Disconnect hose from spray gun and insert coupler into the Handi-Hold™... -
Page 7: Apollo Turbine Model Precision-6
Your system is now connected. To control the air pressure on the Precision-6 turbine, connect the spray gun and air hose with the turbine. Plug the turbine into a 240 volt power supply. Rotate the control knob to the left hand side to the “Hour Meter” position. Push the ON/OFF switch to the ON position. -
Page 8: Know Your Coatings
Normal triggering of the spray gun during a pass will prevent the turbo system from entering “IDLE MODE”. *All turbine pressures quoted are measured sealed and at the motor outlet. Actual spraying pressures will vary depending on the model and size of the turbine. 4 Know Your Coatings 4.1 Coating Properties Coatings are a blend of resins and additives to create a product that will provide a protective and beautifying surface to your... - Page 9 Chart B Nozzle, Needle And Air Caps For 7500 Series Spray Guns Tip/Needle Size Application Air Cap 0.8MM (.029) Inks, Dyes, Stains, extremely thin viscosity fluids, Water based finishes 1.0MM (.039) All purpose, thin lacquers, thin enamels, Water based finishes, Automotive, Marine, Airplane finishes 1.3MM (.051) All purpose, thin lacquers, thin enamels, Water based finishes, Automotive, Marine, Airplane finishes...
- Page 10 Chart C Viscosity Viscosity Cup Coating Thin/Reduce Comparison Chart Lacquers 25%-50% Sanding Sealer 20%-30% ZAHN #2 FORD # 4 Enamels 20%-40% Stains use from can Acrylic Enamel 50%-60% Catalyzed Polyurethane 10%-30% Polyurethane's Varnishes 20%-30% Waterborne Coatings 00%-10% Latex/Emulsion Paint 10%- 40% Note: Chart C should be used as a guide to thinning various coatings.
-
Page 11: Technique
4.3 Technique Like any skill, practice makes perfect. Never try to rush the spray finishing process. Learn the characteristics of the coating you will be spraying. Build up layers of material (3-4 applications or more if necessary). Sand between coats and allow proper drying time between applications. -
Page 12: Using Pressure Pots With Turbine Systems
5 Using Pressure Pots With Turbine Systems There are many advantages to using pressure pots with a turbine system. Apollo Sprayers have made this very easy with our fluid feed systems, 4500 and 4550. Refer to the accessories section of this manual for more information on these and other products. -
Page 13: Testing Air Pressure In Pressure Pot
5.1 Testing Air Pressure In Pressure Pot It is necessary to test the air pressure in the pressure pot to make sure that it is appropriate for the viscosity of material being sprayed and the situation in which it is being sprayed. You don’t want the material coming out too quickly so that you get runs and sags, but you also don’t want it to come out too slowly so that you are spraying very slowly. -
Page 14: Record Of Turbine Use
Record Of Turbine Use Record Of Turbine Use Model Serial # Date Purchased Date Hours Of Use Total Hours Turbine Recommended Maintenance: Clean and/or change pre-filters and/or cartridge filters every 50 hours or when necessary. See Accessories Page for appropriate filter replacement for your model. 7 Record Of Turbine Maintenance Record Of Turbine Maintenance Date... -
Page 15: Turbine Maintenance And Cleaning
8 Turbine Maintenance and Cleaning Always unplug your turbine from the main electrical supply before doing any maintenance or repairs. After Each Use: Your Apollo turbine system requires very little maintenance. The turbine motor has sealed bearings that are lubricated for life. -
Page 16: Filter Maintenance
8.2 Filter Maintenance Visually check your filters when you remove your pre-filters for cleaning. Check for accumulated material in the filter element. If you suspect they may be dirty, or if you can see material building up, don’t take a chance, remove the filter and hold it up to the light. -
Page 17: Running Multiple Spray Guns With A Turbine
9 Running Multiple Spray Guns With A Turbine All current Apollo Turbine Models have one air hose outlet on the side of the unit and are designed to run one spray gun. It is possible to run a multi-stage turbine system with two spray guns at the same time by installing an garden hose “Y” connector, to the turbine outlet port. -
Page 18: Genuine Apollo Accessories
10 Genuine Apollo Accessories 4500–2 Quart (2 Liter) Fluid Feed System #A4500 Excellent in the shop or on site. Perfect for that larger job when a quart (liter) is just not enough or when greater spray gun mobility is needed to get into a tight corner. Includes: oil-less mini air compressor, 2 quart (2 liter) non-stick coated pressure pot with stainless steel material tube, 20’... - Page 19 Pre-Filters Replacement Filters: Part number: #A4096 Part number: A4098 Fluid Hoses A2113 - 6’ (2m) x 1/4” (6mm) fluid hose with couplers A2059 - 20’ (6m) x 1/4” (6mm) fluid hose with couplers A2060 - 40’ (12m) x 1/4” (6mm) fluid hose with couplers A2114 - 6’...
- Page 20 FS 1670 - Filter Stand, Fits 1 & 2 Quart (1 & 2 Liter) Cups. A5251 - 1 Quart (1 Liter) Cup Assembly A5269 - 8oz (250ml) Cup Assembly A5033A – non-teflon 250cc cup assembly A5033AT – teflon 250cc cup assembly A5034A –...
-
Page 21: Warranty
Warranty. No representative or person is authorized to extend this Warranty or to create for APOLLO SPRAYERS INTERNATIONAL, INC. any other liability in connection with the sale of any APOLLO SPRAYERS product. APOLLO SPRAYERS INTERNATIONAL, INC.
