- Page 1 Apollo Sprayers PRECISION-5 PRO LE Turbine Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents Safety....................................3 TrueHVLP™ Spray Finishing Systems ..........................5 How Your HVLP Turbine System Works .......................... 5 How Your Spray Gun Works .............................. 5 Preparing to Use Your HVLP Turbine System........................6 Familiarize Yourself with Your True HVLP™ Turbine Spray Gun..................6 Get to Know Your Turbine .............................. -
Page 3: Safety
1 Safety Read all instructions and safety precautions before operating the unit. Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. - Page 4 NOTICE Tipping the spray gun causes the spray gun to clog. Dried spray material also clogs the pressure delivery tube and fittings. The spray gun does not function when clogging occurs. When not in use, be sure to disconnect the hose and place the spray gun into the Handi-Hold™ Docking Station on the turbine to avoid tipping.
-
Page 5: Truehvlp™ Spray Finishing Systems
2 TrueHVLP™ Spray Finishing Systems CONGRATULATIONS!! You have just purchased the finest HVLP air turbine system available. You are about to enjoy the great benefits of TrueHVLP™. Our designs are the result of many years’ experience in manufacturing HVLP turbine systems, and HVLP spray guns. -
Page 6: Preparing To Use Your Hvlp Turbine System
2.3 Preparing To Use Your HVLP Turbine System Connect the air hose to the turbine. Pull back the spring loaded quick disconnect coupler and insert the male connector on the air hose into the turbine connector. Release the ring. Your air hose will be locked into place. To release the air hose, pull back on the spring loaded quick coupler ring with your fingers and pull. -
Page 7: Apollo Turbine Model Precision-5 Pro Le

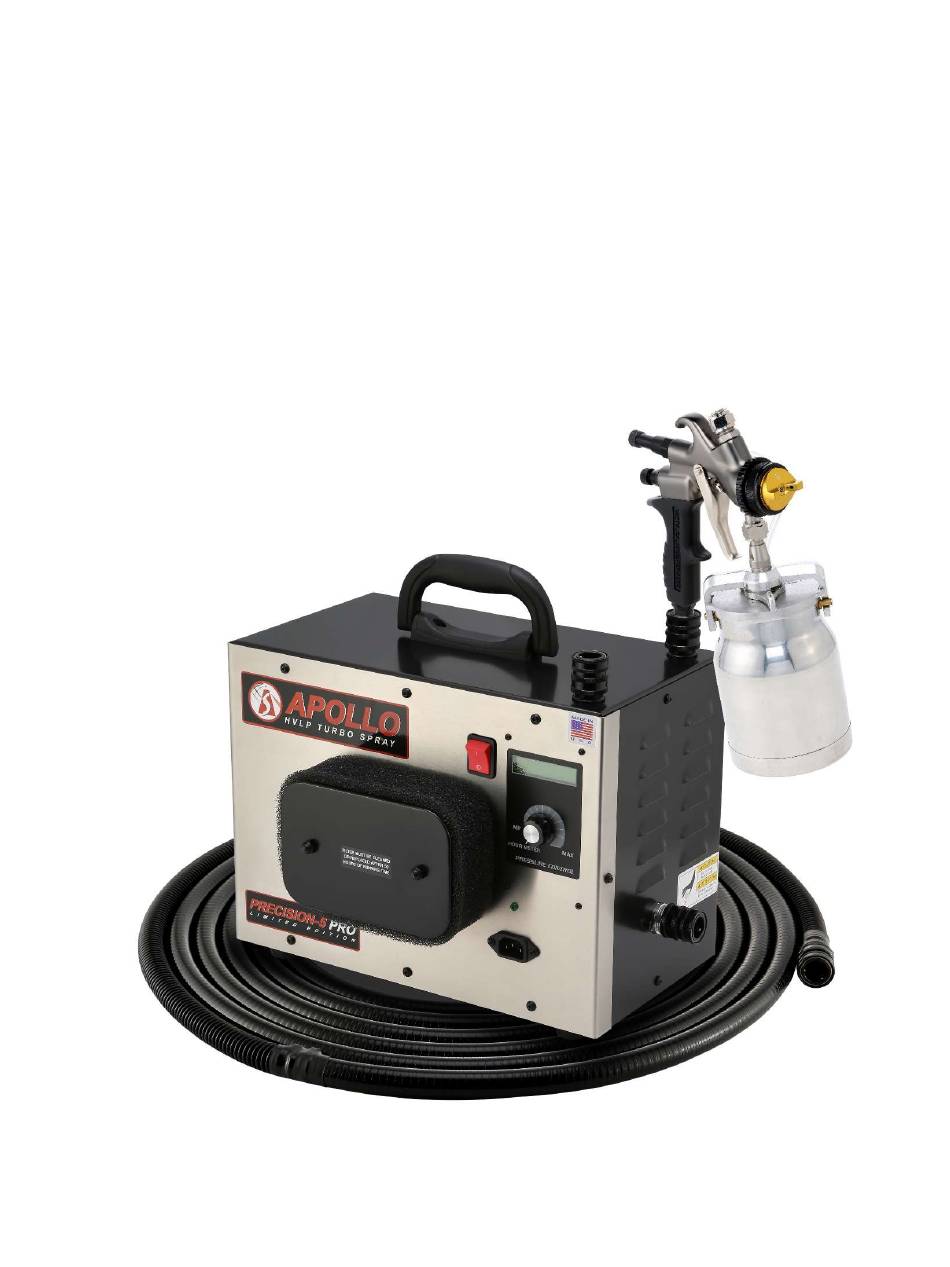

3 Apollo Turbine Model Precision-5 PRO LE The model Precision-5 PRO LE is the newest Precision Series turbine system by Apollo Sprayers International, Inc. Apollo’s Precision Air Control Technology (PACT) allows you to control the air pressure from the turbine to within 1/10th of a PSI. Besides the ability to control your air supply the PRO LE model also has built in filter warning, overheat control and a digital hour meter. -
Page 8: Know Your Coatings
The Precision-5 PRO also has four patented features: 1. Filter warning system - The filter warning system works to help prevent overheating your motor by warning you when the filters are not allowing ample cooling air to the motor. To prevent damage to the motor the turbine will shut itself down if it gets too hot. - Page 9 Chart A - Turbine Performance Turbine Size Sealed Air Pressure Coating Types 3 STAGE 7.0 PSI Low-Medium Viscosity Materials 4 STAGE 9.0 PSI Low-High Viscosity Materials 5 STAGE 10.0 PSI Low-High Viscosity Materials Using Latex (Emulsion) Paint Although your turbine spray system is best suited to spray Class A Finish coatings such as lacquers, enamels, urethanes, varnishes, waterborne and water base etc., you can spray latex (emulsion) house paint if you follow a few simple rules.
- Page 10 Chart C - Viscosity Coating Thin/Reduce Viscosity Cup Comparison Chart Lacquers 25%-50% Sanding Sealer 20%-30% ZAHN #2 FORD # 4 Enamels 20%-40% Stains use from can Acrylic Enamel 50%-60% Catalyzed Polyurethane 10%-30% Polyurethane's Varnishes 20%-30% Waterborne Coatings 00%-10% Latex/Emulsion Paint 10%- 40% Note: Chart C should be used as a guide to thinning various coatings.
-
Page 11: Technique
4.3 Technique Like any skill, practice makes perfect. Never try to rush the spray finishing process. Learn the characteristics of the coating you will be spraying. Build up layers of material (3-4 applications or more if necessary). Sand between coats and allow proper drying time between applications. -
Page 12: Using Pressure Pots With Turbine Systems
5 Using Pressure Pots with Turbine Systems There are many advantages to using pressure pots with a turbine system. Apollo Sprayers have made this very easy with our fluid feed systems, 4500 and 4550. Refer to the accessories section of this manual for more information on these and other products. -
Page 13: Testing Air Pressure In Pressure Pot
5.1 Testing Air Pressure In Pressure Pot It is necessary to test the air pressure in the pressure pot to make sure that it is appropriate for the viscosity of material being sprayed and the situation in which it is being sprayed. You don’t want the material coming out too quickly so that you get runs and sags, but you also don’t want it to come out too slowly so that you are spraying very slowly. -
Page 14: Record Of Turbine Use
Record of Turbine Use Record Of Turbine Use Model Serial # Date Purchased Date Hours Of Use Total Hours Turbine Recommended Maintenance: Clean and/or change pre-filters and/or cartridge filters every 50 hours or when necessary. See Accessories Page for appropriate filter replacement for your model. 7 Record of Turbine Maintenance Record Of Turbine Maintenance Date... -
Page 15: Turbine Maintenance And Cleaning
8 Turbine Maintenance and Cleaning Always unplug your turbine from the main electrical supply before doing any maintenance or repairs. After Each Use: Your Apollo turbine system requires very little maintenance. The turbine motor has sealed bearings that are lubricated for life. -
Page 16: Filter Maintenance
8.2 Filter Maintenance Visually check your filters every 10 hours and when you remove your pre-filters for cleaning. Check for accumulated material in the filter element. If you suspect they may be dirty, or if you can see material building up, don’t take a chance, remove the filter and hold it up to the light. -
Page 17: Important Brush Maintenance
8.3 IMPORTANT Brush Maintenance For the longevity of the motor carbon brushes MUST be replaced every 200-300 running hours. Warranty will be voided if brushes are not replaced within 400 running hours. Arrange for service at designated Apollo service center at https://hvlp.com/warranty-non-warranty-repair-request/ or call (888) 900-4857. -
Page 18: Model 4500
10 Model 4500 Page 18... - Page 19 Diagram # Part # Description Quantity A4501 Compressor Deck A4198 110v Mini Compressor Unit A4320 1/4" X 20 X 1/2" Hex Bolt Plated .5. A4300 1/4" SAE F/W Plated Washer A4308 1/4" X 20 Hex Nuts Plated A9016 Rubber Foot A4998 Pressure Regulator A4503...
-
Page 20: Model 4550
11 Model 4550 IRING DIAGRAM MODEL 4550 Page 20... - Page 21 Diagram # Part # Description Quantity A4554 Cart Base Plate Paint Blue A4555 Cart Axle (Zinc Plated A4556 Wheel Spacer (6061 Alum.) A4558 10” X 1 ¾” Wheel A4374 ½” Axle Cap A4551 Frame Tube (Chrome) A4559 Rubber Tip For Frame Tube A4560 Handle Button A4364...
-
Page 22: Genuine Apollo Accessories
10 Genuine Apollo Accessories 4500–2 Quart (2 Liter) 4550 –Mobile Cart and Fluid Feed System #A4500 Fluid Feed System #A4550 Designed to be used with Apollo turbine systems: Models Power-3, Power-4, Power-5 and 900. Designed to be used with Apollo turbine systems: Models Power-3, Power-4, Power-5, and 900. - Page 23 Handi-Hold™ Spray Gun Docking Station #A5326 A4096 - Pre-Filters A4098 - Replacement Filters Fluid Hoses A2113 - 6’ (2m) x 1/4” (6mm) fluid hose with couplers A2059 - 20’ (6m) x 1/4” (6mm) fluid hose with couplers A2060 - 40’ (12m) x 1/4” (6mm) fluid hose with couplers A2114 - 6’...
- Page 24 FS 1670 - Filter Stand, Fits 1 & 2 Quart (1 & 2 Liter) Cups. A5251 - 1 Quart (1 Liter) Cup Assembly A7555A - non-teflon 90cc cup assembly A5269 - 8oz (250ml) Cup Assembly A5033A – non-teflon 250cc cup assembly A5034A –...
-
Page 25: Warranty
2 + 3 Year Limited Warranty All PRECSION-5 turbo paint spray system is WARRANTED by APOLLO SPRAYERS INTERNATIONAL, INC. for a total period of TWO YEARS from the ORIGINAL date of purchase by the ORIGINAL PURCHASER. Proof of purchase to be included and all SHIPPING CHARGES to be pre-paid.
