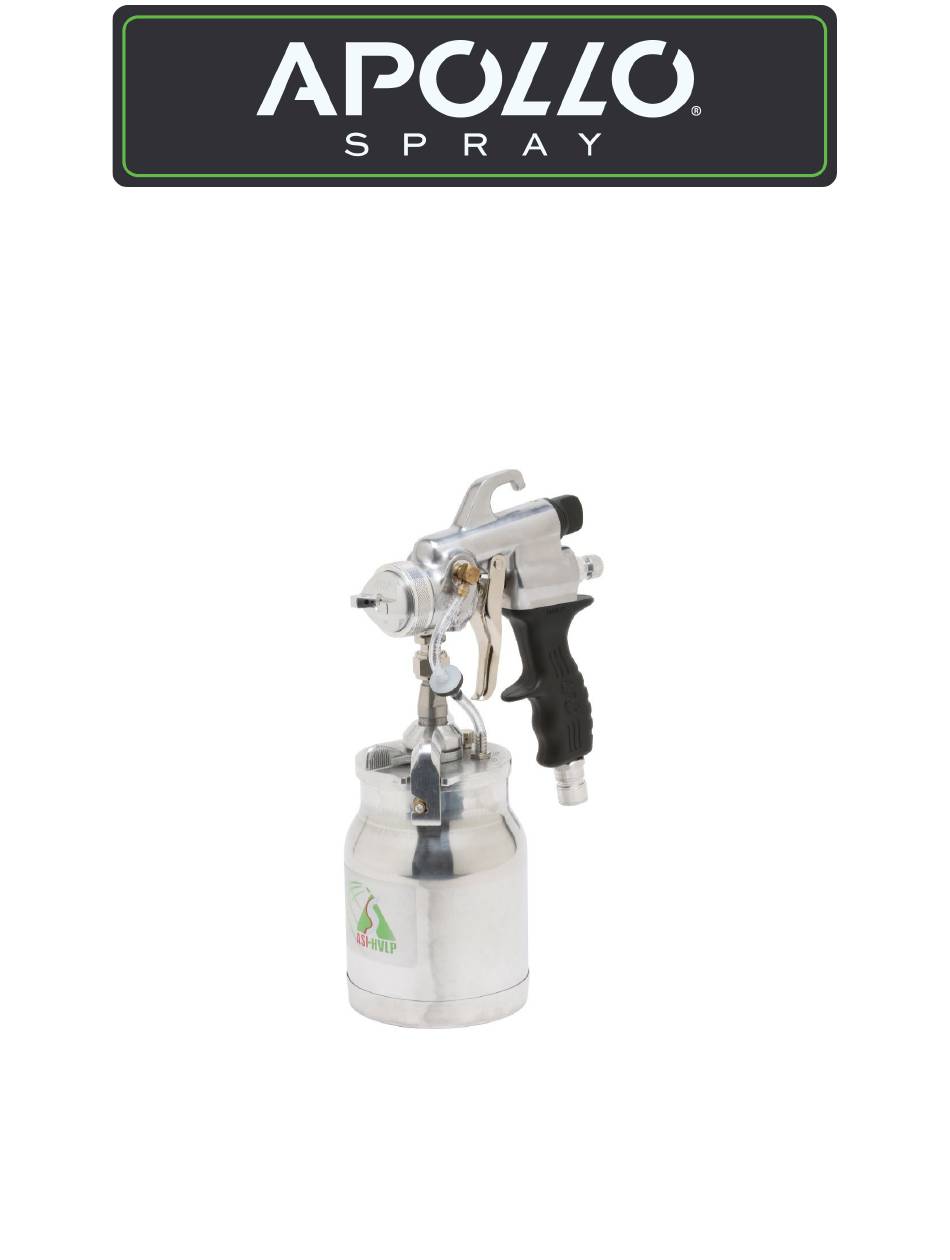

- Page 1 E7000 Spray Gun Instruction Manual This manual contains important warnings and instructions. Please read these instructions carefully and keep for your reference. ©2023 Apollo Sprayers International, Inc.
- Page 2 Table of Contents 1. Safety ................................. 2 2. E5011 HVLP Spray Guns ........................... 3 3. How Your E5011 Spray Gun Works ......................3 4. E5011 Spray Gun Cup ..........................3-4 5. Operating Your E5011 Spray Gun ......................... 5 5.1. Knowing Your Coating ........................5-6 5.2.
- Page 3 1. WARNING *DO NOT USE EQUIPMENT BEFORE READING THIS SECTION* In order to assure safe operation of your spray system, please read the following instructions carefully. • Always follow solution manufacturer’s safety instructions and warnings. • Always spray in a well-ventilated area. •...
- Page 4 E7000 spray gun offers you many options. You can turn the air cap ( #1-2) to two positions. One will produce a horizontal pattern for spraying across, another will produce a vertical pattern for spraying up and down.
- Page 5 Attach the spray gun to the air hose and the other end of the air hose to the turbine. Turn the turbine unit on. The E7000 spray gun is a non-bleeder spray gun, which means you will not have any air flowing through the spray gun until you pull the trigger.
- Page 7 SPRAY GUN MAINTENANCE AND CLEANING You do not need to clean your spray gun every time you stop spraying. Either set the spray gun down carefully so as not to tip it over, or hang it by the hook provided on the spray gun. You should, however, clean your spray gun at the end of a work session or at the end of the day.
-
Page 8: Troubleshooting
TROUBLESHOOTING 1. Material cup full, turbine air is supplied to the spray gun. Trigger is pulled and no solution comes out - Reason: Cup not pressurizing. Check: Air Feed Tube/one way air valve Air Feed Connector Cup top gasket is not damaged. 2. - Page 10 Warranty. No representative or person is authorized to extend this Warranty or to create for APOLLO SPRAYERS INTERNATIONAL, INC. any other liability in connection with the sale of any APOLLO SPRAYERS product. APOLLO SPRAYERS INTERNATIONAL, INC. shall not be liable for any consequential, incidental, or special damages of any kind directly or indirectly resulting from breach of any express or implied Warranty.
