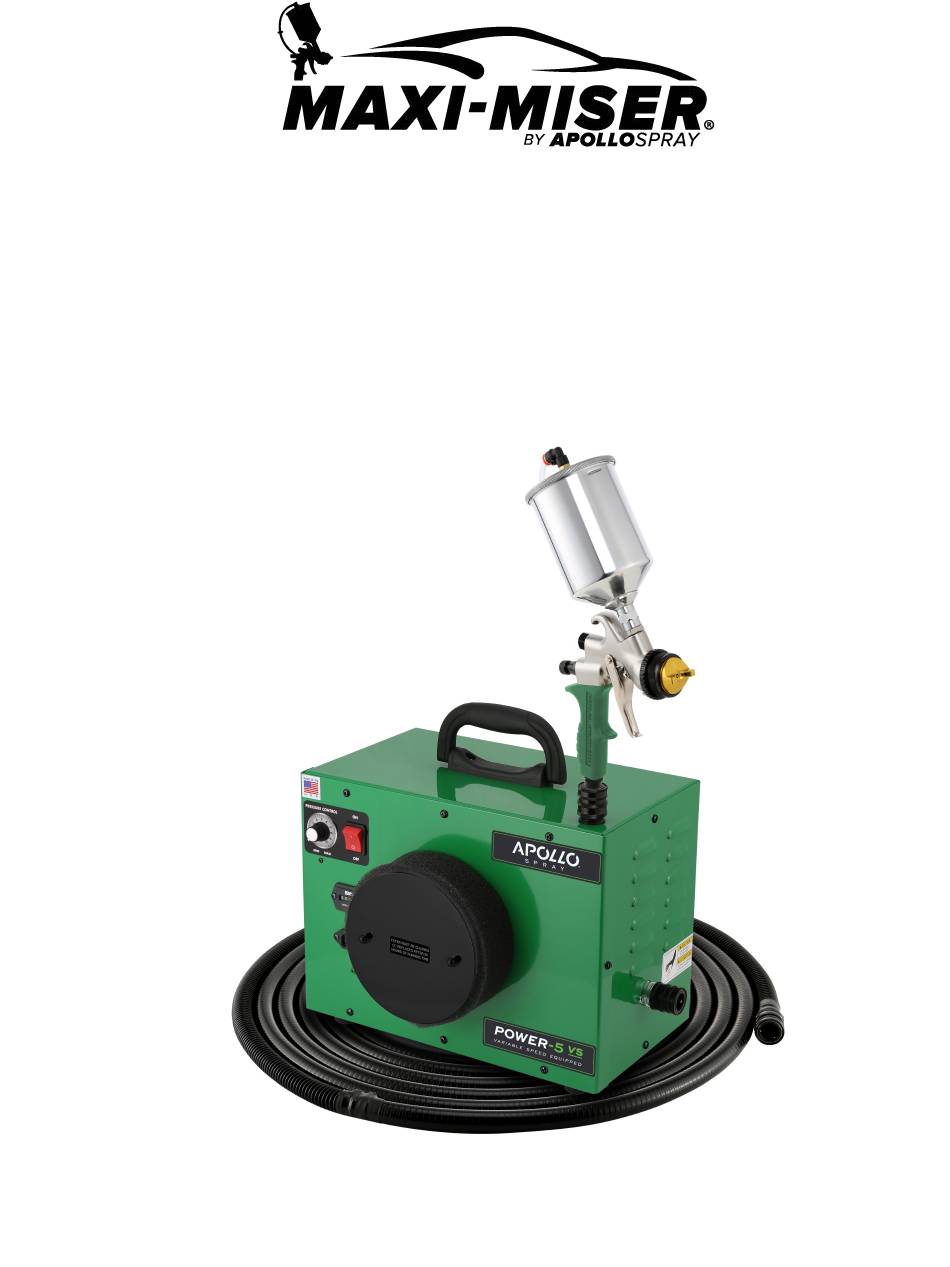

- Page 1 POWER 5 VS AUTO Turbine Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety................................. 1 2 True HVLP™ Spray Finishing Systems ....................3 2.1 How Your HVLP Turbine System Works....................3 2.2 How Your Spray Gun Works ........................3 2.3 Preparing To Use Your HVLP Turbine ....................4 2.4 Familiarize Yourself With Your True HVLP™ Turbine Spray Gun ............4 2.5 Get To Know Your Turbine ........................ -
Page 3: Safety
1 Safety Read all instructions and safety precautions before operating the unit. Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury. - Page 4 NOTICE • Tipping the spray gun causes the spray gun to clog. Dried spray material also clogs the pressure delivery tube and fittings. The spray gun does not function when clogging occurs. • When not in use, be sure to disconnect the hose and place the spray gun into the Handi-Hold™ Docking Station on the turbine to avoid tipping.
-
Page 5: Truehvlp™ Spray Finishing Systems
2 TrueHVLP™ Spray Finishing Systems CONGRATULATIONS!! You have just purchased the finest HVLP air turbine system available. You are about to enjoy the great benefits of TrueHVLP™. Our designs are the result of many years of experience in manufacturing HVLP turbine systems, and HVLP spray guns. -
Page 6: Preparing To Use Your Hvlp Turbine
delivered from the air cap and projects a fine atomized mist to your work piece. Spray pattern control will vary depending on the spray gun model. Consult your individual spray gun manual for detailed operation and maintenance of your spray gun. 2.3 Preparing To Use Your HVLP Turbine System Connect the air hose to the turbine. -
Page 7: Apollo Hvlp Turbines
Hour Use Meter All Power Series turbines are fitted with an hour use meter (B). Use this meter in conjunction with the Record of Turbine Maintenance at the end of this manual. Using the hour meter will help you maintain your turbine better and keep your system running in good condition. -
Page 8: Know Your Coatings
4 Know Your Coatings 4.1 Coating Properties Coatings are a blend of resins and additives to create a product that will provide a protective and beautifying surface to your work piece. Different resins have different properties. It is important to use the correct coating to achieve a desired result. Manufacturers of coatings can control the resin solids content, production viscosity, sheen, color, flow-out enhancement and other properties. -
Page 9: Technique
4.3 Technique Like any skill, practice makes perfect. Never try to rush the spray finishing process. Learn the characteristics of the coating you will be spraying. Build up layers of material (3-4 applications or more if necessary). Sand between coats and allow proper drying time between applications. -
Page 10: Using Pressure Pots With Turbine Systems
5 Using Pressure Pots with Turbine Systems There are many advantages to using pressure pots with a turbine system. Apollo Sprayers have made this very easy with our fluid feed systems, 4500 and 4550. Refer to the accessories section of this manual for more information on these and other products. -
Page 11: Testing Air Pressure In Pressure Pot
5.1 Testing Air Pressure In Pressure Pot It is necessary to test the air pressure in the pressure pot to make sure that it is appropriate for the viscosity of material being sprayed and the situation in which it is being sprayed. You don’t want the material coming out too quickly so that you get runs and sags, but you also don’t want it to come out too slowly so that you are spraying very slowly. -
Page 12: Record Of Turbine
Record of Turbine Use Record Of Turbine Use Model Serial # Date Purchased Date Hours Of Use Total Hours Turbine Recommended Maintenance: Clean and/or change pre-filters and/or cartridge filters every 50 hours or when necessary. See Accessories Page for appropriate filter replacement for your model. 7 Record of Turbine Maintenance Record Of Turbine Maintenance Date... -
Page 13: Turbine Maintenance And Cleaning
8 Turbine Maintenance and Cleaning Always unplug your turbine from the main electrical supply before doing any maintenance or repairs. After Each Use: Your Apollo turbine system requires very little maintenance. The turbine motor has sealed bearings that are lubricated for life. -
Page 14: Filter Maintenance
8.2 Filter Maintenance Visually check your filters every 10 hours or when you remove your pre-filters for cleaning. Check for accumulated material in the filter element. If you suspect they may be dirty, or if you can see material building up, don’t take a chance, remove the filter and hold it up to the light. -
Page 15: Running Multiple Spray Guns With A Turbine
9 Running Multiple Spray Guns with A Turbine All current Apollo Turbine Models have one air hose outlet on the side of the unit and are designed to run one spray gun. These models are equipped with an internal air relief valve to accommodate a non-bleed style spray gun (Apollo Model 7500 or 7700). -
Page 16: Model 4500
10 Model 4500 ~ 14 ~... - Page 17 Diagram # Part # Description Quantity A4501 Compressor Deck A4198 110v Mini Compressor Unit A4320 1/4" X 20 X 1/2" Hex Bolt Plated .5. A4300 1/4" SAE F/W Plated Washer A4308 1/4" X 20 Hex Nuts Plated A9016 Rubber Foot A4998 Pressure Regulator A4503...
-
Page 18: Model 4550
11 Model 4550 WIRING DIAGRAM MODEL4550 ~ 16 ~... - Page 19 Diagram # Part # Description Quantity A4554 Cart Base Plate Paint Blue A4555 Cart Axle (Zinc Plated A4556 Wheel Spacer (6061 Alum.) A4558 10" X 1 3/4" Wheel A4374 1/2" Axle Cap A4551 Frame Tube (Chrome) A4559 Rubber Tip For Frame Tube A4560 Handle Button A4364...
-
Page 20: Genuine Apollo Accessories
12 Genuine Apollo Accessories 4500–2 Quart (2 Liter) 4550 –Mobile Cart and Fluid Feed System #A4500 Fluid Feed System #A4550 Designed to be used with Apollo turbine systems: Designed to be used with Apollo turbine systems: Models Power-3 VS, Power-4 VS, Power-5 VS, Models Power-3 VS, Power-4 VS, Power-5 VS and 900. - Page 21 Handi-Hold™ Spray Gun Docking Station #A5326 Pre-Filters Replacement Filters Model Power-3 VS, Power-4 VS, Power-5 VS, 900 # A4096 Model Power-3 VS, Power-4 VS, Power-5 VS, 900 # A4171 Fluid Hoses A2113 - 6’ (2m) x 1/4” (6mm) fluid hose with couplers A2059 - 20’...
- Page 22 FS 1670 - Filter Stand, Fits 1 & 2 Quart (1 & 2 Liter) Cups. A5251 - 1 Quart (1 Liter) Cup Assembly A5033A – non-Teflon 250cc cup assembly A5269 - 8oz (250ml) Cup Assembly A5034A – non-Teflon 600cc cup assembly A7536A - non-Teflon 1000cc cup assembly ~ 20 ~...
-
Page 23: Warranty
Warranties of merchantability or fitness, is excluded to the maximum extent permitted by law and, if not excludable, is limited to the duration of the express Warranty. No representative or person is authorized to extend this Warranty or to create for APOLLO SPRAYERS INTERNATIONAL, INC. any other liability in connection with the sale of any APOLLO SPRAYERS product.
