- Page 1 INSTRUCTION MANUAL DO NOT USE EQUIPMENT BEFORE READING THIS MANUAL This manual contains important warnings and instructions. Please read these instructions carefully and keep for your reference. ©2013 Apollo Sprayers International, Inc.
-
Page 2: Grounding Instructions

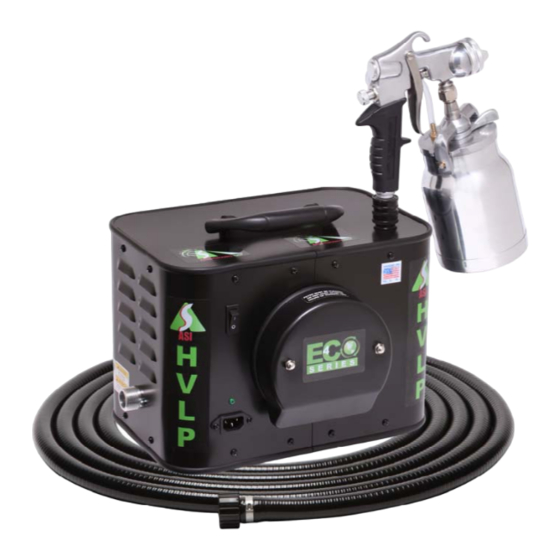

WARNING DO NOT USE EQUIPMENT BEFORE READING THIS SECTION In order to assure safe operation of your spray system, please read the following instructions carefully. Always follow solution manufacturer’s safety instructions and warnings. Always spray in a well-ventilated area. ... - Page 3 CONGRATULATIONS! You have just purchased the finest HVLP Spray system available. You are about to enjoy the great benefits of TrueHVLP™ spraying, flawless applications and a very short learning curve. Our designs are the result of many years experience in manufacturing TrueHVLP™ Turbine spray systems, and TrueHVLP™...
- Page 4 Your Apollo ECO E5011or E7000 spray gun offers you many options. You can turn the air cap (#2, E5011 or #1-2, E7000) to three positions. One will produce a horizontal pattern for spraying across, another will produce a vertical pattern for spraying up and down, and the third will produce a round pattern to spray small or narrow pieces.
- Page 5 Using Your Apollo ECO Spray Gun Your Apollo ECO Spray Gun is certified. This means your spray gun uses no more than 10 PSI. All passages and air ports are much larger than a conventional spray gun. If one of these air passages becomes blocked, or build up of material starts to occur, your spray pattern will become distorted, therefore, always keep your spray gun clean.
- Page 6 TURBINE MAINTENANCE & CLEANING The Apollo ECO Series Turbine unit needs virtually no maintenance. The motor has sealed bearings that are pre- lubricated. No service is necessary. Periodically, the Apollo ECO Series turbine’s air filters should be examined. Clean filters are critical to good performance and equipment longevity. Your Apollo ECO Series Turbine has 2 replaceable filters.
-
Page 7: Troubleshooting
TROUBLESHOOTING 1. Material cup full, turbine air is supplied to the spray gun. Trigger is pulled and no solution comes out - Reason: Cup not pressurizing. Check: Air Feed Tube/one way air valve Air Feed Connector Cup top gasket is not damaged. 2. - Page 8 E7000 SPRAY GUN DIAGRAM...
-
Page 10: Warranty Schedule
Warranty. No representative or person is authorized to extend this Warranty or to create for APOLLO SPRAYERS INTERNATIONAL, INC. any other liability in connection with the sale of any APOLLO SPRAYERS product. APOLLO SPRAYERS INTERNATIONAL, INC. shall not be liable for any consequential, incidental, or special damages of any kind directly or indirectly resulting from breach of any express or implied Warranty.
