- Page 1 1910150AU Operation instructions • english 0546 Gebrauchsanweisung • deutsch Gebruiksaanwijzing • nederlands Manuel d’utilisation • français MINARC 120, 150...
-
Page 2: Table Of Contents
4.1. DAILY MAINTENANCE ....................8 4.2. TROUBLESHOOTING ....................8 5. ORDERING NUMBERS ....................8 6. TECHNICAL INFORMATION ..................9 7. DISPOSAL OF THE MACHINE ................... 10 8. TERMS OF GUARANTEE ................... 10 2 – MINARC 120, 150 / 0546 © KEMPPI OY... -
Page 3: Preface

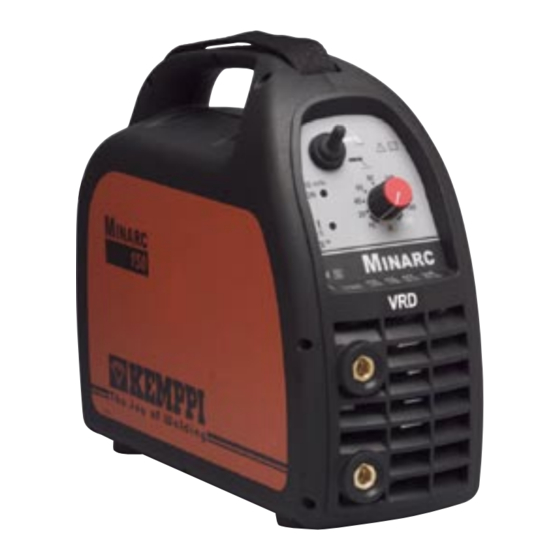

1.2. PRODUCT INTRODUCTION Kemppi Minarc 120, 150 is a Manual Metal Arc welding machine, small in size, suitable for industry, site and repair welding. The unit uses one phase connection voltage. -
Page 4: Before You Start Using The Unit
2.4. MAIN COMPONENTS Connect welding cable and earth cable to their connections on the power source. Mains cable and wall plug are already installed. 4 – MINARC 120, 150 / 0546 © KEMPPI OY... -
Page 5: Connecting To Power Supply Mains
Arc is formed between electrode tip and work piece. The melting electrode coating forms gas and slag, which protects the weld pool. Slag solidified over the weld is removed after welding e.g. with a chipping hammer. © KEMPPI OY MINARC 120, 150 / 0546 – 5... -
Page 6: Tig Welding
1. Select polarity (+ or -) of welding current cable and return current cable according to filler. 2. Select MMA welding with the switch 3. Select suitable welding current by adjusting the potentiometer according to table of suitable electrodes (E). 6 – MINARC 120, 150 / 0546 © KEMPPI OY... -
Page 7: Dc Tig Welding
In maintenance of the unit, take into consideration the rate of use and the environment it is used in. When the unit is used properly and serviced regularly, you will avoid unnecessary disturbances in use and production. © KEMPPI OY MINARC 120, 150 / 0546 – 7... -
Page 8: Daily Maintenance
– Check that there is ample space in front of and back of the unit for ventilation. – Check welding settings. See 3.3. Welding selections. If problems in use are not solved with above mentioned measures, please contact a Kemppi service workshop. -
Page 9: Technical Information
AS/NZS 3652 WTIA Tech note 22 WTIA Tech note 22 IEC 60974-1 IEC 60974-1 IEC 60974-10 IEC 60974-10 EN 50199 EN 50199 The products meet conformity requirements for CE marking. © KEMPPI OY MINARC 120, 150 / 0546 – 9... -
Page 10: Disposal Of The Machine
Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor. - Page 11 Telefax (08) 590 823 94 e-mail: sales.se@kemppi.com Tel (06033) 88 020 Telefax (06033) 72 528 KEMPPI NORGE A/S e-mail:sales.de@kemppi.com Postboks 2151, Postterminalen KEMPPI SP. z o.o. N – 3103 TØNSBERG Ul. Piłsudskiego 2 NORGE 05-091 ZA¸BKI Tel 33 34 60 00 Poland...
