- Page 1 1910150AU Operation instructions • english MINARC 150 AU...
-
Page 2: Table Of Contents
3.3.1. Manual Metal Arc welding (MMA)............6 3.3.2. DC TIG welding ..................7 3.4. Welding ......................7 3.4.1. Earthing ....................7 3.4.2. Welding....................7 3.5. Storing......................7 MAINTENANCE.....................7 4.1. Daily maintenance ..................8 4.2. Troubleshooting ....................8 ORDERING NUMBERS..................8 TECHNICAL DATA ....................9 2 – Minarc 150AU / 0411 © COPYRIGHT KEMPPI OY... -
Page 3: Preface

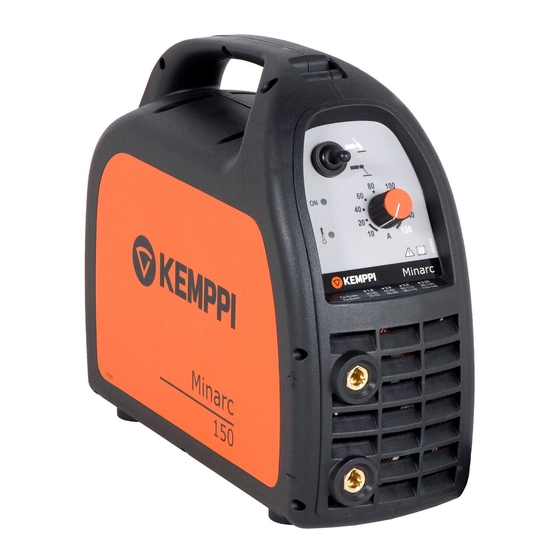

1.2. PRODUCT INTRODUCTION Kemppi Minarc 150AU is a Manual Metal Arc welding machine, small in size, suitable for industry, site and repair welding. The unit uses one phase connection voltage. Minarc 150AU is equipped with so called Voltage Reduction Device (VRD) function to avoid danger of electric shock. -
Page 4: Before You Start Using The Unit
2.4. MAIN COMPONENTS Connect welding cable and earth cable to their connections on the power source. Mains cable and wall plug are already installed. 4 – Minarc 150AU / 0411 © COPYRIGHT KEMPPI OY... -
Page 5: Connecting To Power Supply Mains
Arc is formed between electrode tip and work piece. The melting electrode coating forms gas and slag, which protects the weld pool. Slag solidifi ed over the weld is removed after welding e.g. with a chipping hammer. Minarc 150AU / 0411 – 5 © COPYRIGHT KEMPPI OY... -
Page 6: Tig Welding
Select polarity (+ or -) of welding current cable and return current cable according to fi ller. Select MMA welding with the switch Select suitable welding current by adjusting the potentiometer according to table of suitable electrodes (E). 6 – Minarc 150AU / 0411 © COPYRIGHT KEMPPI OY... -
Page 7: Dc Tig Welding
In maintenance of the unit, take into consideration the rate of use and the environment it is used in. When the unit is used properly and serviced regularly, you will avoid unnecessary disturbances in use and production. Minarc 150AU / 0411 – 7 © COPYRIGHT KEMPPI OY... -
Page 8: Daily Maintenance
Check that there is ample space in front of and back of the unit for ventilation. Check welding settings. See 3.3. Welding selections. If problems in use are not solved with above mentioned measures, please contact a Kemppi service workshop. ORDERING NUMBERS Item Ordering number... -
Page 9: Technical Data
4,0 kg without connection cable 4,6 kg with connection cable Norms AS 1674.2 AS/NZS 3652 WTIA Tech note 22 IEC 60974-1 IEC 60974-10 EN 50199 The products meet conformity requirements for CE marking. Minarc 150AU / 0411 – 9 © COPYRIGHT KEMPPI OY... - Page 10 Tel (06033) 88 020 KEMPPI NORGE A/S Telefax (06033) 72 528 Postboks 2151, Postterminalen e-mail:sales.de@kemppi.com N – 3103 TØNSBERG KEMPPI SP. z o.o. NORGE Ul. Piłsudskiego 2 Tel 33 34 60 00 05-091 ZA¸BKI Telefax 33 34 60 10 Poland e-mail: sales.no@kemppi.com...
