Assembly and Operating Instructions
C
A
B
TF6006.01.01

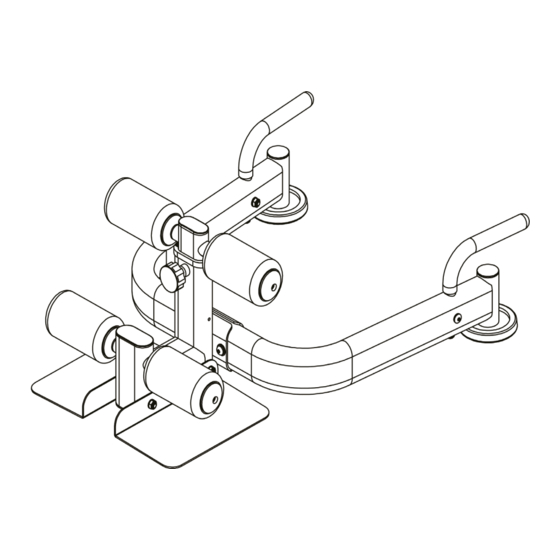

Sissy Squat
TF-6006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-6006 and is the answer not in the manual?

Questions and answers

Related Manuals for Taurus TF-6006

Summary of Contents for Taurus TF-6006

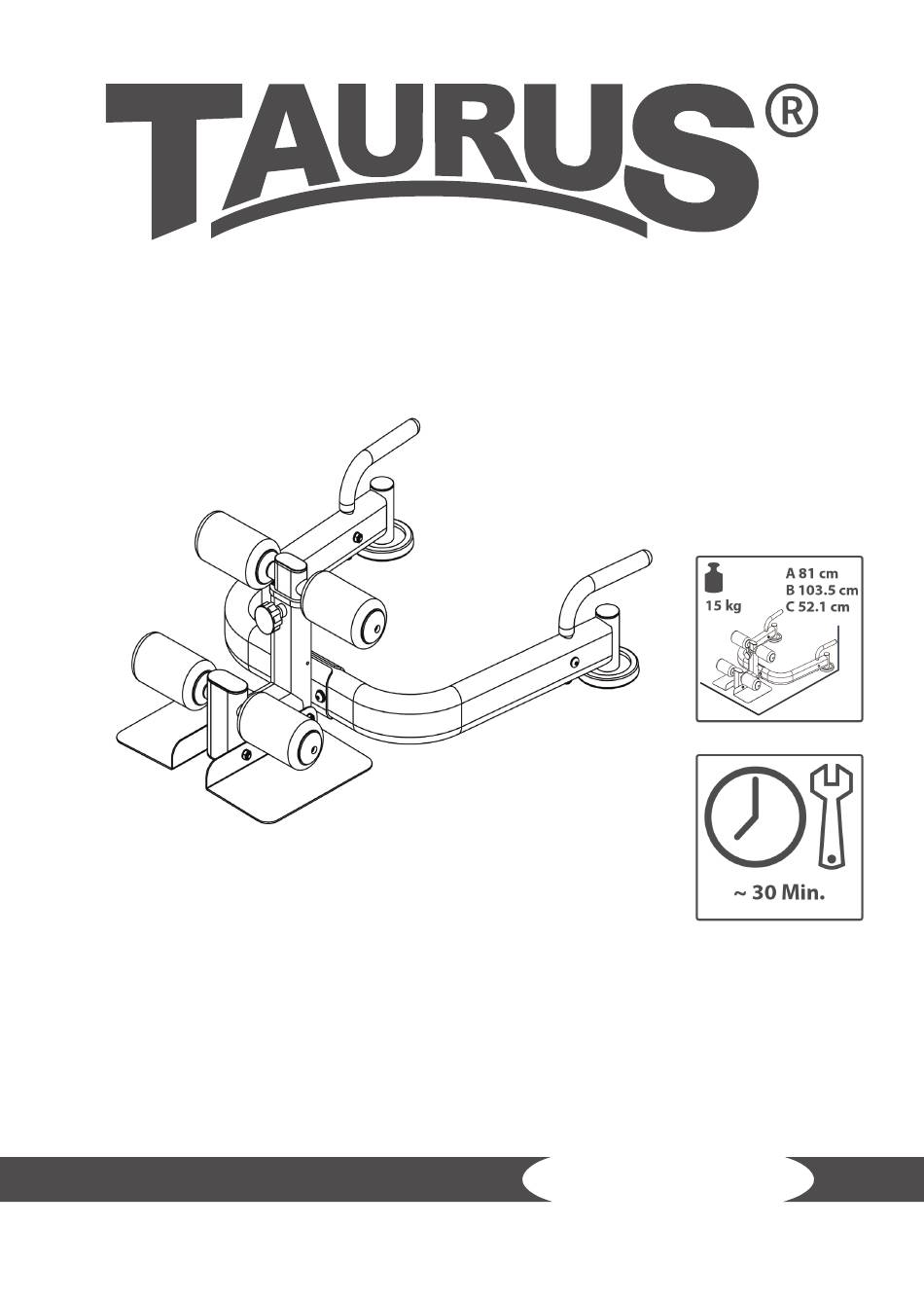

  • Page 1 Assembly and Operating Instructions TF6006.01.01 Sissy Squat TF-6006...
  • Page 2 Sissy Squat...
  • Page 3 Dear Customer, Thank you for deciding for a high-quality training equipment of the brand Taurus®, the brand that makes athlete‘s hearts beat faster. Taurus® offers a wide range of home fitness equipment like ellip- tical cross trainers, ergometers, treadmills and rowing machines. Taurus® equipment is the optimal equipment for all those who want to train at home independent of goals and fitness level.

  • Page 4: Table Of Contents

    CONTENTS GENERAL INFORMATION 1.1 Techical data 1.2 Personal safety 1.3 Set-up place ASSEMBLY INSTRUCTIONS; MAINTENANCE AND CARE 2.1 General instructions 2.2 Errors and error diagnosis 2.3 Maintenance and service calendar ASSEMBLY WARRANTY INFORMATION DISPOSAL ORDERING ACCESSORIES ORDERING SPARE PARTS 7.1 Service hotline 7.2 Serial number and model name 7.3 Parts list 7.4 Exploded drawing...

  • Page 5: General Information

    GENERAL INFORMATION Technical data Weight and dimensions: Article weight (gross, including packaging): 22kg Article weight (net, without packaging): 20kg Package dimensions (L x W x H): 84 cm x 70 cm x 18.5 cm Set-up dimensions (L x W x H): 103.5 cm x 81 cm x 52.1 cm...

  • Page 6: Personal Safety

    Personal safety Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.

  • Page 7: Assembly Instructions; Maintenance And Care

    ASSEMBLY INSTRUCTIONS; MAINTENANCE AND CARE General instructions Please check if all parts belonging to the equipment are included in the delivery and if there is any transport damage. If there are any complaints, please contact your contract partner directly. The equipment must be assembled by adults. In case of doubt, ask for assistance from another person with technical skills.

  • Page 8: Errors And Error Diagnosis

    Faults and troubleshooting The equipment runs through regular quality controls during production. Nevertheless, errors or malfunctions on the equipment may occur. Individual parts are often the cause of faults and replacement is usually sufficient. Please use the following overview to see the most common errors and how to repair them.

  • Page 9: Assembly

    ASSEMBLY Note: No. Description Specification Qty. We recommend you to not fully tigh- ten the screws and bolts until the as- back base frame sembly is completed. front base frame lock nut Step 1: Exploded drawing reinforcing plate 160x130 hand support tube lock nut curved washer Φ10...
  • Page 10 Step 1 Assembly Mount the back base frame (1) on the front base frame (2), using two hexagon socket button head bolts (8), four washers (5), two lock nuts (3) and one reinforcing plate (4). Mount the two hand support tubes (5) on the the back base frame (2), using two hexagon socket button head bolts (11), two hexagon socket button head holts (12), four washers (10), two curved washers (7) and two lock nuts (6).
  • Page 11 Step 2 Exploded drawing Description Specification Qty. footplate-left footplate-right lock nut hexagon socket button head bolt M10x120 washer Φ10...
  • Page 12 Step 2 Assembly Mount the left footplate (14) and the right footplate (15) on the front base frame (1), using two hexagon socket button head bolts (16), four washers (10) and two lock nuts (6). Sissy Squat...
  • Page 13 Step 3 Exploded drawing Description Specification Qty. adjustment tube...
  • Page 14 Step 3 Assembly Loosen the locking spring knob on the front base frame (2) by turning it counterclockwise. Pull out the locking spring knob and insert the adjustment tube (18) into the front base frame (2). As soon as the adjustment tube has reached the desired height, let go of the locking spring knob and it will return to its initial position.
  • Page 15 Step 4 Exploded drawing Description Specification Qty. sponge rod sponge Φ100 hexagon socket button head bolt M8x20 sponge inner cap sponge outer cap...
  • Page 16 Step 4 Assembly Mount the sponge rod (20) and the sponges (21) on the front base frame (2) and the adjustment tube (18), using four sponge inner caps (23), four spronge outer caps (24) and four hexagon socket head bolts (22). Sissy Squat...

  • Page 17: Warranty Information

    WARRANTY INFORMATION Taurus® training fitness equipment is subject to strict quality controls. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 18 Warranty conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.

  • Page 19: Disposal

    DISPOSAL At the end of its operational life, this equipment cannot be disposed of in normal household waste. Instead, it must be disposed of via an electricals recycling centre. Further information can be obtained from your local authority‘s recycling service. The materials can be recycled as per their symbols.

  • Page 20: Ordering Spare Parts

    9:00 - 18:00 10:00 - 17:00 Serial number and model name Before assembling your equipment, find the serial number on the white sticker and enter it in the appro- priate space. Serial number: Brand / category: Model name: Taurus Sissy Squat Sissy Squat...

  • Page 21: Parts List

    Parts list Description Specification Qty. back base frame front baseframe lock nut reinforcing plate 160x130 hand support tube lock nut curved washer Φ10 hexagon socket button head bolt M12x75 washer Φ12 washer Φ10 hexagon socket button head bolt M10x65 hexagon socket button head bolt M10x25 footplate-left footplate-right...

  • Page 22: Exploded Drawing

    Exploded drawing Sissy Squat...
  • Page 23 DISCLAIMER ©2011 TAURUS® is a registered brand of the company Sport-Tiedje GmbH. All rights re- served. Any use of this trademark without the explicit written permission of Sport-Tiedje is prohibited. Product and instructions are subject to change. Technical data can be changed without advance notice.
  • Page 24 Sissy Squat...
