- Page 1 QUICK START GUIDE TRAVEO T2G Body High Lite Kit KIT_T2G-B-H_LITE Kit contents 1. KIT_T2G-B-H_LITE REV 01 board www.infineon.com/traveobhlitekit...
- Page 2 Before you start 1. Ensure that you have the following: – PC with USB Port – UART terminal so ware such as Tera Term or Minicom Powering up the kit 1. Connect the USB micro-B cable to J2 and other end to PC Power up the kit Run the pre-programmed code example 1.

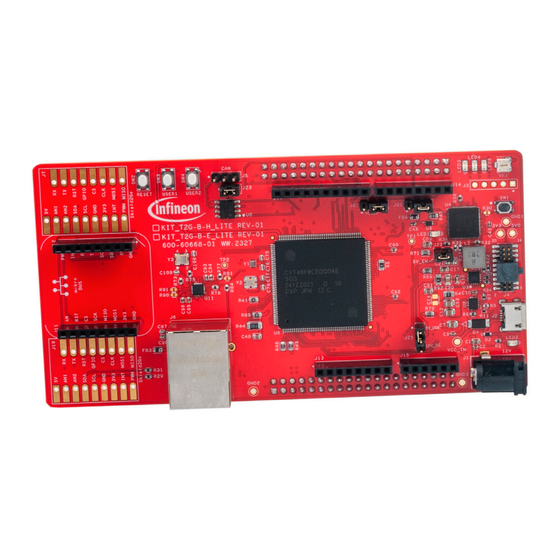

- Page 3 TRAVEO T2G Body High Lite Kit Board details Shield2Go connectors (not mounted) (J7, J19) KitProg3 status LED (LED1) mikroBUS connectors (J11, J12) PSoC™ 5LP based KitProg3 (U4) 32.768-kHz oscillator for WCO (Y1) Mode switch (SW1) 16-MHz oscillator for ECO (Y2) VDDIO current measurement jumper (J21) Ethernet physical layer (PHY) transceiver (U11) 8-pin Arduino header (J14)
- Page 4 ADC _ /A P _ /D USER_LED UART_TX/D UART_RX/D For additional details, see the kit guide available on the Infineon kit webpage. All rights reserved. © 2023 Document number: 002-37238 Rev. *A Date: 09 / 2023 Infineon Technologies AG Page 4 of 4...
