WEATHER STATION
Model: GARNI 281
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 281 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GARNI 281

Summary of Contents for GARNI 281

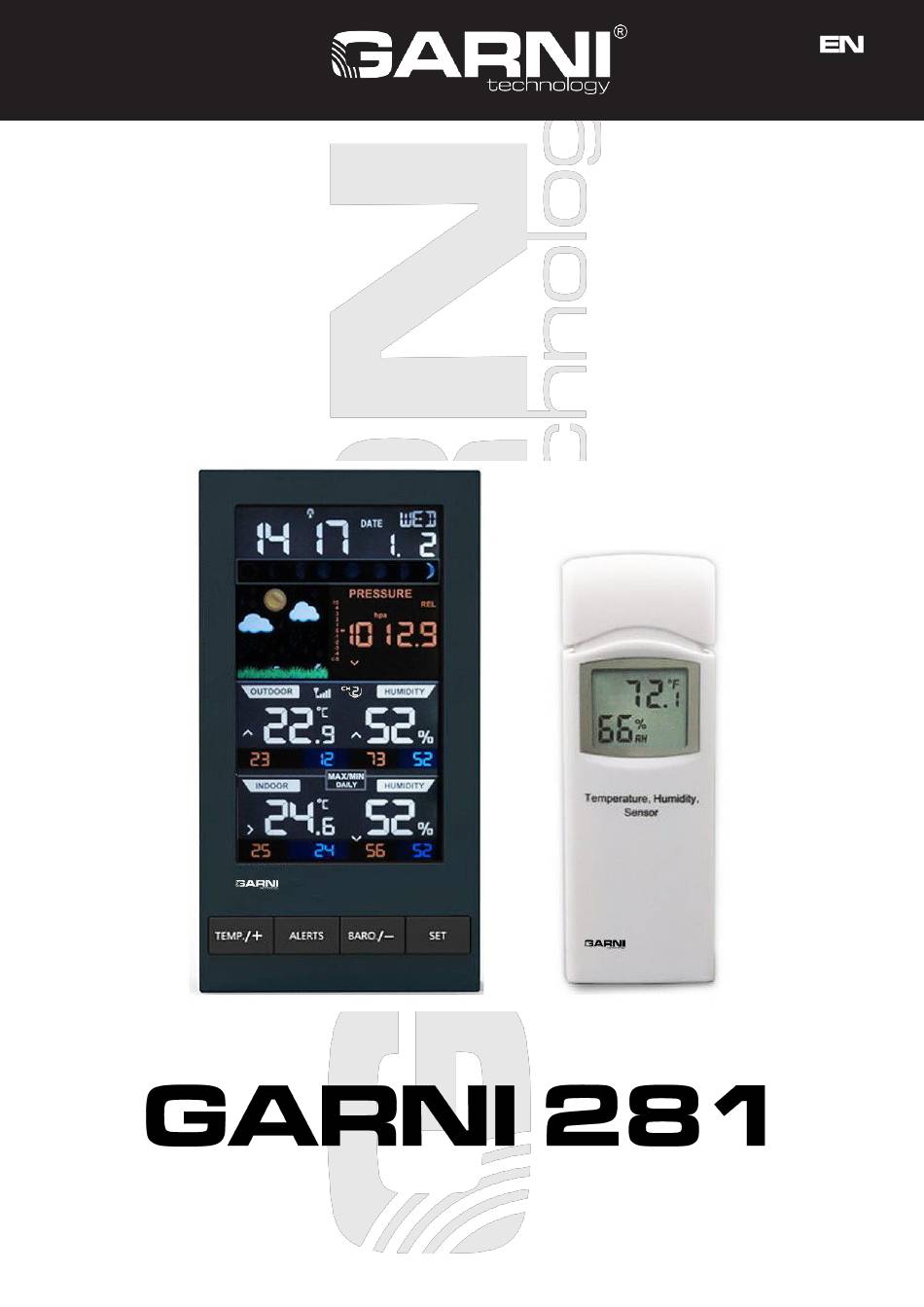

  • Page 1 WEATHER STATION Model: GARNI 281 User manual...

  • Page 2: Parts List

    1. PARTS LIST 1) Main unit 2) Wireless sensor WH32F-3 3) DC adaptor 4) User manual 2. OVERVIEW 1) Outdoor temperature (°F or °C) and humidity (%RH) 2) Indoor temperature (°F or °C) and humidity (%RH) 3) Possibility to connect up to 3 wireless sensors for measuring temperature and RH in different places 4) Memory for maximum and minimum measured values of relative humidity 5) Memory for maximum and minimum measured temperature values 6) Barometric pressure value (inHg, mmHg, or hPa)

  • Page 3: Installation And Setup

    Wireless sensor Hanging hole Temperature Number of selected channel Battery compartment Relative humidity 3. INSTALLATION AND SETUP 3.1 Install batteries NOTE: To avoid operating problems, please take note of battery polarity before/when inserting batteries. For the main unit use high-quality alkaline batteries. It is recommended to use lithium batteries that resist low temperatures well for the wireless sensor.
  • Page 4 Button for switching the display of temperature units Channel slide switch After inserting the batteries into the main unit, all display segments will be displayed for about 3 seconds and then the main unit will start receiving the signal from the wireless sensor. Set the channel on the wireless sensor and insert the batteries.

  • Page 5: Measurement Accuracy Verification

    DESCRIPTION OF THE MAIN UNIT DISPLAY 1 DST – 1. Day Light Saving time 2 Time controlled by DCF-77 radio signal 3 DCF-77 signal reception icon 4 Abbreviation for day name / time zone 5 Date 6 Moon Phase 7 Weather forecast icon 8 Indication of absolute (ABS) or relative (REL) barometric pressure 9 Barometric pressure value 10 Wireless sensor signal reception icon...

  • Page 6: Weather Station Settings

    Wireless sensor Place the wireless sensor away from direct sunlight not to compromise the measurement. Placement outdoors, at the northern wall is recommended. Obstacles such as walls, concrete, metal structures and large objects reduce the signal range. Position the wireless sensor vertically for optimum signal transmission. Maximum open space signal range is 100 meters.
  • Page 7 Switching between wireless sensor channels If more than one wireless sensor is paired with the main unit, press the SET / CH button to display the temperature, relative humidity and maximum / minimum measured values of the sensors on each channel. To switch channels automatically, press the SET / CH button until the icon appears next to the channel number on the display of the main unit.
  • Page 8 When clock reach the alarm time, alarm sound will start. Press LIGHT / SNOOZE button to enter snooze and the alarm will sound again after 5 minutes. To turn off the alarm, press any button except LIGHT / SNOOZE. Alarm will activate again in the next day at the set time. Low outdoor temperature alert When the outdoor temperature drops between 2 °...

  • Page 9: Weather Forecast

    WEATHER FORECAST This weather station is learning, leave it in the same place for 30 days to ensure the most accurate weather forecast. The prediction is based on the change in barometric pressure, in general, if the barometric pressure rises, the weather improves and vice versa. The weather forecast uses six icons –...

  • Page 10: Troubleshooting

    The outdoor temperature or The outdoor temperature or The outside temperature or relative humidity has increased relative humidity has not relative humidity has dropped in the last 3 hours changed in the last 3 hours in the last 3 hours TREND INDICATORS OF INCREASING / DECREASING BAROMETRIC PRESSURE The weather station updates the trend indicators every 30 minutes to reflect the changes that have taken place in the last 3 hours of measurement.

  • Page 11: Technical Parameters

    122 x 42 x 16 mm DECLARATION OF CONFORMITY GARNI technology a.s. hereby declares that the type of the radio equipment - weather station type GARNI 281 conforms to the Directive 2014/53/EU. The full EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...
