INSTRUCTION MANUAL FOR WEATHER STATION
Li n e
MODEL
Li n e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 545 line and is the answer not in the manual?

Questions and answers

Summary of Contents for GARNI 545 line

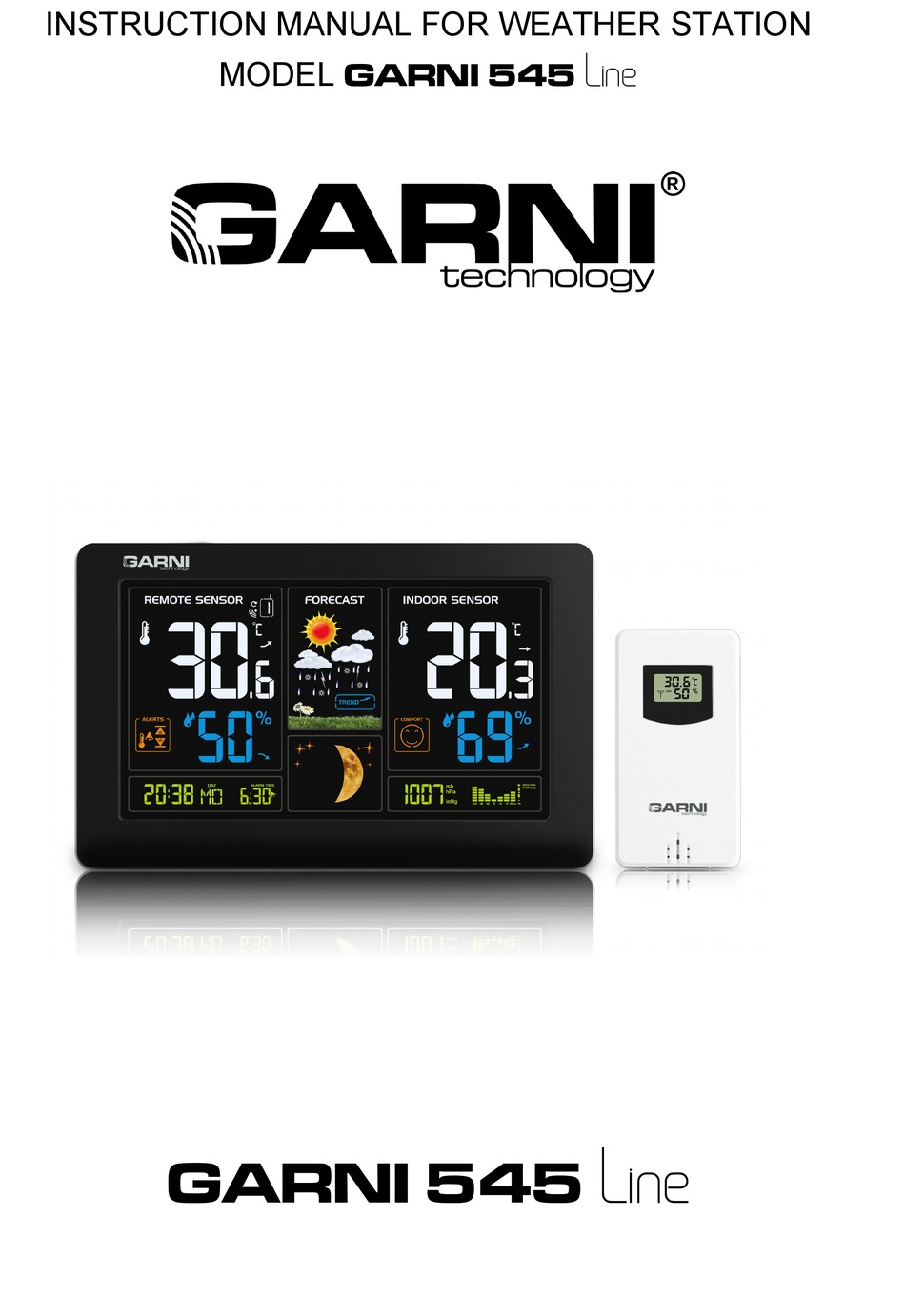

  • Page 1 INSTRUCTION MANUAL FOR WEATHER STATION Li n e MODEL Li n e...
  • Page 2: Package Contents

    This symbol is followed by an important notice, this symbol is followed by a note For safe use, always follow the instructions in this documentation PACKAGE CONTENTS Main unit (receiver) Wireless sensor GARNI 030H AC adaptor for the main unit Manual DESCRIPTION - inverse color display - measurement of outdoor and indoor relative humidity (%) - measurement of indoor and outdoor temperature (°C, or °F)

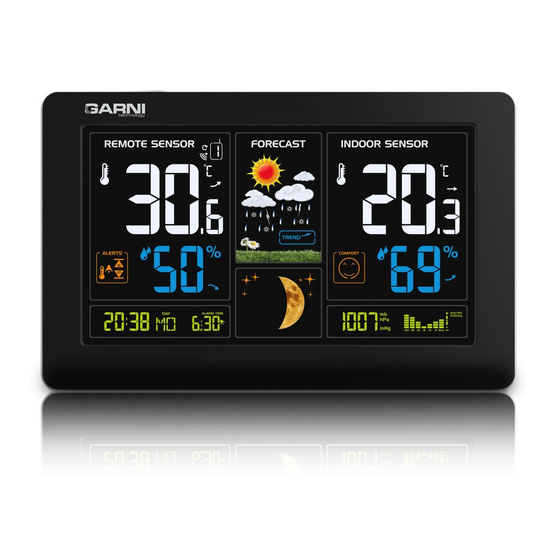

  • Page 3 1) The icon of weather forecast and weather trend 2) Temperature and relative humidity (REMOTE SENSOR – outdoor, INDOOR SENSOR – indoor) 3) Absolute barometric pressure and chart of barometric pressure trend 4) Thermal comfort icon 5) Moon phase 6) Time and date 7) Icon for alarm for the upper and lower temperature limit Rear view 8) Wall suspension hole...
  • Page 4: Battery Installation

    Wireless sensor 1) Temperature 5) Broadcast button TX 2) Relative humidity 6) Channel switch 3) LED 7) Battery compartment cover 4) °C/°F button COMMISSIONING Battery installation Note: observe the correct battery polarity to prevent damage to the weather station. Use quality alkaline batteries for the main unit;...
  • Page 5 Once the connection of the main unit to the wireless sensor is established, place the main unit and the wireless sensor in the desired location within the range of the wireless sensor signal Using multiple wireless sensors The main unit allows to connect up to 3 wireless sensors which can be placed at different spots. Each wireless sensor must be assigned its own channel number (1, 2 and 3).
  • Page 6 times in total. The received time is compared with the time on the main unit and adjusted if necessary. For better signal reception, place the main unit near a window. If the DCF-77 signal is not received (icon is not displayed), reception will be interrupted, and it will be re- attempted in an hour until the DCF-77 signal is received successfully.
  • Page 7: Weather Forecast

    Note: If no button is pressed for 20 seconds, the setting mode will be terminated. Day name abbreviations Monday Tuesday Wednesday Thursday Friday Saturday Sunday GE - German EN - English FR - French IT - Italian SP - Spanish DU - Dutch DA - Danish DESCRIPTION OF THE MAIN UNIT DISPLAY...
  • Page 8 The weather forecast uses six icons – sunny, somewhat cloudy, cloudy, precipitation, heavy rain and snow. Sunny Somewhat Cloudy Precipitation Heavy rain Snow cloudy Note: the snow icon replaces the precipitation or heavy rain icons if the outdoor temperature from the channel 1 sensor is below -4°C.
  • Page 9: Changing The Temperature Units

    Moon phase The weather station shows individual Moon phases according to the current date. Displaying Moon phases on the northern hemisphere: new Moon waxing half-Moon gibbous full Moon gibbous half-Moon waning new Moon (Moon is crescent (first (waxing) (waning) (last crescent (Moon is not visible)
  • Page 10: Setting The Wake-Up Time

    ALARMS FOR THE UPPER AND LOWER LIMITS OF THE OUTDOOR TEMPERATURE AND FROST INDICATION Alarm for the upper and lower temperature limits The weather station allows setting an alarm when a certain temperature between -20 °C and 60 °C is reached.
  • Page 11: Display Backlight

    CHANGE TO / FROM DAYLIGHT SAVING TIME The change to / from daylight saving time is done automatically as long as the reception of the DCF-77 signal is successful. If the daylight saving time is displayed, the display shows DST. DISPLAY BACKLIGHT Battery power Push button...
  • Page 12: Safety Precautions

    49 x 95 x 32 mm GARNI technology a.s. hereby declares that the type of the radio equipment - weather station type GARNI 545 Line conforms to the Directive 2014/53/EU. The full EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...

This manual is also suitable for:

030h
