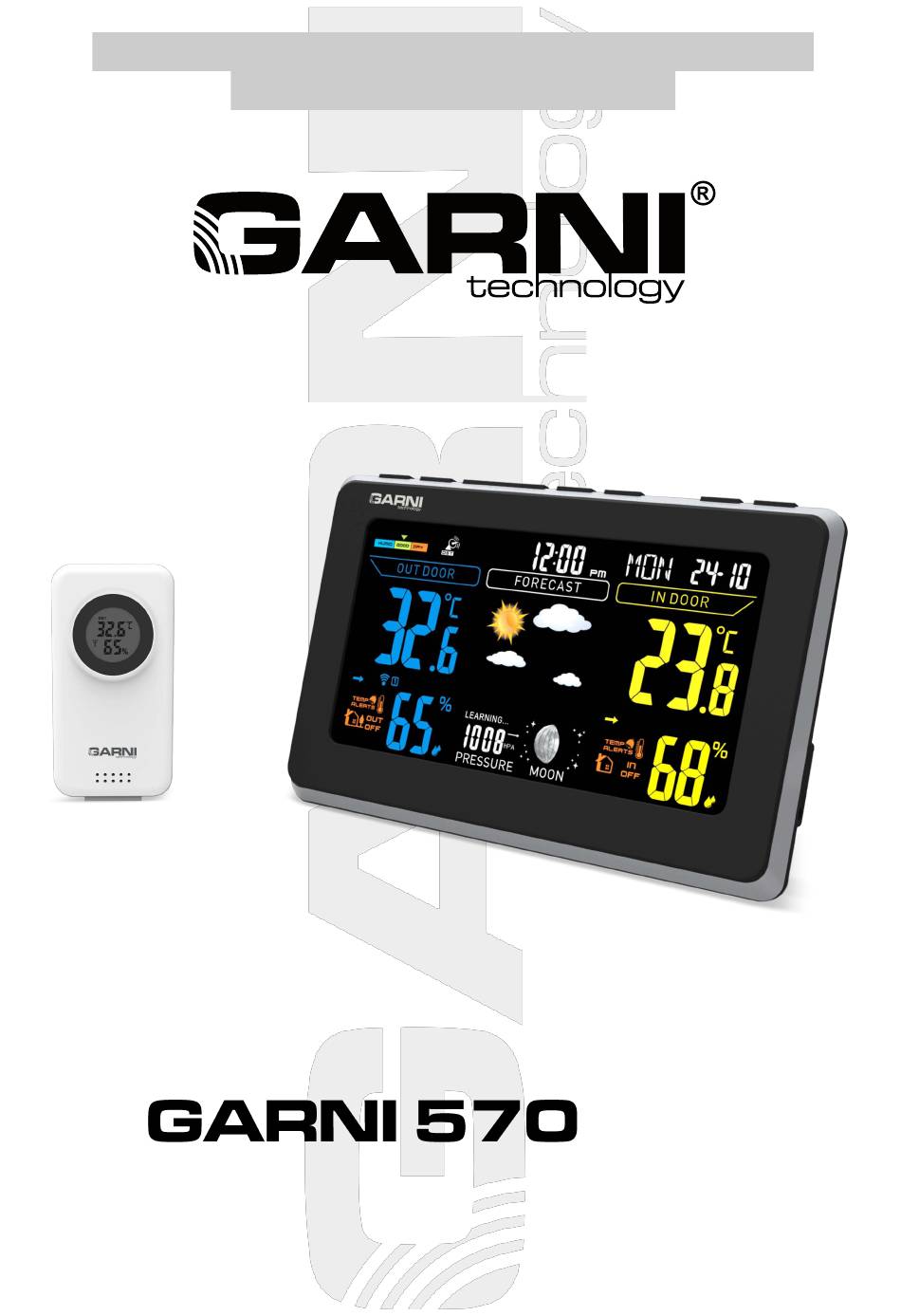

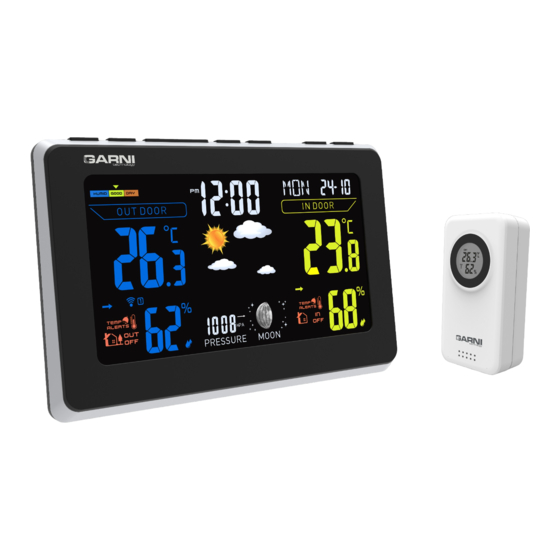

- Page 1 WEATHER STATION INSTRUCTION MANUAL MODEL GARNI 570 EASY II EASY II...
-
Page 2: Package Contents
PACKAGE CONTENTS Main (receiving) unit Wireless sensor GARNI 040H AC Adapter Instruction Manual DESCRIPTION - outdoor and indoor relative humidity measurement (%) - outdoor and indoor temperature measurement (°C or °F) - measurement of absolute barometric pressure (hPa or mmHg) - Page 3 5) Relative outdoor humidity value 13) Abbreviation of the day, date 6) Absolute barometric pressure value 14) Current time /alarm time 1 and 2 7) Barometric pressure development arrow 15) Weather forecast icon 8) Lunar phases 16) Automatic switching of channels, discharged 9) Icon for upper and lower limits of indoor wireless sensor battery temperature...
- Page 4 3) Close the battery compartment The main unit can also be powered using the AC adapter even if the batteries are inserted. Connect the AC adapter plug to the outlet on the side of the main unit and plug into the wall socket.
- Page 5 If the signal is not received, the DCF-77 signal reception icon will not appear on the display. If the signal is successfully received, the reception icon will be permanently shown on the display. DST means daylight saving time. Search for the DCF-77 signal is done daily at 01:00, 02:00 and 03:00 a.m. If the signal is not successfully received at 03:00 a.m., the main unit will search for it at 04:00 and 05:00 a.m.
- Page 6 Setting a 12 or 24 hour time display To select the time display in 12-hour or 24-hour format, press the DOWN button in basic view mode. If the 12-hour format is selected, the PM indicator will be displayed next to the time from 12:00 p.m. until 11:59 p.m.
- Page 7 Turning off the alarm signal When the alarm signal is activated at the set time, you can activate the snooze function by pressing SNOOZE/LIGHT. The Zz symbol will flash on the display. The alarm signal will be re-activated after the set time.
-
Page 8: Weather Forecast
Alarm activation Reaching the set temperature limit will be signaled by an acoustic signal for about 5 s, with the corresponding HI , or LO icon flashing on the display. Press any button to turn off the acoustic signal Note: - if the measured temperature is outside the measuring range, HH or LL will appear on the display - if multiple wireless sensors are used, then the upper and lower temperature alarm can be set for each sensor separately. - Page 9 → → clear almost clear semi-clear partly cloudy → → cloudy partly overcast overcast → → light rain rain scattered thunderstorms thunderstorms...
-
Page 10: Low Battery Indications
→ light snowfall snowfall Note: the snow icon will appear instead of the rainfall or storm icon if the outdoor temperature is lower than 0°C. After putting the weather station into operation or after relocating them to a different altitude, is necessary to wait for at least 24 hours before the weather station starts to predict weather. -
Page 11: Technical Parameters
89 x 45 x 27 mm Dimensions: GARNI technology a.s. declares that the type of radio device - weather station model GARNI 570 EASY II - is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...
