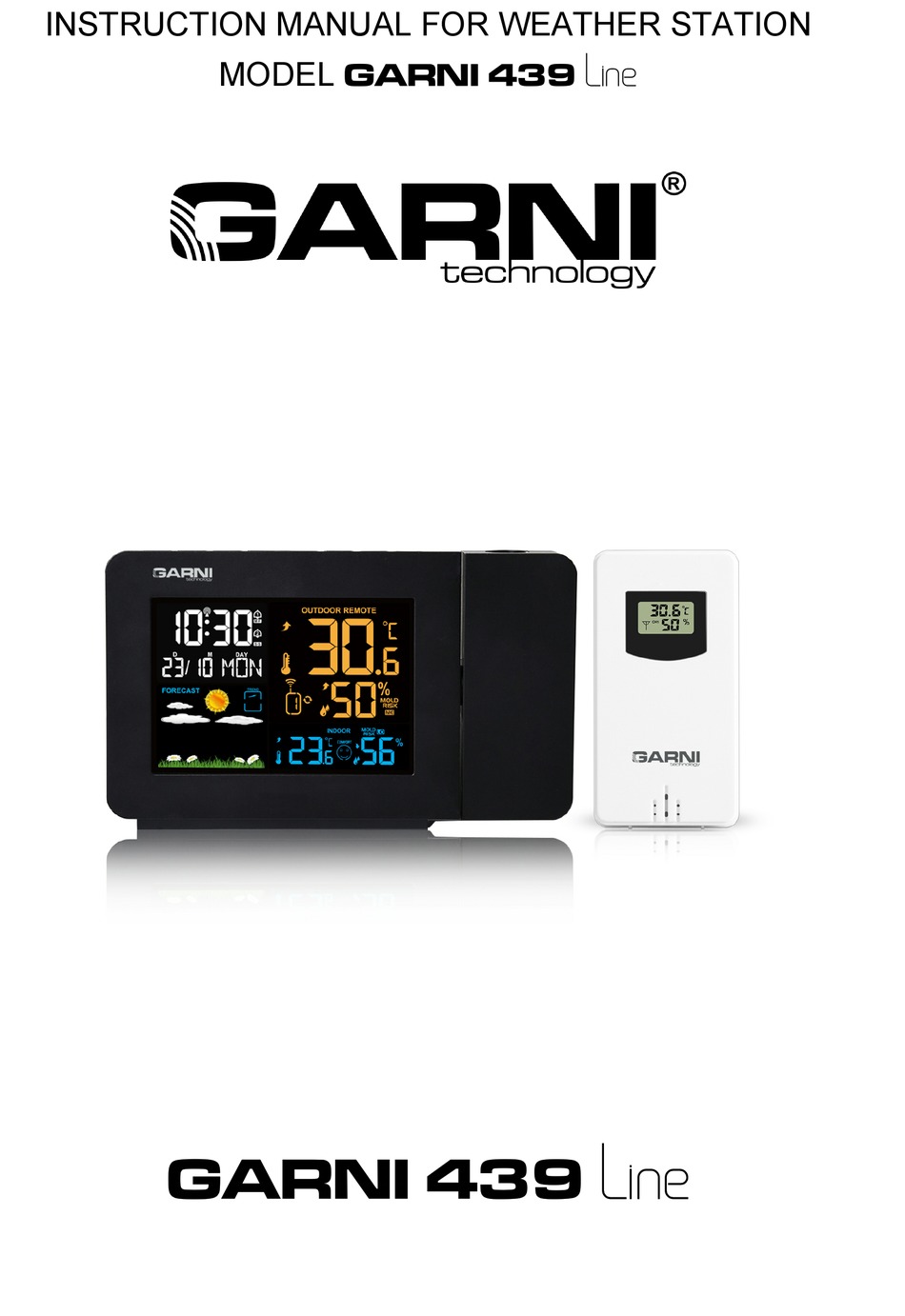

- Page 1 INSTRUCTION MANUAL FOR WEATHER STATION Li n e MODEL Li n e...
-
Page 2: Package Contents
This symbol is followed by an important notice, this symbol is followed by a note For safe use, always follow the instructions in this documentation PACKAGE CONTENTS Main unit (receiver) Wireless sensor GARNI 030H AC adaptor for the main unit Manual DESCRIPTION - inverse color display - measurement of outdoor and indoor relative humidity (%) - measurement of indoor and outdoor temperature (°C, or °F) - Page 3 Rear and side view 10) Indoor temperature sensor 13) Projection activation / deactivation switch 11) Alarm 1 activation / deactivation switch 14) Backup battery compartment 12) Alarm 2 activation / deactivation switch 15) AC adaptor socket Top view 16) Button 20) Button 17) ALARM button 21) Button...
-
Page 4: Backup Battery Installation
(OUTDOOR REMOTE) channel number for 3 minutes. Wireless sensor GARNI 030H 1) Remove the battery compartment cover on the rear side of the wireless sensor. 2) Set the required channel using the switch in the battery compartment. -
Page 5: Wireless Sensor
Placement of the weather station Main unit Select the location of the main unit away from direct sunlight. Test the connection to the wireless sensor before final installation. If there is a problem with the signal reception, select another location. You may also put the main unit on a flat surface. -
Page 6: Weather Forecast
Wait until the main unit automatically restarts the search. Set time and date manually. Wireless sensor signal reception not successful Check that the batteries in the wireless sensor are inserted correctly. Check that the wireless sensor is within the signal range. Press and hold button to start signal search manually. -
Page 7: Changing The Temperature Units
channel 2 sensor, if channel 2 is not used, then it is the temperature from the channel 3 sensor. Weather trend arrows The weather station updates the weather trend arrows according to the barometric pressure reading Barometric pressure increased Barometric pressure unchanged Barometric pressure decreased E.g.: the weather forecast indicates rain, the barometric pressure drops abruptly and quickly, therefore the probability of heavy rain is higher. -
Page 8: Snooze Function
Press and hold the button for 2 seconds to erase the recording of all maximum and minimum readings. The memory is also automatically erased at 00:00 every day. FROST INDICATION As soon as the outdoor temperature is between -1°C and +3°C, the icon will flash SETTING WAKE-UP TIME AND SNOOZE FUNCTION 1) Press the ALARM repeatedly to display the alarm 1 (AL 1) or alarm 2 (AL 2) wake-up time. -
Page 9: Display Backlight
To rotate the projected image by 180°, push the button once. To decrease or increase projection brightness press and hold the for 3 seconds. Projection is off while receiving the DCF-77 signal for time and date adjustment. DISPLAY BACKLIGHT The main unit is powered by an AC adaptor, the battery serves only as a backup. The display can be backlit permanently of turned off. -
Page 10: Technical Parameters
49 x 95 x 32 mm GARNI technology a.s. hereby declares that the type of the radio equipment - weather station type GARNI 439 Line conforms to the Directive 2014/53/EU. The full EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...
