GARNI ND5010 Desktop Weather Station
Instruction Manual
Introduction
This desktop weather station comes with barometric weather prediction, clock, calendar,
indoor and outdoor temperature and humidity display. It is battery powered with AC
charger. It is recommended to use the AC charger at all times.

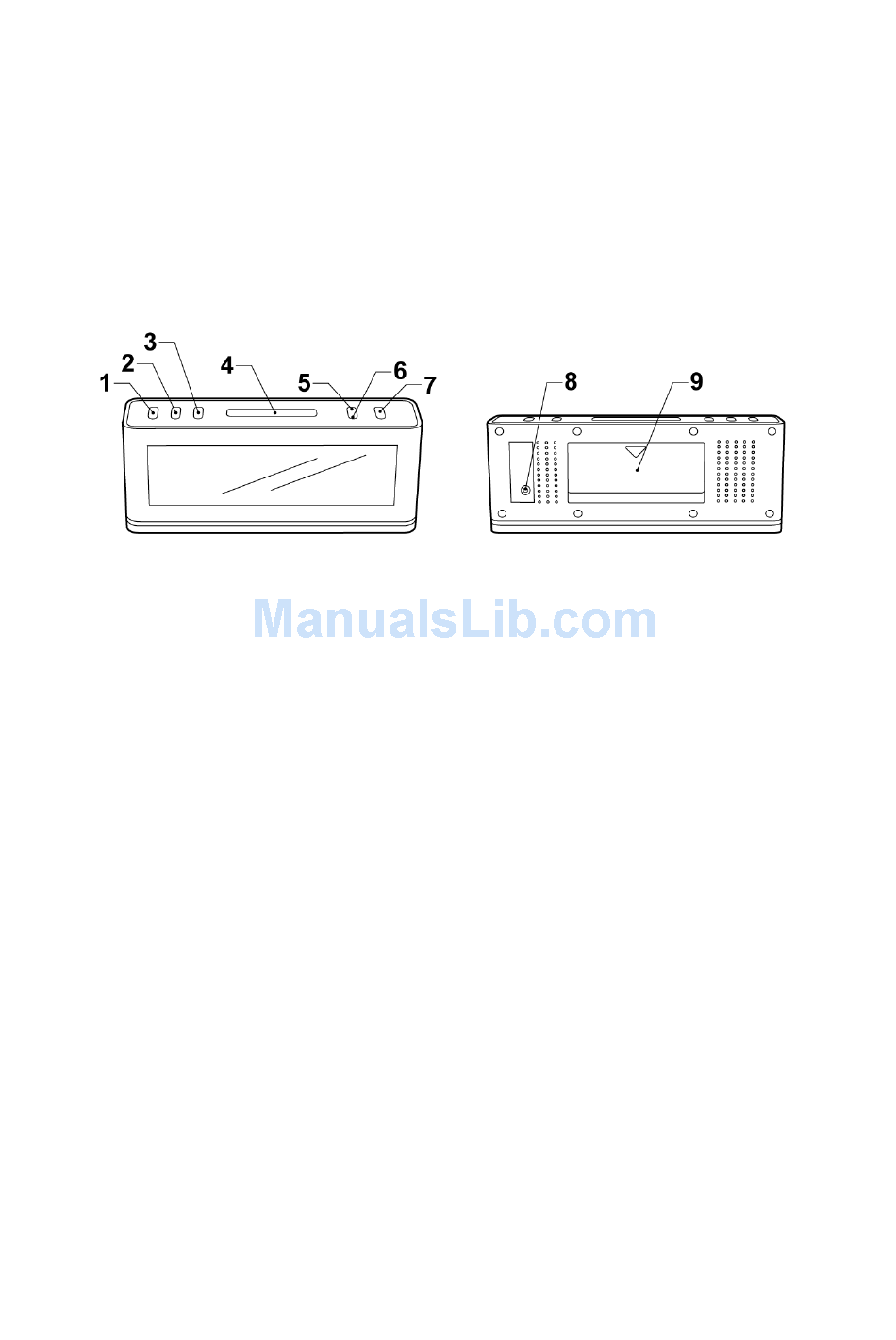

Fig. 1 Front view
1. 'MODE' button
°
°
2. '+ /
C /
F' button
3. '- / RCC' button
4. 'SNOOZE / LIGHT' button
5. 'HISTORY' button
6. 'CHANNEL' button
7. 'MAX / MIN' button
8. DC line in jack
9. Battery compartment
General notes:
1. It is recommended to set up the remote temperature sensor before setting up the
weather station / clock. See "Configuring Remote Temperature Sensor(s)"
for more information. Batteries and AC adapter should be used together.
2. Please note all other clock / weather station settings seize to function when the
clock is in RCC synchronization mode. See "RCC Synchronization" for
additional information.
3. During initial installation, the temperature and humidity sensor may take up to an
hour or more to acclimatize to current conditions.
4. Press 'SNOOZE / LIGHT' (4) to change LCD screen backlight brightness from
'OFF', 'LOW', and 'HIGH'.
Getting started:
Installing A/C adapter
Fig. 2 Back view
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GARNI ND5010
Summary of Contents for GARNI ND5010
- Page 1 GARNI ND5010 Desktop Weather Station Instruction Manual Introduction This desktop weather station comes with barometric weather prediction, clock, calendar, indoor and outdoor temperature and humidity display. It is battery powered with AC charger. It is recommended to use the AC charger at all times.
- Page 2 1. Plug in A/C D/C adapter at D/C input jack (8) (see figure 2). Use only approved adapters. Batteries installation 1. Open battery compartment (9) on the back of the unit. (see figure 2) 2. Install / replace with 2x “AAA” size batteries in the compartment. It is recommended that only alkaline batteries are used.
- Page 3 4. Press “HISTORY” button (5) to confirm weather pattern. Interpreting the weather forecast symbols The weather station requires at least 24 hours on acclimatizing to local weather conditions. The weather station process and analyze the weather patterns for the past 24 hours in order to determine the future weather.
- Page 4 Note: It is only possible to measure the barometric pressure trend properly when the unit remains at the same altitude. When moving around at different altitudes within a short period of time, the air pressure and the barometric pressure will change. The pressure trend will only be correct and regulate the has remain at a constant altitude for 24 hours or more.
- Page 5 RCC Zone Offset This clock is equipped with radio controlled time adjustment. The user will need to work out the time zone signal they receive at their current location and make (any) adjustment as required. This function also allows for daylight saving adjustment. Contact your local weather bureaus or authorities for more information.
- Page 6 Please note that alarm time setting seize to function when the clock is in RCC synchronization mode. Wait until synchronization has ended before setting the alarm time. Configuring the Thermometer This weather station is equipped to synchronize up to 3 remote temperature sensors. One remote temperature sensor is included.
- Page 7 Alternatively, the unit can be place on a flat horizontal surface. 2. The unit can be placed indoor or outdoor. The unit is weather proof. Do not submerge unit in water. Do not expose unit to water for prolonged periods. Avoid accumulation of water and or snow on unit. Avoid exposing unit to direct sunlight.
- Page 8 1. The “IN” temperature displays the indoor temperature. It is the temperature of the location of the weather station. 2. The “OUT” temperature displays the temperature of the remote temperature sensors. 3. Press “Channel” button (6) on weather station repeatedly to display the temperature of channel 1, channel 2, and channel 3.
