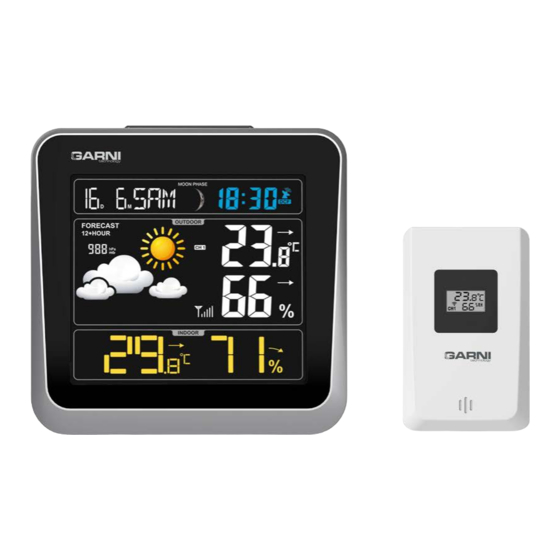

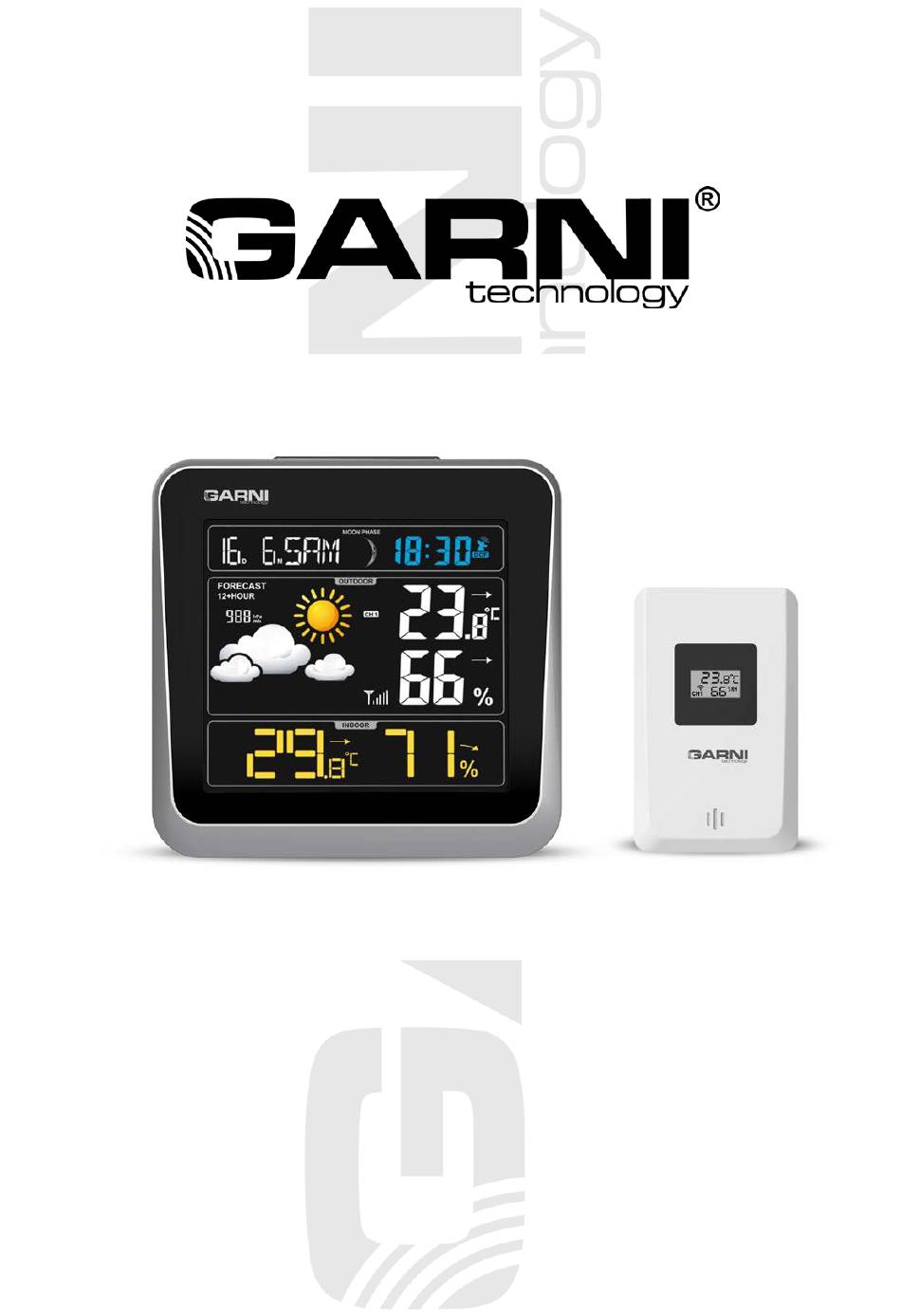

- Page 1 INSTRUCTION MANUAL FOR WEATHER STATION MODEL GARNI 525 GARNI 525...
- Page 2 PACKAGE CONTENTS Main unit (receiver) Wireless sensor GARNI 045H Power adaptor Manual DESCRIPTION - inverse color VA display - measurement of indoor and outdoor relative humidity (%) - measurement of indoor and outdoor temperature (°C or °F) - possibility to connect up to 3 wireless sensors for measurement of temperature and relative humidity at...
- Page 3 27) Main unit low battery icon 19) Channel number 28) Indoor temperature 20) Icon of activated alarm clock, Snooze 29) Wireless sensor signal reception icon function (Z 30) Indoor relative humidity 21) Time 22) DCF-77 signal reception icon Wireless sensor GARNI 045H...
- Page 4 31) Display 32) Stand 33) Battery compartment cover 34) Mounting hole 35) Battery compartment 36) Channel switch CH 37) TEST button 38) °C/°F button COMMISSIONING Main unit 1) The main unit can be powered by batteries (short-time display backlight for 10 seconds) or by an AC adapter (permanent display backlight possible, 3 brightness levels).
- Page 5 Switching between wireless sensor channels If there are multiple wireless sensors paired with the main unit, press the CHANNEL button on the main unit to display the measured temperature and relative humidity readings of each wireless sensor. For automatic switching of channels to which the wireless sensors are registered, press the button repeatedly until the display shows icon .
-
Page 6: Trend Arrows
TREND ARROWS The main unit display shows arrows next to the measured values. These arrows show the trends of the measured values increase steady state decrease SETTING OF UNITS °C and °F ▼ In the basic display mode, press /CF briefly to switch the displayed measured temperature units to °C or °F TIME AND DATE CONTROLED BY THE DCF-77 RADIO SIGNAL The weather station is equipped with the DCF-77 time/date control signal receiver. -
Page 7: Alarm Clock
Activating and deactivating the alarm To activate or deactivate the high and low outside temperature alarm, briefly press the ALERT button. When the alarm is activated, the main unit display shows the icon As soon as the set temperature of the upper or lower outdoor temperature limit has been reached, a beep sounds and icon and the temperature value will flash. -
Page 8: Moon Phases
The weather forecast is displayed using 6 icons Clear Somewhat cloudy Cloudy Precipitation (Rain) Torrential rain Precipitation (Snow) After switching on the station, it is necessary to wait for at least 24 hours to display the correct weather forecast. MOON PHASES If the phase icon is not displayed, it is the new Moon. -
Page 9: Safety Precautions
59 x 95 x 25 mm (without stand) GARNI technology a.s. hereby declares that the type of the radio equipment - weather station type GARNI 525 conforms to the Directive 2014/53/EU. The full EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...
