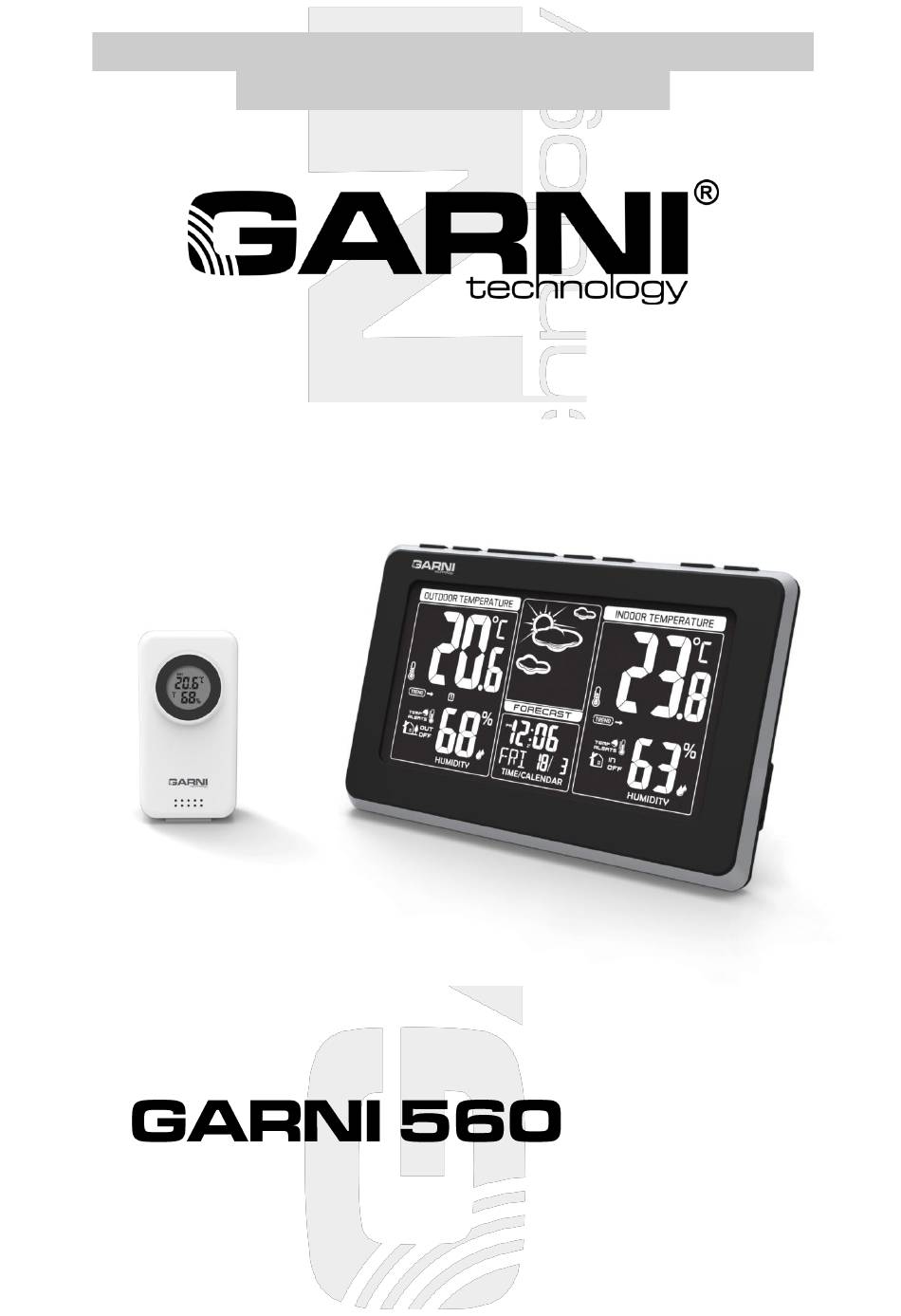

- Page 1 WEATHER STATION INSTRUCTION MANUAL MODEL GARNI 560 EASY II EASY II...
-
Page 2: Package Contents

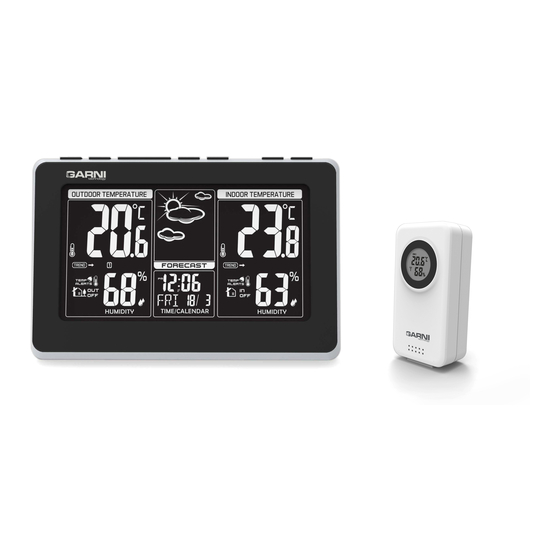

PACKAGE CONTENTS Main (receiving) unit Wireless sensor GARNI 040H AC Adapter Instruction Manual DESCRIPTION - outdoor and indoor relative humidity measurement (%) - outdoor and indoor temperature measurement (°C or °F) - the ability to connect up to 3 wireless sensors for temperature and relative humidity measurement at... -
Page 3: Device Startup
8) Abbreviation of the day’s name 1) Outdoor temperature value 2) Wireless sensor search icon, 9) Date 3) Outdoor temperature development arrow 10) DCF-77 radio signal icon 4) Wireless sensor channel number, automatic 11) Icon for upper and lower limits of indoor switching of channels, discharged batteries of temperature the wireless sensor... - Page 4 The main unit can also be powered using the AC adapter even if the batteries are inserted. Connect the AC adapter plug to the outlet on the side of the main unit and plug into the wall socket. When the main unit is put into operation, the wireless sensor signal reception is initiated. The icon flashes on the main unit’s display .
- Page 5 If the signal is not received, the DCF-77 signal reception icon will not appear on the display. If the signal is successfully received, the reception icon will be permanently shown on the display. DST means daylight saving time. Search for the DCF-77 signal is done daily at 01:00, 02:00 and 03:00 a.m. If the signal is not successfully received at 03:00 a.m., the main unit will search for it at 04:00 and 05:00 a.m.
- Page 6 Setting a 12 or 24 hour time display To select the time display in 12-hour or 24-hour format, press the DOWN button in basic view mode. If the 12-hour format is selected, the PM indicator will be displayed next to the time from 12:00 p.m. until 11:59 p.m.
- Page 7 To exit the snooze function, press any other button. If you don’t want to use the Snooze function, press any button except SNOOZE/LIGHT to switch off the alarm signal. If no button is pressed, the alarm signal will be turned off automatically after 2 minutes. Setting alarm for upper and lower temperature limits The weather station has the option to set the upper and lower limits of the indoor and outdoor temperature.
-
Page 8: Weather Forecast
Note: - if the measured temperature is outside the measuring range, HH or LL will appear on the display - if multiple wireless sensors are used, then the upper and lower temperature alarm can be set for each sensor separately. Select the sensor with the CHANNEL button TEMPERATURE DEVELOPMENT ARROW The weather station displays arrows for indoor and outdoor temperature, namely an increase, a steady state, or a decrease compared to previous measurements. -
Page 9: Low Battery Indications
light rain rain scattered thunderstorms thunderstorms light snowfall snowfall Note: the snow icon will appear instead of the rainfall or storm icon if the outdoor temperature is lower than 0°C. LOW BATTERY INDICATIONS Icon shown on the main unit display for the outdoor temperature and relative humidity indicates low batteries in the wireless sensor, and for internal temperature and relative humidity values it indicates low batteries in the main unit. -
Page 10: Safety Information
89 x 45 x 27 mm GARNI technology a.s. declares that the type of radio device - weather station model GARNI 560 EASY II - is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on the following website: www.garni-meteo.cz...
