- Page 1 EcoDrift Models: GDI-EXDRFT200...220 User Guide...
-
Page 2: Quick Start
Quick Start Open Cap on the side of your EcoDrift Turn on the Main Power Switch Press the Standby Button to power on your EcoDrift Search your Bluetooth Connection on your Smart Device Pair & Play POWER + CONNECT... -
Page 3: Control Buttons
LED Status Indicators Power, Battery Indicator, Bluetooth, EcoConnect Control Buttons Battery Level Indicators... - Page 4 Control Buttons & Operations On/Off Press the Standby Power Button once to power On/Off. IMPORTANT: Standby Power function will NOT operate when the Master Power is set OFF. Master Power Switch under the cap on the side panel must be set ON for Standby & your EcoDrift to operate.
-
Page 5: Speaker Volume
Speaker Volume Press to decrease or increase Speaker Volume. NOTE: Some Bluetooth devices may require to be manually set for maximum audio level. Your EcoDrift will beep to indicate when maximum volume setting is reached. Track Selection Press button once to select Previous Song track &... - Page 6 EcoTalk Press the EcoTalk button to activate the voice assistant on your device (Siri, OK Google, etc.). Once activated, the speakerphone mic on your EcoDrift will hear your voice commands and transfer them to the voice assistant on your device. NOTE: Before using the EcoTalk function, your device must be connected to the EcoDrift via...
-
Page 7: Battery Indicator
Battery Indicator Connect USB to power source. LED on the top panel indicates USB connection charging status. RED: charge in process GREEN: full charge complete NOTE: There also are four LED Battery Level Indicators located on the top of the unit. Each LED represents 25% of a charge. -
Page 8: Set Up Recommendations
Set Up Recommendations 1-2-3 Charge Your EcoDrift Before you power on your EcoDrift, connect the USB Micro port to the USB cable and a 5V power source to fully charge your EcoDrift for best performance. NOTE: Before using your EcoDrift for the first time, charge the unit until all battery level indicators are green, indicating a full charge. - Page 9 Power On, Battery, & LED Status Indicators Once fully charged, press the Standby Power Button the top of your EcoDrift. You will see the green LED light & you will hear, “Power on” when powering on. IMPORTANT: Make sure that the Main Power Switch, located in the back compartment under the cap, is set in the ON position.
-
Page 10: Bluetooth Pairing
Bluetooth device (Smart Device) and set the device in pairing mode. Available Bluetooth connections shall appear. Select the ECOXGEAR speaker from the list of discovered devices on your Bluetooth device. Wait for a few seconds until the connection is completed. - Page 11 When the ECOXGEAR selection is made and the Bluetooth connection is completed, your EcoDrift will announce: “Connection successful” Once connected, select and play your desired audio. Pairing Mode: If the LED is not flashing or if you wish to place...
- Page 12 will look to re-establish that connection. If Bluetooth is turned off on your Smart Device, the EcoDrift may not automatically look for the device. RECOMMENDATION: If you are not familiar with Bluetooth pairing for your Smartphone or other Smart Device, refer to the User Guide for your Smartphone to learn how to add and pair a new device (EcoDrift for...
- Page 13 EcoConnect - Wireless Stereo Connection of Two Speakers When you have two EcoDrift speakers and want to wirelessly pair them for surround sound, first follow the Bluetooth Pairing & Audio instructions to connect one EcoDrift speaker to your device. Leave this EcoDrift speaker powered on and connected to your device.
- Page 14 both of your EcoDrift speakers. Both speakers will announce, “EcoConnect, pairing speakers. ” Wait approximately 4 seconds for the speakers to wirelessly connect. Both speakers will announce “ Connection successful. ” and the Speakers paired. EcoConnect light will turn solid BLUE on both units once the connection is completed.
- Page 15 The EcoConnect connection between the two EcoDrift speakers will NOT automatically re-connect after the speakers are turned off. To re-establish EcoConnect between the speakers, after powering off, please follow the above steps. The EcoConnect feature NOTE: works when paired to another EcoConnect capable speaker with a distance of up to 30ft from each other.
- Page 16 Master Power Switch & Connections Master Power Switch EcoDrift has a separate Master Power Switch and a Standby Button. The switch MUST be set to the ON position to power your EcoDrift. Once the switch is set to ON, use the Standby Button located on the top panel to turn the unit On/Off.
- Page 17 Audio AUX-IN Connect an audio device using the 3.5mm cable connection as an alternative to a Bluetooth connection to your EcoDrift. NOTE: Volume level must be controlled from the audio device when connected to the AUX-IN connection. Input Connect the USB cable to the USB micro Input to charge your EcoDrift.
- Page 18 POWER + CONNECT Important: Maintaining Waterproofness Your EcoDrift is only waterproof when the cap is properly closed. In order to properly close the cap, push firmly to be sure the cap fits flat and flush along the edges with the panel. If not properly closed the unit is NOT watertight and may not float.
-
Page 19: Specifications
Specifications Unit Dimensions 5.5” 5.5” 2.3” POWER + CONNECT Mount Attachment Point... - Page 20 Unit Weight 17 ounces Output Power 15W (15 Watt / 4 ohms), x1 woofer (Ø3”) S/N Ratio 88dB +/- 3dB Power Source 3.7V, 2600mAh Lithium Ion Battery USB Input 5V, 1A Frequency Range 125Hz-18,000Hz Bluetooth Bluetooth® CSR 4.1 Up to 100 ft / 30 m Play Time 15+ hours from full charge at 75% volume level...
- Page 21 Mount Attachment Point ¼” diameter EcoConnect TrueWireless Stereo (TWS) Up to 30 ft / 9.1 m between paired speakers Charging Options USB cable to USB outlet, to 5V AC adapter, or to Computer Charging Time Approximately 3 hours Recommended Storage (Battery) Temperature 59°F / 15°C Operating Temperature...
-
Page 22: What's In The Box
What’s in the Box EcoDrift Models: GDI-EXDRFT200...220 User Guide EcoDrift Unit User Guide Carabiner USB Cable... -
Page 23: Optional Accessories
Optional Accessories For Charging AC (5V, 1A) USB Wall Outlet Power Adapter AC (5V, 1A) USB Car Power Adapter For Mounting Suction Cup Mount (¼” mount) Handlebar Mount Adapter (¼“ mount) -
Page 24: Fcc Statement
FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. - Page 25 PRODUCT USE AND PROTECTION: Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP67 waterproofing standards, which...
- Page 26 water, clean it thoroughly after use with fresh water. The USB cables and unit with an improperly fitted cap are NOT waterproof. To prevent fire or shock, do NOT attempt to charge this unit if it is wet or you suspect water has entered the unit.
- Page 27 Do not attempt to mount the unit except with the approved ECOXGEAR mounts. Doing so could cause damage to the unit allowing water to ingress. A unit with water ingress should not be charged due to potential risk of fire or shock.
- Page 28 1) Use the ECOXGEAR speaker in accordance with any music or noise rules and regulations. 2) Use the proper ECOXGEAR mounts if you intend to mount the unit. 3) Properly seal the ECOXGEAR prior and after each use when in humid or water environments to avoid water damage to the internal components.
- Page 29 2) Never use your ECOXGEAR if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the speakers, housings, or gaskets. In the event of a severe impact to your unit please return the unit to Grace Digital to review for potential damage.
- Page 30 6) AVOID prolonged exposure to ultraviolet radiation (UV sunlight) and strong magnetic fields. 7) Periodically check the rubber seal for premature wear. 8) Periodically clean the rubber with a soft moist cloth and ensure no objects such as dirt, hair, or sand are on the rubber seal ring. Do NOT use any oily solvent or chemicals for cleaning.
- Page 31 Please keep all receipt and purchase records as your evidence of the date and place of purchase. EcoDrift by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Designed and Engineered in the USA. Made in China.
Need help?
Do you have a question about the EcoDrift GDI-EXDRFT200 and is the answer not in the manual?
Questions and answers

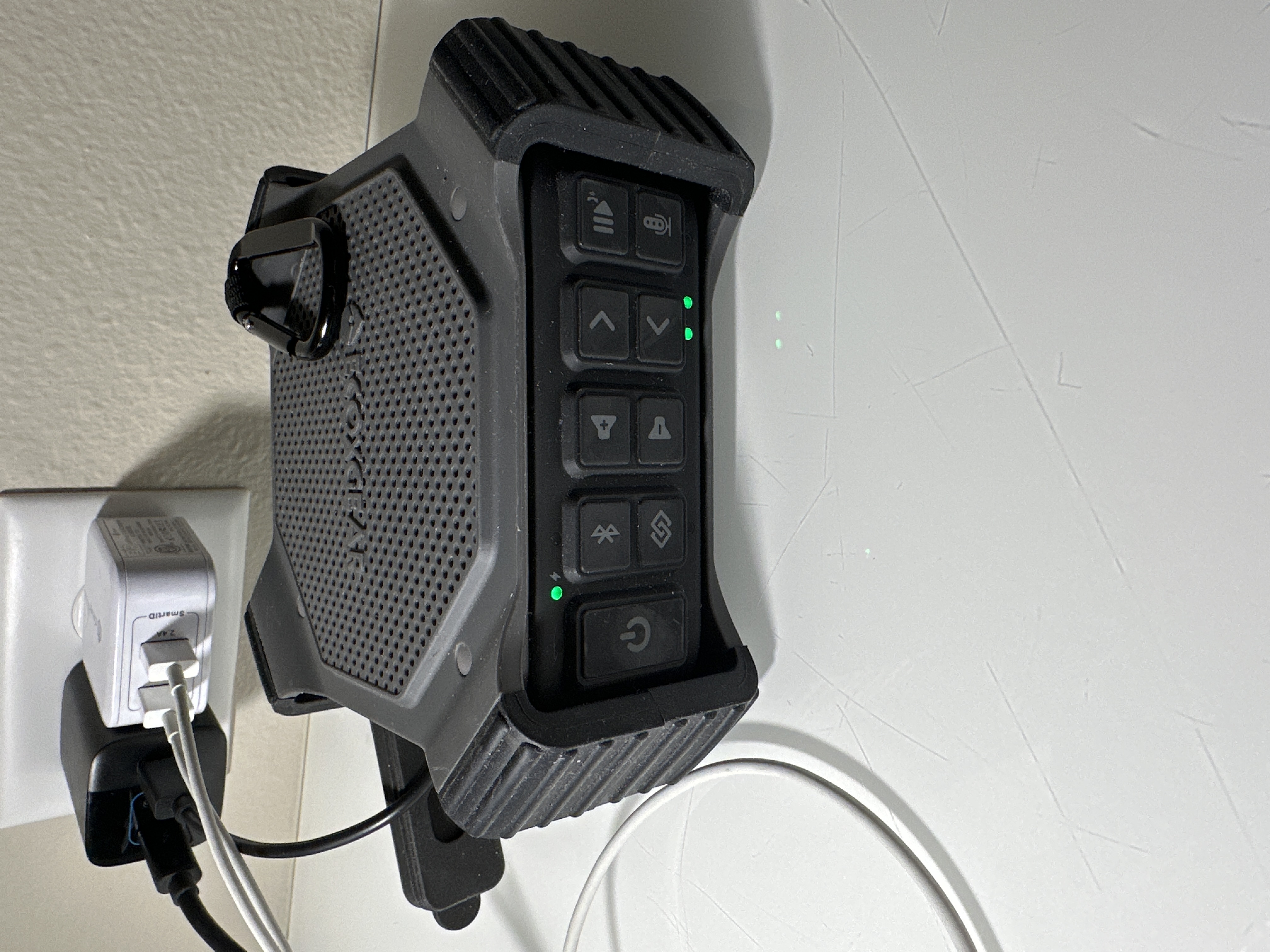

After leaving on charger for several hours I only get 2 green lights. Can you replace the battery?
