protech Prox SE-8124 Quick Reference Manual

SE-8124
Quick
Reference
Guide

Specifications

System
Intel ® J1900/E3845 CPU
CPU Support
Intel ® SOC
Chipset
Memory Support 1 x DDR3L SO-DIMM Socket (up to 8 GB)
Drive Bay 1 x 2.5 inch SATA HDD or SSD driver space
Power Requirement 12~24V DC-in
Watchdog 1~255s Watchdog
Expansion Slot 1 x full-sized miniPCIe (PCIe+USB+external SIM card),
1 x half-sized miniPCIe (PCIe+USB)
System Weight 2.5 kg
Dimension (WxHxD) 217.5 x 46 x 148 mm (8.56" x 1.77" x 5.83")
Certificate FCC/CE
OS Win7/ Win8.1/ WES7/ WE 8.1 Industry Pro
I/O Ports
Serial Port COM3/4 for RS232 (front), COM1/2 for +5V/+12V/RI
selectable by jumper,RS232/422/485 selectable under BIOS
Digital I/O 4-in/4-out (front)
USB 1 x USB 2.0 port (front), 2 x USB 2.0, 1 x USB 3.0 (rear)
SIM card 1 x SIM card slot with cover
DVI 1 x DVI-D (front), 1 x DVI-I (rear)
SD 1 x SD Card with cover
Audio Realtek high defenition audio, 1x Line Out & 1x Mic In
audio jack by pin header
LAN 2 x RJ45 connector with PoE support Wake on LAN/ PXE
Power ON/OFF 1x power button switch (rear), 1x 2pin connector for
remote power button (front)
Reset 1x reset (rear)
Environment
Operating Temp. 0~45°C (32~113°F) w/ ST SSD, 0~40°C (32~104°F) w/ HDD.
(with air) -30~60°C(-22~140°F) w/ wide temp. peripherals w/o PoE
(w/o Audio) (E3845 only)
-30~55°C(-22~131°F) w/ wide temp. peripherals w/ PoE
(w/o Audio) (E3845 only)
Storage Temp. -30 ~ 80°C (-22~ 176°F)
Humidity Operating: 10 ~ 90%, Storage: 10~95%RH
Ver. Q2
All Rights Reserved. Copyright 2022
SE-8124

Packing Checklist

If you discover any item below damaged or lost,
please contact your vendor.
SE-8124
Driver/Manual DV
This Quick Reference Guide
DVI to D-Sub Connector
Mini Jumper (2 mm)
Power Cable (DC-in 140 mm)

System View

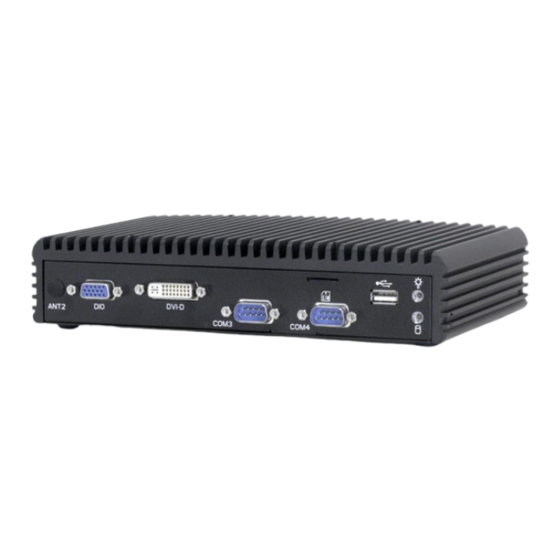

Front View
DVI-D
ANT2
DIO
COM3 COM4
Top View
217.50
Rear View
GND VCC
Reset DVI-I
COM2
COM1
Quarter View
SE-8124
x 1
x 1
x 1
x 1
x 6
x 1
SE-8124
Side View
46
Remote SW
140.60
Bottom View
LAN1 LAN2
ANT1
PoE ON
Measurement: mm
