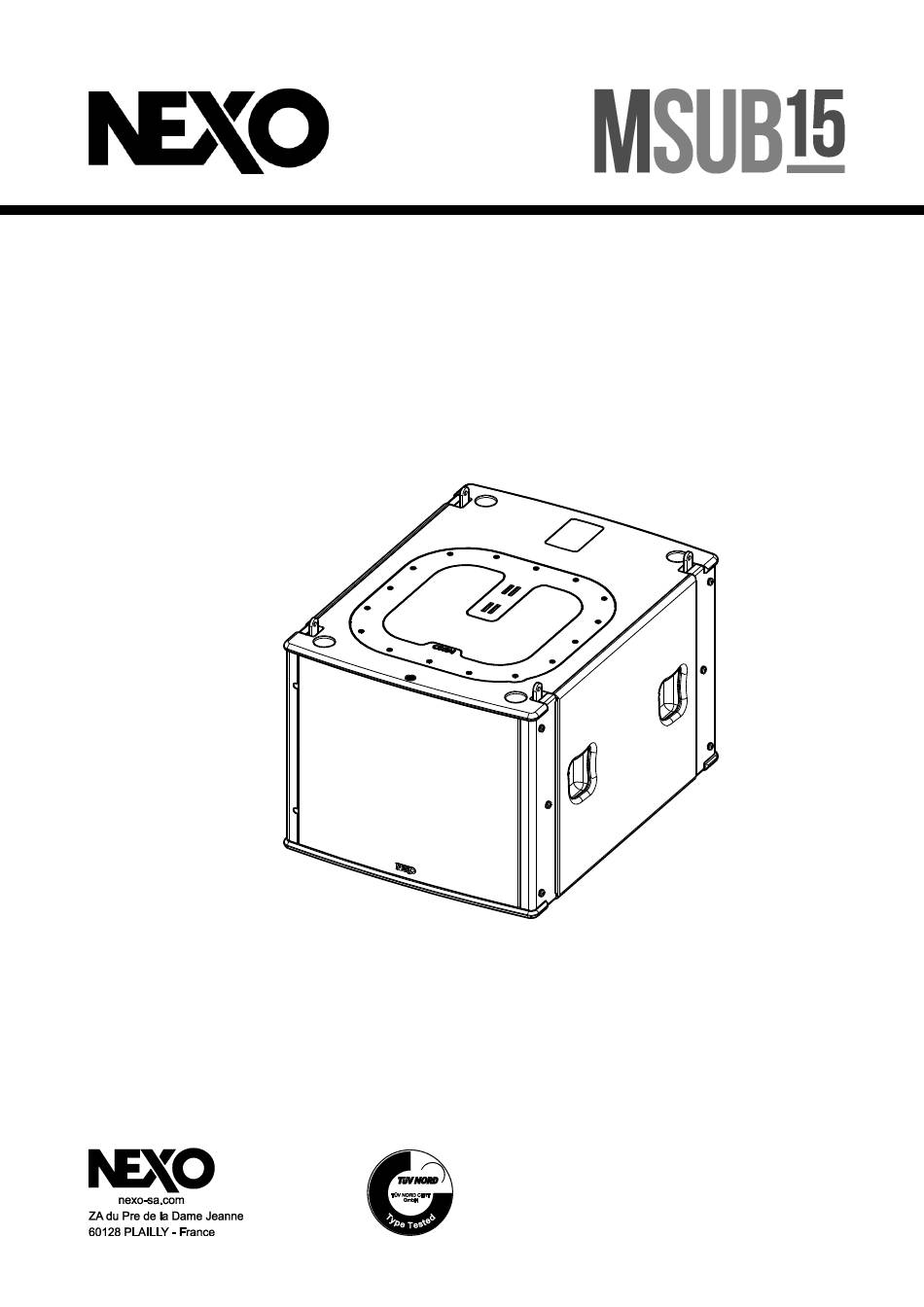

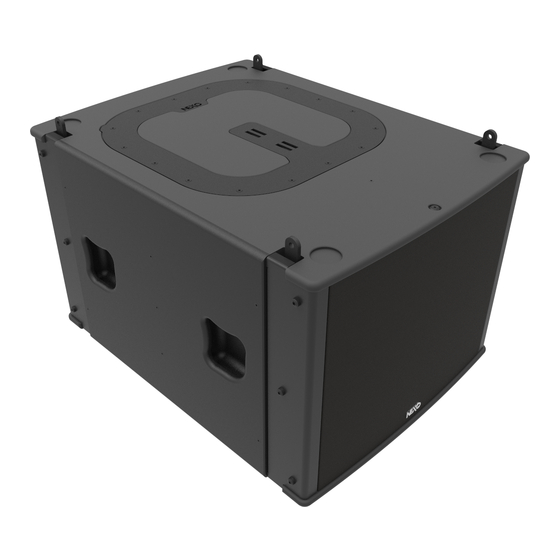

  • Page 1 DP2754-02-DI MSUB15-I User Manual...

  • Page 2: Table Of Contents

    ARRAY EQ................................. 12 MAINTENANCE ............................... 13 TECHNICAL SPECIFICATIONS ..........................15 10 USER NOTES ................................16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.

  • Page 4: Msub15 Rigging

    Page 4/16 MSUB15 RIGGING MSUB15 RIGGING Open the 4 bumpers (Tx30) Insert the axis, positionning the pin and secure by bending the legs.

  • Page 5: Msub15 - Accessories

    All MSUB15 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling MSUB15 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire MSUB15 accessory range if any component is purchased from different supplier.
  • Page 6 Page 6/16 MSUB15 - ACCESSORIES VNT-GSTKM10S – VNT-GSTKM10L...

  • Page 7: Description

    DESCRIPTION Page 7/16 DESCRIPTION The MSUB15-I is a compact high technology arrayable sub, the ideal companion for the GEOM10 line array element, sharing same aesthetic design and arrayable in the same flown or stacked cluster. Versions: MSUB15-I: for fix applications; Black MSUB15-PW: for fix applications;...
  • Page 8 Page 8/16 SETTING RANGE « OMNI » Assembly « CARDIO » Assembly ➢ With 1 to 3 GEOM10 o For these configurations, crossover frequency 85Hz is recommended (85 Hz also for pour GEOM10).
  • Page 9 SETTING RANGE Page 9/16 o For stack configuration using MSUB15 in OMNI or CARDIO mode with 1 Back and 2 Front and GEOM10 on top of them, cross over 85Hz is recommended (85 Hz also for GEOM10). A small overlap could have impact if needed, for example (MSUB15 120 Hz and GEOM10 75 Hz);...
  • Page 10 For long throw stacking application, up to 6 GEOM10, crossover 85 Hz is recommended (also for GEOM10). ➢ With 7 to 12 GEOM10 o For very long throw application, with flowned or stacked MSUB15, recommended MSUB15-I cardioid mode, cross over MSUB15-I 95 HZ and 12 GEOM10 cross over 75Hz for maximum impact.
  • Page 11 SETTING RANGE Page 11/16 o Ground Stack Sub design is: ➢ GEOM10 MON and MSUB15 MON o Minimum phase setup not compatible with others. o Used for high power stage Monitor, DJ Monitor, Drum Fill, Stack side. o Always use same cross over between GEOM10 and MSUB15, no overlap possible without doing phase adjustment by yourself.

  • Page 12: Array Eq

    Page 12/16 ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values):...

  • Page 13: Maintenance

    MAINTENANCE Page 13/16 MAINTENANCE 8.1 Grille changing Remove 8 screws (TX25) on the side, top and below to remove the Remove 6 screws (Tx30) and the bumper. grille. 8.2 15’ Driver’ Remove 8 screws (TX25), use a TX25 wrench to unscrew the 2 Remove 16 screws (Tx25) to remove the trap.
  • Page 14 Page 14/16 MAINTENANCE To pull out the driver : Lift up and pull it to the back. Shift it to pass through the opening. Red (+) / Black (-) 8.3 Spare parts MARK QUANTITY REFERENCE DESIGNATION 05MSUB15UA-I Complete grille Installation Black (with fasteners) 05MSUB15UA-IPW Complete grille Installation White (with fasteners) 05MSUB15LEX...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Page 15/16 TECHNICAL SPECIFICATIONS MSUB15 NEXO E WITH LECTRONICS 40Hz – 120Hz Frequency range (±6dB) Sensibility (1W / 1m) 101dB SPL Nominal Peak SPL Level (1m) 136dB Peak Operating voltage 40 Vrms (180 Vpeak) Crossover Frequency 40-65 ; 40-75 ;40-85 ;40-95 ;40-120 Hz 8Ω...

  • Page 16: User Notes

    Page 16/16 User notes 10 U SER NOTES France Nexo S.A. Parc d’activité de la Dame Jeanne F-60128 PLAILLY Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr nexo-sa.com...
