Zoeller AquaNot Fit 508 Manual

Product information presented
here reflects conditions at time
of publication. Consult factory
regarding discrepancies or
inconsistencies.
Patent No. D740329

CONTROLLER

The Aquanot Fit 508 with Z Control
®
performance, self-testing internet-connected battery backup pump
system.

PUMP

• 12 volt, highly efficient, non-corrodible pump construction.
Supplied with 9' (2.7 m) leads.
• Legs allow free-standing installation
• Quick disconnect discharge
• Aluminum seal pocket and cooling plate
• Integrated check valve
CONTROLLER
The Aquanot Fit DC Controller keeps the battery charged. The
®
controller has many built-in features such as:
• Monitors the switches,runs the pump
• Performs Self-testing diagnostics
• Communicates with the Z Control
commands from user through Cloud such as "Silence",
"Reset", "Test", and many configuration changes
• 7 amp

ALERTS

•
• Pump cycled
• High water •
•
• Battery fault
• Switch fault
• Pump fault

BUTTONS

• Alarm Silence/Reset - press to silence alarms. Press and hold
for three seconds to reset alarms.
• Test - Press to initiate pump test

SWITCHES

• Reliable, vertical float switch for adjustable operation.
• High water reed sensor provides high water signal and
redundant pump run.

BATTERY CASE

The included battery case will accommodate maximum battery
dimensions of 13" (330 mm) L x 7-1/2" (191 mm) W x 9-1/2" (241
mm) H and fits all group size 27, 29 and 31 batteries. Made from
non-corrodible polyethylene. To use multiple batteries, order extra
battery case with hookup wire (P/N 007861).

FITTINGS

An integrated DC pump discharge check valve, additional thread-in
AC pump check valve, tee, and adapter are included.
502-778-2731 | 800-928-7867 | 3649 Cane Run Road | Louisville, KY 40211-1961 | zoellerpumps.com
TECHNICAL DATA SHEET
MODEL 508 12-VOLT BACKUP
Submersible Sump Pump System
technology is a premium high
®
Cloud; receives
®
Connection fault
Power outage/restored
Pump activation
© Copyright 2020 Zoeller
AQUANOT
Solid
System
No Faults (Green)
Ready
Charged (Green)
Battery Charging (Yellow)
Bad Battery (Red)
Pump Ran
DC pump
(Yellow)
Float
High Water (Red)
Status
Z Control Connected

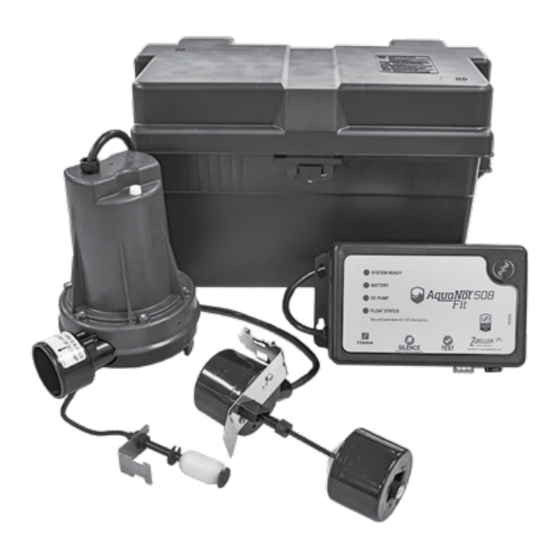

Aquanot ® Fit 508 system
Aquanot ® Deep-cycle Battery (purchase separately)
P/N 10-1450 - AGM (shown)
P/N 10-0761 - Wet
Co. All rights reserved.
®
SECTION: 2.65.013
Supersedes
FIT
®
Flashing Off
AC off with no
--
faults (Green)
Low Battery (Red) No AC Power
Pump Running
(Yellow)
--
Pump Fault (Red)
Float Fault (Red) --
Broadcasting
Searching SSID or
Dormant
FM3124
0320
0918
