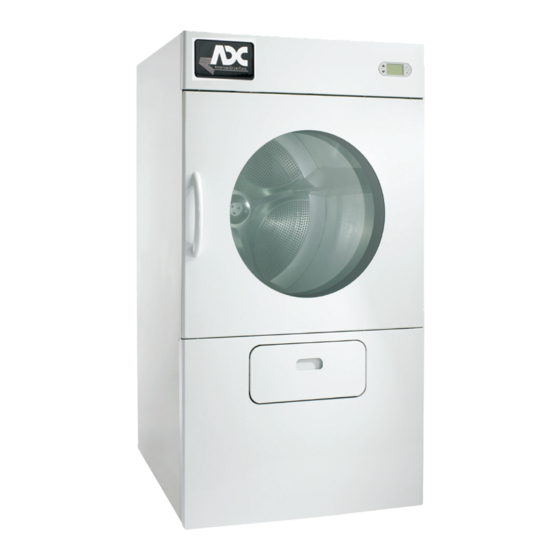

HB76 / ES76 / M76ES
Installation/Operator Manual
WARNING: For your safety the information
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●
Do not try to light any appliance.
●
Do not touch any electrical switch;
do not use any phone in your
building.
●
Clear the room, building or area of
all occupants.
●
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
●
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
—Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●
Ne pas tenter d'allumer d'appareils.
●
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●
Évacuez la pièce, le bâtiment ou la
zone.
●
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L'installation et l'entretien doivent être
assurés par un installateur ou un
service d'entretien qualifié ou par le
fournisseur de gaz.
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (269) 923-3000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 113615 - 20
Advertisement
Table of Contents
Related Manuals for American Dryer Corp. ES76
Summary of Contents for American Dryer Corp. ES76
- Page 1 HB76 / ES76 / M76ES Installation/Operator Manual AVERTISSEMENT: Assurez-vous de bien WARNING: For your safety the information suivre les instructions données dans cette in this manual must be followed to notice pour réduire au minimum le risque minimize the risk of fire or explosion and d’incendie ou d’explosion ou pour éviter...
- Page 2 Retain This Manual in a Safe Place for Future Reference This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation. Only qualified technicians should service this equipment. OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.
-
Page 3: Table Of Contents
WARNING WARNING Children should not be allowed to play on or near the dryer(s). Children should be supervised if Proposition 65 near dryer(s) in operation. Use of this product could expose you to substances Under no circumstances should the dryer door from fuel combustion that contain chemicals switch(es), lint door/drawer switch(es), or heat known to the State of California to cause cancer,... -
Page 4: Safety Precautions
Safety Precautions ___________________ WARNING WARNING Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber For your safety, the information in this manual must materials. Drying in a heated tumbler may damage be followed to minimize the risk of fire or explosion plastics or rubber and also may be a fire hazard. - Page 5 WARNING WARNING You must disconnect and lockout the electric supply This appliance must only operate with the gas type and the gas supply or the steam supply before any indicated on the dryer’s data plate. If the appliance is covers or guards are removed from the machine to converted (gas type is changed), a data plate allow access for cleaning, adjusting, installation, or amendment must be obtained from American Dryer...
-
Page 6: Specifications
Specifications _____________________________________________________________________ 34.02 kg MAXIMUM CAPACITY (DRY WEIGHT) 75 lb TUMBLER DIAMETER 37” 93.98 cm 90.17 cm TUMBLER DEPTH 35-1/2” TUMBLER VOLUME 22.09 cu ft 625.52 L 0.56 kW TUMBLER MOTOR 3/4 hp BLOWER / FAN MOTOR 1/2 hp 0.37 kW 69.53 cm DOOR OPENING (DIAMETER) 27-3/8”... - Page 7 Specifications _____________________________________________________________________ NOTE: The manufacturer reserves the right to make changes in specifications at any time without notice or obligation. 113615 - 20 www.adclaundry.com...
-
Page 8: Installation Procedures
Installation Procedures ______________ Unpacking / Setting Up _______________ Installation should be performed by competent professional Remove protective shipping material (i.e., plastic wrap and in accordance with local, state, and country codes. In the optional shipping box) from the dryer. absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1- IMPORTANT: Dryer must be transported and handled in LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA... -
Page 9: Fresh Air Supply Requirements
Fresh Air Supply Requirements ______ Exhaust Requirements _______________ This appliance may only be installed in a room that meets Exhaust ductwork should be designed and installed by a the appropriate ventilation requirements specified in the qualified professional. Improperly sized ductwork will create national installation regulations. - Page 10 Outside Ductwork Protection To protect the outside end of the horizontal ductwork from the weather, a 90° elbow bent downward should be installed where the exhaust exits the building. If the ductwork travels vertically up through the roof, it should be protected from the weather by using a 180°...
-
Page 11: Electrical Information
IMPORTANT: A separate protected circuit must be A = 8-inch (20.32 cm) B = 20 feet (6 meters) provided to each dryer. The dryer must be connected to the electric supply shown on the data label. In the case of 208 VAC or 240 VAC, the supply voltage must match the electric service specifications of the data label exactly. - Page 12 Electric Models Only Electrical Connections All electrically heated dryers must be connected to the electric A wiring diagram is located behind the control panel for service shown on the dryer’s data label. The connecting wires connection data. must be properly sized to handle the rated current. If local codes permit, power to the dryer can be made by the use of a flexible UL listed power cord/pigtail (wire size must ELECTRICAL SERVICE SPECIFICATIONS...
-
Page 13: Gas Information
The neutral will only be used on 4-wire service. This is In Australia, the fuel gas code is AS/NZS5601, local authority, typical for 380-416V, 50 Hz. gas, electricity, and any other relevant statutory regulations. It is important that gas pressure regulators meet applicable 440-480 Volt Applications pressure requirements, and that gas meters be rated for the total amount of all the appliance Btu being supplied. - Page 14 Heat Input/Orifice (Injector) Data Gas Specifications for CSA Approved 60 Hz Dryers** Nominal Supply Gross Burner Orifice Orifice Size Heating Value Pressure Heat Input Pressure (Injector) Type Quantity B tu /ft in WC Btu/hr in WC Natural 1,000 7.0-13.0 130,000 38.1 4.039 *Propane...
- Page 15 Piping / Connections WARNING Inlet Connection – 1/2” M.N.P.T. Never test for leaks with a flame!!! CE and Australian dryer connections will be B.S.P.T., all others will be N.P.T. Installer within Australia – refer to AS/NZS5601.1 for Converting from One Family guidance on gas supply pipe sizing required for this of Gas to Another _____________________ appliance installation.
- Page 16 Conversion from Natural Gas Remove 6 burner tube mounting screws and remove burner to Propane or Butane Gas on Dryers tubes in order to gain access to the orifices. (Figure 2). made for 50 Hz Electrical Service FIGURE 2 WARNING (CE Dryers) This appliance must only be operated with the gas type indicated on the dryer’s data plate.
- Page 17 Reinstall the burner tube onto the burner base. IMPORTANT: Conversions done improperly can result in a fire or explosion! Use a flat screwdriver to remove the regulator vent cap. Conversion from Propane • For unregulated propane gas (most countries): install or Butane Gas to Natural Gas on Dryers blocking pin (ADC P/N 140414).
-
Page 18: Gas Pressure Testing
Gas Pressure Testing _________________ Connect the union and the 3 electrical plugs. Open all shutoff valves, reconnect electrical power to the For proper operation, the gas pressure must be correct, dryer, and test for leaks. consistent and maintained at the gas pressure rates shown on page 14. - Page 19 IMPORTANT: Coil failure due to improper pH level will The steam supply line to the dryer must include a 12-inch void the warranty. (30.48 cm) riser along with a drip trap and check valve. This will prevent any condensate from entering the steam coil. Steam Requirements –...
-
Page 20: Water Information
Water Information ____________________ WARNING Before You Start Check Local Codes and Permits Electrical power must be provided to the dryer at all times. If the main electrical power supply to the dryer Call your local water company or the proper municipal is disconnected, the fire suppression system is authority for information regarding local codes. -
Page 21: Preoperational Instructions
Coin Models Gas Dryers Microprocessor Controller (Computer) Open all shutoff valves. When a gas dryer is first started (during initial start-up), it When the microprocessor controller (computer) is in the has a tendency not to ignite on the first ignition attempt. ready state, the L.C.D. -
Page 22: Service / Parts Information
Service / Parts Information __________ Returning Warranty Parts Service All dryer or parts warranty claims or inquiries should be addressed to the Warranty Parts Department. To expedite Service must be performed by a qualified trained technician. processing, the following procedures must be followed: If service is required, contact the reseller from whom the No parts are to be returned without prior written authorization equipment was purchased. -
Page 23: Routine Maintenance
Routine Maintenance _________________ WARNING Cleaning When cleaning steam coil fins, be careful not to bend A program and/or schedule should be established for the fins. If fins are bent, straighten by using a fin periodic inspection, cleaning, and removal of lint from various comb, which is available from local air-conditioning areas of the dryer, as well as throughout the ductwork supply houses. -
Page 24: Data Label Information
Data Label Information _______________ CE Label Standard Label When contacting ADC, the information on the data label is required to ensure proper service/parts assistance. The data label is located at the upper left rear of the dryer behind the back guard. AGA Label 1. -
Page 25: Programming
Programming _________________________ Event Codes Defined: Top Pocket / Bottom E1 / E4: While attempting to turn on the burner, no burner return Enter Service Mode by Inserting Key and Turning Clockwise signal was received within RADIANT SENSOR COOL DOWN TIME. Main Service Mode window will appear and offer 5 selections: 1: Machine Info 2: Program Setup... - Page 26 ADC Part No. 113615 20 - 06/22/17...
