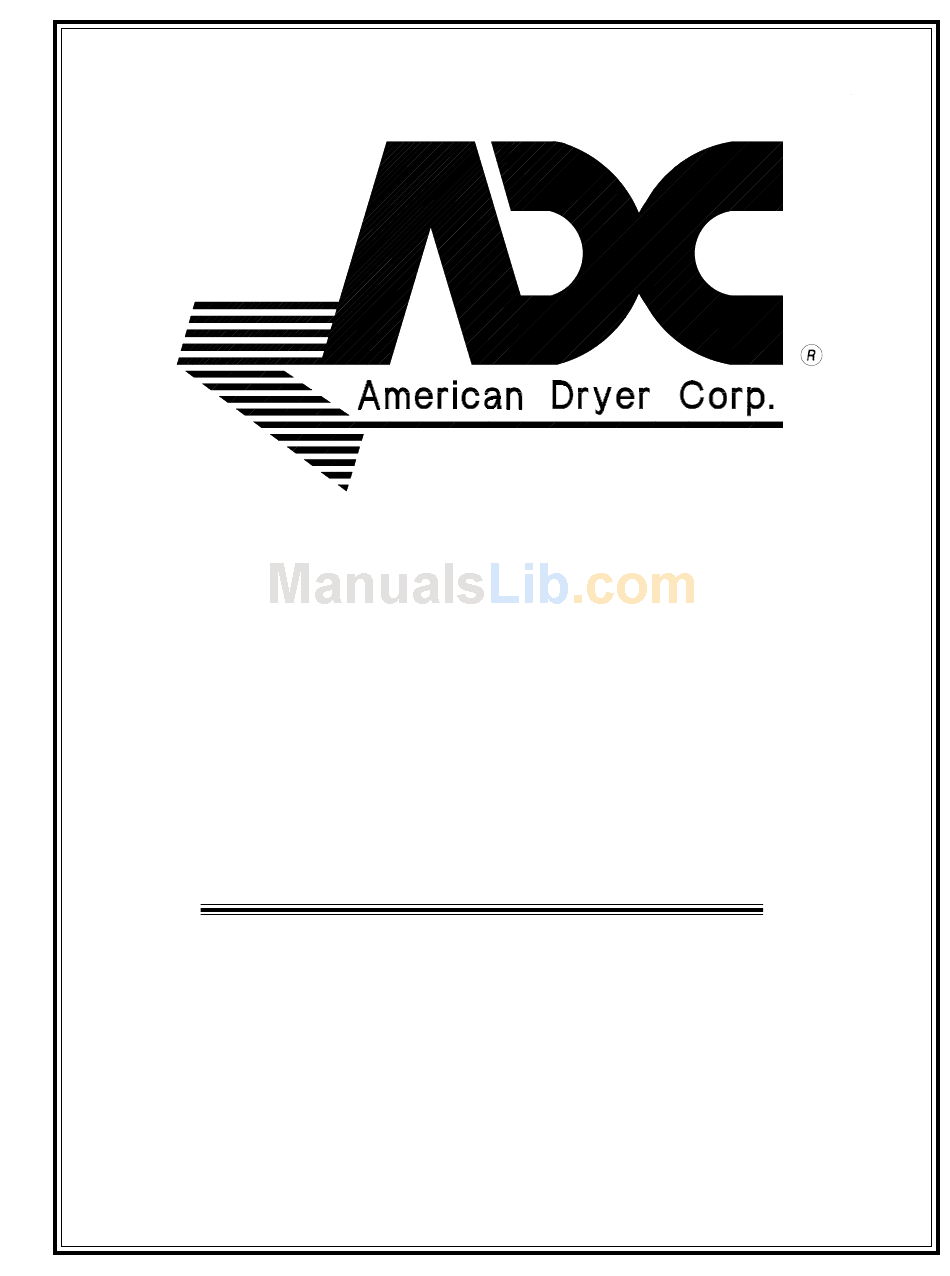

- Page 1 ADG-758 (Gas) Parts Manual American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 e-mail: techsupport@amdry.com www.amdry.com ADC Part No. 450417...
- Page 2 For your convenience, log the following information: MODEL NO. “IMPORTANT NOTE TO PURCHASER” POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de yout autre appareil. ADG-758...
-
Page 3: Table Of Contents
Table of Contents Control Door Assembly Without Trim ... 2 Control Door Assembly With Trim ... 3 Phase 5 OPL Microprocessor Control Panel Assembly ... 4 Phase 5 Coin Microprocessor Control Panel Assembly ... 5 Phase 5 Coin and OPL Microprocessor Control Box Assembly ... 6 Coin Vault Assembly ... -
Page 4: Control Door Assembly Without Trim
Illus. No. Part No. Qty. Description 881053 ADC Logo ONLY 870011 Logo Double Adhesive Tape Kit ONLY 881045* Control Door (includes illus. nos. 2 and 3) 881046 Stainless Steel Control Door (includes illus. nos. 2 and 3) 117604 Neoprene Sponge Tape (sold by the foot) 150300 #10 x 1/2”... -
Page 5: Control Door Assembly With Trim
Control Door Assembly With Trim Illus. No. Part No. Qty. Description 160015 High Security MK-100 Lock Assembly with Key (for Coin Models Only) 160017 Special Dummy Lock ONLY (for non-Coin Models Only) 160104 MK-100 Key ONLY 160016 Lock Cam ONLY 881053 ADC Logo ONLY 870011... -
Page 6: Phase 5 Opl Microprocessor Control Panel Assembly
Phase 5 OPL Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112535 OPL English Keyboard Label Assembly 112276 OPL Stick-on Labels (English ONLY) ... Not Illustrated 112275 OPL Stick-on Labels ... Not Illustrated (Spanish, Italian, and Hebrew) 112277 3-Language OPL Stick-on Labels ... -
Page 7: Phase 5 Coin Microprocessor Control Panel Assembly
Phase 5 Coin Microprocessor Control Panel Assembly Illus. No. Part No. Qty. Description 112526 Coin Keyboard Label Assembly 801213 Phase 5 Coin Control Panel Assembly (includes illus. nos. 1, 2, 4, 5, and 6) 801229 Phase 5 Coin Control Panel Assembly with Battery Option (includes illus. -
Page 8: Phase 5 Coin And Opl Microprocessor Control Box Assembly
Phase 5 Coin and OPL Microprocessor Control Box Assembly Illus. No. Part No. Qty. Description 141403 Transformer - 24 VAC 150300 #10 x 1/2” Hex Washer TEK Screw 120715 30-Position Terminal Block 150002 #6-32 x 1” Phillips Round Head Machine Screw 151000 #6-32 Pal Nut 136057... -
Page 9: Coin Vault Assembly
Coin Vault Assembly Illus. No. Part No. Qty. Description 802112 Microprocessor Coin Vault Assembly Complete (includes illus. nos. 1 through 6) 802117 Microprocessor Coin Vault ONLY 160028 Cam for 1/4 Turn Lock ONLY 875061 1/4 Turn Lock with Key and Cam 160105* 1/4 Turn Mer-Pel Key ONLY 802020... -
Page 10: Dual Timer Control Panel Assembly
Dual Timer Control Panel Assembly American Dryer Corporation 450417-2... - Page 11 Dual Timer Control Panel Assembly Illus. No. Part No. Qty. Description 123005 Red Indicator Light - 24 VAC 122400 Rocker Heat Selector Switch 824015 Dual Timer Control Panel Assembly Complete - 24 VAC (includes illus. nos. 1 through 21) 800051 Dual Timer Control Panel ONLY 131917 Push-to-Start Relay - 24 VAC...
-
Page 12: Dual Timer Control Box Assembly
Illus. No. Part No. Qty. Description 122603 9-Pin Socket Connector 122701 Socket Terminal ONLY 122801 Pin/Socket Extraction Tool 315010 9-Pin Connector Bracket 150300 #10 x 1/2” Hex Washer TEK Screw 150300 #10 x 1/2” Hex Washer TEK Screw 141403 Transformer - 24 VAC 136008 Fuse Block/Strip ONLY 136057... -
Page 13: Front Panel Assembly
Front Panel Assembly Illus. No. Part No. Qty. Description 875302* Right Hand Insulated Front Panel Assembly Complete (includes illus. nos. 1, 2, 3, and 6) 875313 Stainless Steel Right Hand Insulated Front Panel Assembly Complete (includes illus. nos. 1, 2, 3, and 6) 154215 5/32”... -
Page 14: Main Door Assembly
Illus. No. Part No. Qty. Description 881421 Gray Plastic Main Door Assembly Complete with Mechanical Fasteners (includes illus. nos. 1 and 5 through 9) 800448 12-1/2” Stainless Steel Main Door Hinge Assembly 150410 #10-24 x 3/8” Phillips Pan Head Taptite Screw 152014 1/4-20 Free Spin Wash Nut 102349... -
Page 15: Main Door "Cold Rolled Steel (Crs)" Assembly
Main Door “Cold Rolled Steel (CRS)” Assembly Illus. No. Part No. Qty. Description 881150 Black Main Door Assembly Complete (includes illus. nos. 1, 2, and 8 through 15) 102354 Door Gasket 170730 Clear Glass Adhesive (10.3 oz. cartridge) 170731 Black Glass Adhesive (10.3 oz. cartridge) 881152 Black Top Hinge Block Assembly (includes illus. -
Page 16: Cold Rolled Steel (Crs) Door Front Panel
Illus. No. Part No. Qty. Description 881270* Right Hand Front Panel Assembly (cold rolled steel [CRS] door) (includes illus. nos. 1 through 3) 881288 Stainless Steel Front Panel Assembly (cold rolled steel [CRS] door) (includes illus. nos. 1 through 3) 881996* Left Hand Front Panel Assembly (cold rolled steel [CRS] door) (includes illus. -
Page 17: Main Door Switch Housing
Main Door Switch Housing Illus. No. Part No. Qty. Description 152013 #6-32 Hex Nut 153008 #6 Lock Washer 137005 Single-Pole Door Switch 121028 Insulated Female Terminal 154281 3/8” Standard Nylon Spacer 800448 12-1/2” Stainless Steel Main Door Hinge Assembly (includes illus. nos. 6 and 7) 153565 #6-32 x 1”... -
Page 18: Basket (Tumbler)/Support Assemblies
Basket (Tumbler)/Support Assemblies American Dryer Corporation 450417-2... -
Page 19: Basket (Tumbler)/Support Assemblies
Basket (Tumbler)/Support Assemblies Illus. No. Part No. Qty. Description 800708 Basket (Tumbler) ONLY without Felt Collar 800857 Stainless Steel Basket (Tumbler) ONLY without Felt Collar 800816 Non-Reversing Basket (Tumbler) and Support Assembly Complete (includes illus. nos. 1 through 10) 800873 Stainless Steel Non-Reversing Basket (Tumbler) and Support Assembly Complete (includes illus. -
Page 20: Drop Lint Door Assembly Without Trim
Illus. No. Part No. Qty. Description 800150 Knob Latch Kit Assembly (includes illus. nos. 1 and 2) 160200 Knob Latch ONLY with 2 Screws (without cam) 160003 Dummy Lock ONLY (for Non-Coin Models) 160104 MK-100 Key ONLY (for Dummy Lock) 160008 Lock Cam for AD-100 and Dummy Lock 160009... -
Page 21: Drop Lint Door Assembly With Trim
Drop Lint Door Assembly With Trim for ALL Coin Models Illus. No. Part No. Qty. Description 160001 AD-100 Lock Assembly with Key (for Coin Models Only) 160103 AD-100 Key ONLY 800150 Knob Latch Kit Assembly (includes illus. nos. 1 and 2) 160200 Knob Latch ONLY with 2 Screws (without cam) 160003... -
Page 22: Lint Trap Assembly
Illus. No. Part No. Qty. Description 800472 Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 850187 Non-Reversing Lint Trap ONLY 800473 Reversing Lint Trap Assembly Complete (includes illus. nos. 1, 3, 4, and 5) 850188 Reversing Lint Trap ONLY 154200 5/32”... -
Page 23: Idler Bearing Assembly
Idler Bearing Assembly Illus. No. Part No. Qty. Description 100106 5L-690 V-Belt (idler to basket [tumbler]) 101140 14” x 3” Compound Pulley 100117 4L-620 V-Belt (idler to motor) For Non-Reversing Models ONLY 100114 4L-630 V-Belt (idler to motor) For Reversing Models ONLY 154301 5/16-18 x 1”... -
Page 24: Tumbler Bearing Assembly
Tumbler Bearing Assembly American Dryer Corporation 450417-2... - Page 25 Tumbler Bearing Assembly Illus. No. Part No. Qty. Description 880220 1-3/4” Flange Bearing 153025 9/16” Lock Washer 152050 9/16-12 Hex Nut 150508 3/8-16 x 3/4” Hex Head Machine Bolt 153005 3/8” Lock Washer 152005 3/8-16 Hex Nut 150600 3/8-16 x 1-1/2” Hex Head Machine Bolt 153004 3/8”...
-
Page 26: Non-Reversing Totally Enclosed, Fan-Cooled (T.e.f.c.) Motor Mount Assembly
Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly American Dryer Corporation 450417-2... -
Page 27: Non-Reversing Totally Enclosed, Fan-Cooled (T.e.f.c.) Motor Mount Assembly
Non-Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly Illus. No. Part No. Qty. Description 100117 4L-620 V-Belt (motor to idler) 100701 3/16” x 3/16” x 1” Key 101133 5/8” x 2-1/4” Motor Pulley (60 Hz Only) 101130 5/8” x 2-1/2” Motor Pulley (50 Hz Only) 150501 5/16-18 x 3/4”... -
Page 28: Reversing Totally Enclosed, Fan-Cooled (T.e.f.c.) Motor Mount Assembly
Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly American Dryer Corporation 450417-2... -
Page 29: Reversing Totally Enclosed, Fan-Cooled (T.e.f.c.) Motor Mount Assembly
Reversing Totally Enclosed, Fan-Cooled (T.E.F.C.) Motor Mount Assembly Illus. No. Part No. Qty. Description 100114 4L-630 V-Belt (to idler assembly) 100701 3/16” x 3/16” x 1” Key 101130 5/8” x 2-1/2” Motor Pulley (60 Hz Only) 101139 5/8” x 2-3/4” Motor Pulley (50 Hz Only) 120200 3/8”... -
Page 30: Sensor Bracket Assemblies
Sensor Bracket Assemblies Microprocessor Sensor Bracket Assembly MAN0238 Non-Computer Sensor Bracket Assembly American Dryer Corporation 450417-2... - Page 31 Sensor Bracket Assemblies Illus. No. Part No. Qty. Description 880251 1/4” Temperature Sensor Probe Assembly (includes illus. nos. 1 and 5 through 8) 130103 225° Large Automatic Reset Thermostat 153010 #6 Star Washer 152000 #6-32 Hex Nut 121028 Insulated Terminal ONLY 122701 Socket Terminal ONLY 112801...
-
Page 32: Hot Surface Ignition (Hsi) Burner Assembly
Hot Surface Ignition (HSI) Burner Assembly American Dryer Corporation 450417-2... - Page 33 Hot Surface Ignition (HSI) Burner Assembly Illus. No. Part No. Qty. Description 881781* Natural Gas Burner Assembly Complete Less Orifices (includes illus. nos 1 through 9 and 11 through 29) For models mfd. with Natural Gas ONLY 881784* L.P. (liquid propane) Gas Burner Assembly Complete Less Orifices (includes illus.
-
Page 34: Sail Switch Assembly
Illus. No. Part No. Qty. Description 319203 Sail Switch Mounting Bracket 319202 Sail Switch Damper (flat) 319201 Sail Switch Box Cover 319200 Sail Switch Box 154004 Twin Speed Nut 154002 1/8" Push-on Fastener 150309 #10-16 x 1/2" Hex Head TEK Crimptite Screw 150303 #4 x 3/4"... -
Page 35: Single Phase Motor, Electric Relay Panel Assembly
Single-Phase Motor, Electric Relay Panel Assembly Illus. No. Part No. Qty. Description 132451 2-Pole Contactor - 24 VAC 150299 #10 x 1” Hex Washer TEK Screw 824828 RC Network with Connectors (for microprocessor [computer] models Only) 322809 Back Electrical Box Cover ... Not Illustrated 150301 #8-18 x 7/16”... -
Page 36: 3-Phase Motor, Electric Relay Panel Assembly
Illus. No. Part No. Qty. Description 322812 Back Electrical Box Component Plate 132430 Impellor Contactor (208/230/240v, 50/60 Hz) - 24 VAC 132432 Impellor Contactor Replacement Coil (208/230/240v, 50/60 Hz) - 24 VAC 137015 RC Network (for microprocessor [computer] models ONLY) 150103 #8-32 x 3/4”... -
Page 37: Microprocessor Reversing Rear Control Box Assembly
Microprocessor Reversing Rear Control Box Assembly Illus. No. Part No. Qty. Description 322812 Back Electrical Box Component Plate 137060 Arc Suppressor (AS) Board 137013 Nylon Standoff 132431 Reversing Contactor (208/230/240v, 50/60 Hz) - 24 VAC 132432 Reversing Contactor Replacement Coil (208/230/240v, 50/60 Hz) - 24 VAC 150103 #8-32 x 3/4”... -
Page 38: Dual Timer Reversing Rear Control Box Assembly
Illus. No. Part No. Qty. Description 322812 Back Electrical Box Component Plate 132198 Reversing Timer (50/60 Hz) - 24 VAC 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 132431 Reversing Contactor (208/230/240v, 50/60 Hz) - 24 VAC 132432 Reversing Contactor Replacement Coil (208/230/240v, 50/60 Hz) - 24 VAC 150103 #8-32 x 3/4”... -
Page 39: Outer Top/Back Guard Assemblies
Outer Top/Back Guard Assemblies Illus. No. Part No. Qty. Description 322809 Rear Electrical Box Cover 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 323738 Top Back Guard 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 150301 #8-18 x 7/16” Phillips Pan Head TEK Screw 312527 Outer Top Guard 314514... -
Page 40: Coin Acceptor Listing
NOTE: Coin Acceptors listed included Optical Switch (ADC Part No. 137056). ADC Part No. Nation 125100 U.S. and Canada 125101 United Kingdom 125114 United Kingdom 125120 France 125124 France 125107 Australia 125130 Australia 125123 New Zealand 881604 Japan 125103 125121 125129 125132 Singapore... -
Page 41: Step Down Transformer Usage Listing
Step Down Transformer Usage Listing Heat 450417-2 Telephone: (508) 678-9000 / RANSFORMER ISTING Wire Voltage Service 460/480 460/480 www.amdry.com SAGE Transformer Part No. 132059 132059 132062 132062 132053 132053 132050... -
Page 42: Additional Parts Available
Part No. Description 112039 “Black/White/Green Ground” Label 112280 “ Clean Lint Screen” Label 112041 “CAUTION - Exhaust/Lint Screen” Label 112534 “Phase 5 OPL Program Location Summary” Label 114006 “WARNING - Fire Hazards” Label 114095 “MOPHEAD WARNING” Label 117505 Aluminum Duct Tape (sold by the foot) 120100 3/8”... - Page 43 Notes _________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________...
- Page 44 ADC 450417 2 -08/15/05-0...
