Installation/Operator Manual
WARNING: For your safety the information
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●
Do not try to light any appliance.
●
Do not touch any electrical switch;
do not use any phone in your
building.
●
Clear the room, building or area of
all occupants.
●
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
●
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.

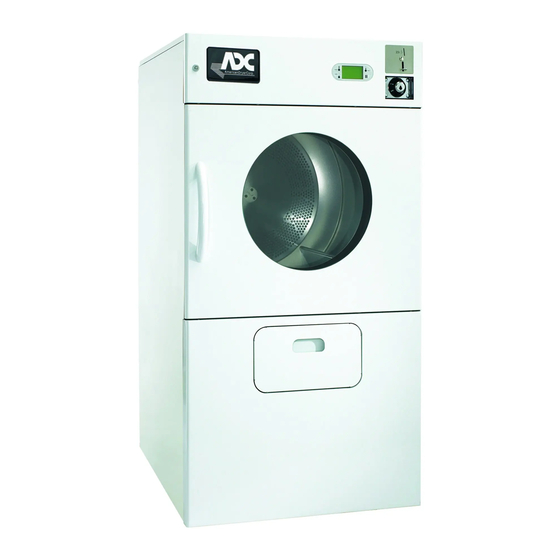

ES35 / M35ES
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d'incendie ou d'explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
—Ne pas entreposer ni utiliser d'essence
ni d'autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●
Ne pas tenter d'allumer d'appareils.
●
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●
Évacuez la pièce, le bâtiment ou la
zone.
●
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L'installation et l'entretien doivent être
assurés par un installateur ou un
service d'entretien qualifié ou par le
fournisseur de gaz.
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 112808- 11
Advertisement
Table of Contents
Related Manuals for American Dryer Corp. ES35
Summary of Contents for American Dryer Corp. ES35
- Page 1 ES35 / M35ES Installation/Operator Manual AVERTISSEMENT: Assurez-vous de bien WARNING: For your safety the information suivre les instructions données dans cette in this manual must be followed to notice pour réduire au minimum le risque minimize the risk of fire or explosion and d’incendie ou d’explosion ou pour éviter...
- Page 2 Retain This Manual in a Safe Place for Future Reference This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation. Only qualified technicians should service this equipment. OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.
-
Page 3: Table Of Contents
WARNING WARNING Children should not be allowed to play on or near the dryer(s). Children should be supervised if near Proposition 65 dryer(s) in operation. Use of this product could expose you to substances Under no circumstances should the dryer door from fuel combustion that contain chemicals switch(es), lint door/drawer switch(es), or heat known to the State of California to cause cancer,... -
Page 4: Safety Precautions
Safety Precautions ___________________ WARNING WARNING Do not use heat for drying articles that contain plastic, foam, sponge rubber, or similarly textured rubber For your safety, the information in this manual must be materials. Drying in a heated tumbler may damage followed to minimize the risk of fire or explosion and plastics or rubber and also may be a fire hazard. - Page 5 IMPORTANT: The dryer must be installed in a location/ environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C). NOTES _____________________________________________________ The operation of this appliance may affect the operation of other types of gas appliances, which take their air for safe ____________________________________________________________ combustion from the same room.
-
Page 6: Specifications
Specifications _____________________________________________________________________ MAXIMUM CAPACITY (DRY WEIGHT) 35 lb 15.88 kg TUMBLER DIAMETER 30” 76.20 cm TUMBLER DEPTH 30” 76.20 cm 347.44 L TUMBLER VOLUME 12.27 cu ft 0.19 kW TUMBLER/DRIVE MOTOR 1/4 hp BLOWER/FAN MOTOR 1/2 hp 0.37 kW DOOR OPENING (DIAMETER) 19-3/8”... - Page 7 Specifications – 60 Hz _______________________________________________________________ 112808 - 11 www.adclaundry.com...
- Page 8 Specifications – 50 Hz _______________________________________________________________ American Dryer Corp. 112808 - 11...
-
Page 9: Installation Procedures
Installation Procedures ______________ Unpacking / Setting Up _______________ Installation should be performed by competent professional Remove protective shipping material (i.e., plastic wrap and in accordance with local, state, and country codes. In the optional shipping box) from the dryer. absence of these codes, the installation must conform to applicable American National Standards: ANSI Z223.1- IMPORTANT: Dryer must be transported and handled in LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA... -
Page 10: Fresh Air Supply Requirements
Domestic Type I A = 6-inches (15.24 cm) A = 10-inches (25.4 cm) B = 11-inches (27.94 cm) B = 24-inches (60.96 cm) EXAMPLE: For a bank of four dryers, 2 unrestricted openings measuring 10-inches by 11-inches (25.4 cm by 27.94 cm) are acceptable. - Page 11 Vertical Venting IMPORTANT: Exhaust back pressure measured by a manometer/magnehelic in the exhaust duct must be no When vertical dryer venting is used, the length of the ductwork less than 0 and must not exceed 0.6 in WC (1.5 mb). from the dryer to the outside exhaust outlet, must not exceed 12 feet (3.66 meters).
-
Page 12: Electrical Information
IMPORTANT: No more than 4 dryers should be Each dryer should be connected to an independently connected to 1 main common duct. protected branch circuit. The dryer must be connected with copper wire only. Do not use aluminum wire, which could The illustration below shows the minimum cross-sectional cause a fire hazard. - Page 13 Electrical Service Specifications Grounding Gas and Steam Models Only A ground (earth) connection must be provided and installed in accordance with local, state, and national regulations or ELECTRICAL SERVICE SPECIFICATIONS codes of the country of destination. In the absence of these codes, grounding must conform to applicable requirements IMPORTANT: 208 VAC AND 230/240 VAC ARE NOT THE SAME.
-
Page 14: Gas Information
Gas and Steam Models Only Electric Models Only 120-240V Application with Neutral Single-Phase (1ø) Wiring Connections / Hookup 200-240V Application without Neutral 3-Phase (3ø) Wiring Connections / Hookup CAUTION: The dryer must be grounded. A ground lug has been provided for this purpose. Input connection wiring must be sized properly to handle the dryer’s current draw. - Page 15 IMPORTANT: For ease of service, the individual gas supply line of each dryer must have its own manual shutoff valve. NOTES _____________________________________________________ The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during ____________________________________________________________ any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa) for non-CE dryers or 50 mb for CE dryers.
- Page 16 Heat Input / Gas Consumption / Orifice (Injector) Data Gas Specifications for Dryers Going to CE Countries** Nominal Supply Gross Burner Orifice Orifice Size Fuel Heating Value Pressure*** Heat Input Pressure (Injector) Type Consumption Quantity B tu /ft Btu/hr 15-30 16.12 1.557 M 3.988...
-
Page 17: Converting From One Family Of Gas To Another
Piping / Connections IMPORTANT: Test all connections for leaks by brushing on a soapy water solution (liquid detergent works well). Inlet connection – 1/2” M.N.P.T. WARNING CE and Australian dryer connections will be B.S.P.T., all others will be N.P.T. Installer within Australia – refer to AS/NZS5601.1 for Never test for leaks with a flame!!! guidance on gas supply pipe sizing required for this appliance installation. - Page 18 IMPORTANT: Use extreme care when removing and IMPORTANT: Never test for leaks with an open flame!!! replacing orifice (injector). This orifice (injector) is made Use a soapy water solution or product intended for that of brass, which is easily damaged. purpose.
-
Page 19: Gas Pressure Testing
Gas Pressure Testing _________________ • Converting from regulated L.P. to regulated natural gas: remove the white plastic regulator adjustment For proper operation, the gas pressure must be correct, screw (under vent cap). Remove spring under screw consistent and maintained at the gas pressure rates shown and replace with spring from kit (ADC P/N 140415). - Page 20 IMPORTANT: Coil failure due to improper pH level will Shutoff valves for each dryer should be installed in the void the warranty. supply line, return line, and drip trap return line. This will allow the dryer to be isolated from the supply main and the Installation Instructions return main if the dryer needs maintenance work.
-
Page 21: Water Information
Water Information ____________________ Optional Manual Bypass Before You Start Provisions are made in the dryer’s fire suppression system Check Local Codes and Permits for the installation of an optional manual bypass. The connections for the manual bypass are made at the “tee” or Call your local water company or the proper municipal “three way”... -
Page 22: Preoperational Test
Microprocessor Programs / Selections • Check bolts, nuts, screws, terminals, and fittings for tightness and security. Each microprocessor controller (computer) has been • Check that the vent is connected to the dryer and is preprogrammed by the factory with the most commonly used exhausted to the outdoors. -
Page 23: Shutdown Instructions
Shutdown Instructions _______________ Warranty For a copy of the commercial warranty covering your particular If the dryer is to be shutdown (taken out of service) for a dryer(s), contact the reseller from whom you purchased the period of time, the following must be performed: equipment and request a dryer warranty form. -
Page 24: Routine Maintenance
Steam Dryers IMPORTANT: No replacements, credits, or refunds will be issued if the claim cannot be processed due to insufficient Clean the steam coil fins. It is suggested that compressed information. The party filing the claim will be notified in air and a vacuum cleaner with brush attachment be used. -
Page 25: Data Label Information
Data Label Information ____________________________________________________________ Standard Label CE Label When contacting ADC, the information on the data label is AGA Label required to ensure proper service/parts assistance. The data label is located at the upper left rear of the dryer behind the back guard. -
Page 26: Programming
Programming _________________________ Event Codes Defined: Top Pocket / Bottom E1 / E4: While attempting to turn on the burner, no burner return Enter Service Mode by Inserting Key and Turning Clockwise signal was received within RADIANT SENSOR COOL DOWN TIME. Main Service Mode window will appear and offer 5 selections: 1: Machine Info 2: Program Setup... - Page 27 NOTES __________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ _________________________________________________________________________________________________________________________________ 112808 - 11 www.adclaundry.com...
- Page 28 ADC Part No. 112808 11 - 01/09/17...
