Summary of Contents for ETS NORD NORDfire SEDS-L

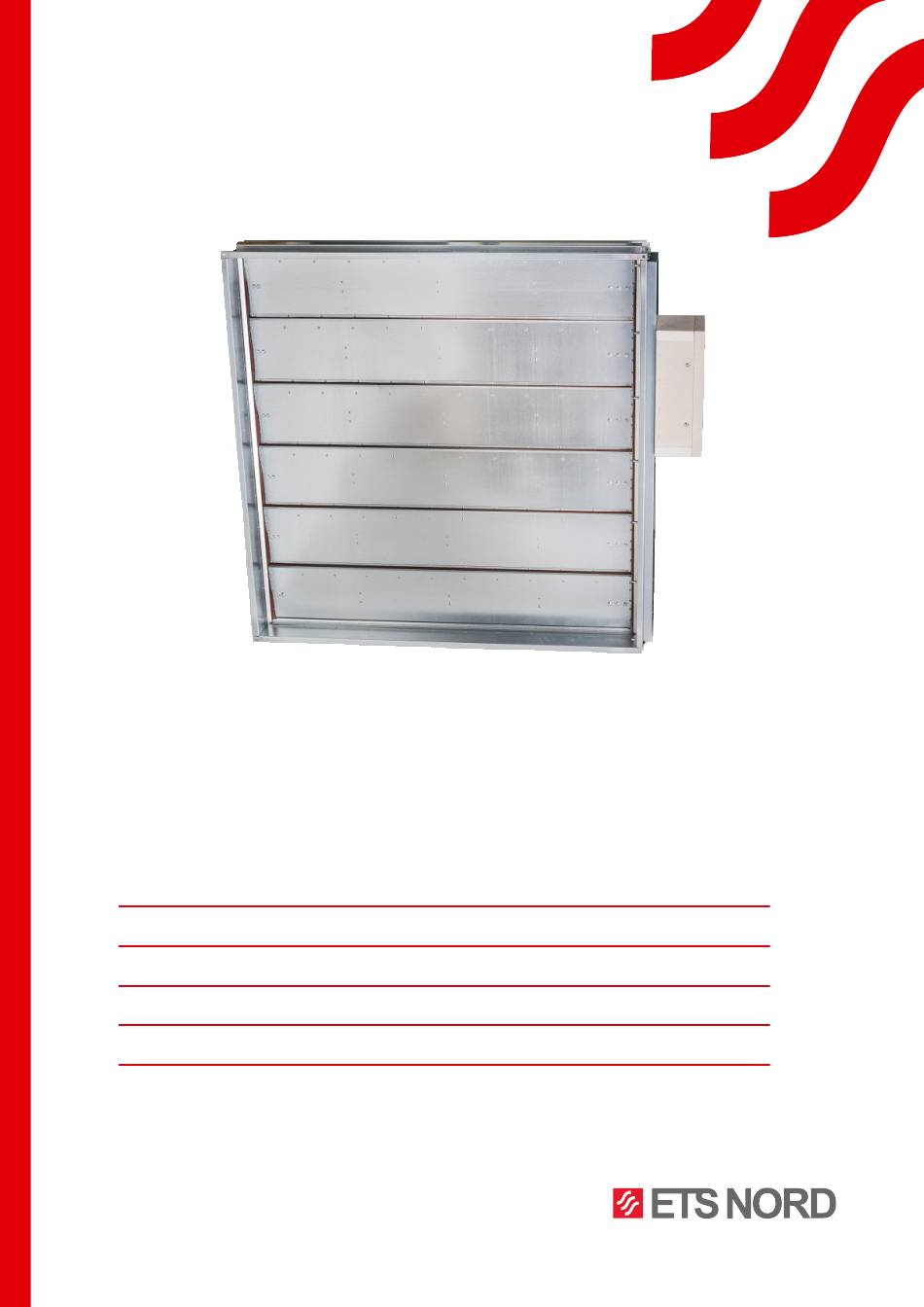

- Page 1 NORDfire SEDS-L Smoke Extraction Damper Square dampers from 200×200 to 1200×1200 mm CE certified acc. to EN 12101-8 Tested in accordance with EN 1366-10 Classified acc. to EN 13501-4+A1 ES Certificate No. 1391-CPR-2020/0187 Declaration of Perfomance No. PM/SEDS-L/01/22/1...
- Page 2 ® NORDfire | SEDS-L Content 1. Description 2. Design 3. Material, Dimensions and Weights 4. Technical Data 5. Product Marking 6. Placement and Assembly 7. Suspension Systems 8. Inspection and Testing 9. Transportation and Storage 10. Assembly, Attendance, Maintenance and Revisions 11.
-
Page 3: General Information
® NORDfire | SEDS-L General Information 1. Description Fig. 1. Damper SEDS-L Smoke extraction dampers - single are shutters in smoke exhaust piping systems. Dampers are designed to remove heat and combustion products (e.g. smoke) from single fire compartment. In the event of fire the Smoke and Fire ventila- tion system opens the damper in the affected section which removes combustion products and heat from this section. - Page 4 ® NORDfire | SEDS-L installing the damper or when connecting the actuator power cable. The cable entry must meet a minimum fire resistance of 30 minutes. Design .65 Fig. 2. Act. mechanism in the cover Belimo modulating actuators, BEN (BEE)-SR series for 24V AC/DC are specially designed for remote control of smoke control dampers.
- Page 5 <5° <80° ® NORDfire | SEDS-L Fig. 5. Belimo BEN 230 <5° <80° Tab. 2. Actuator BELIMO BEE 24(-ST), BEE 24-SR, BEE 230 BELIMO – 25 Nm BEE 24(-ST) BEE 24-SR BEE 230 AC/DC 24 V AC/DC 24 V AC 230 V Power voltage 50/60 Hz 50/60 Hz...
- Page 6 <5° <80° ® NORDfire | SEDS-L Fig. 8. Belimo BEE 230 <5° <80° Tab. 3. Actuator BELIMO BE 24-12(-ST), BE 230-12 BELIMO - 40 Nm BE 24(-ST) BE 230-12 AC/DC 24 V AC 230 V Power voltage 50/60 Hz 50/60 Hz Power consumption - in operation 12 W...
-
Page 7: Dimensions And Weights
® NORDfire | SEDS-L 3. Material, Dimensions and Weights 3.1 Material Damper casing and damper blade are made of galvanized plate without any other surface finish. Fasteners are galvanized. The actuator cover is made of fire-resistant material (fire protection board). 3.2 Dimensions and Weights Fig. - Page 8 ® NORDfire | SEDS-L Tab. 7. Weights and effective area cross section Number Number Weight Weight ) Actuator ) Actuator (kg) (kg) blades blades 14,3 0,0227 1000 42,7 0,2635 16,4 0,0270 1100 46,3 0,2874 17,3 0,0350 1200 48,5 0,3184 18,3 0,0430 17,6 0,0511...
- Page 9 ® NORDfire | SEDS-L Number Number Weight Weight ) Actuator ) Actuator (kg) (kg) blades blades 43,1 0,3209 1000 43,9 0,3802 45,9 0,3769 1000 50,3 0,4762 50,5 0,4200 1000 56,5 0,5501 1000 53,3 0,4760 1000 60,3 0,6461 1100 57,9 0,5191 1000 66,5 0,7200...
-
Page 10: Technical Data
® NORDfire | SEDS-L 4. Technical Data 4.1 Pressure Drops B = 250 Δp (Pa) B = 300/450 B = 350/500/700/ 900/1100 B = 200/400/600/ 800/1000/1200 Δp - static pressure drop w (m/s) v (m/s) w - air velocity in the free cross section (AxB) B - height of the damper Air density ρ=1,2 kg/m³... - Page 11 ® NORDfire | SEDS-L Tab. 5. Sound power level Lw in dB(A) for B=350/500/700/900/1100 mm, damper fully open Frequency of octave band f (Hz) v (m/s) 1000 2000 4000 8000 Kokku Tab. 6. Sound power level Lw in dB(A) for B=200/400/600/800/1000/1200 mm, damper fully open Frequency of octave band f (Hz) v (m/s) 1000...
-
Page 12: Product Marking
Results of regular checks, imperfections found and all-important facts connected with the damper function must be recorded in the "FIRE BOOK" and immediately reported to the operator. ® NORDfire | SEDS-L Before entering the dampers into operation after their assembly and by sequential checks, the following checks must be carried out for all designs. -
Page 13: Installation
® NORDfire | SEDS-L Installation 6. Placement and Assembly Smoke extraction dampers single are designed to remove heat and combustion products (e.g. smoke) from single fire compartment according EN1366-9. Smoke extraction dampers single are designed for installation with horizontal or vertical axis of the blades. Backtoback smoke exhaust duct has to be hung or supported so as all load transfer from the backtoback smoke exhaust duct to the damper is absolutely excluded. -
Page 14: Suspension Systems
® NORDfire | SEDS-L 7. Suspension Systems 7.1 Mounting to the ceiling wall Fig. 13. Mounting to the ceiling wall Without anchor With anchor With hinge plate and anchors Screw with internal thread and hexagon drive Hinge plates Screw with internal thread and hexagon drive Load capacities of threaded hanger rode F (N) at the required fire resistance 90 minutes Weight G (kg) -
Page 15: Inspection And Testing
® NORDfire | SEDS-L 8. Inspection and Testing The appliance is constructed and preset by the manufacturer, its operation is dependent on proper installation and adjustment. 9. Transportation and Storage Dampers are transported by box freight vehicles without direct weather impact, there must not occur any shocks and ambient temperature must not exceed +40°C. -
Page 16: Entry Into Service And Revisions
fig. 17). ● Pull the heat resistant cable through the calcium silicate plate (wall) and connect with cables from actuator acc. to above mentioned electrical diagram. ● Seal up the space around cable with fire resistant mastic (HILTI CFS-S ACR, PROMASTOP) or equivalent. ®... - Page 17 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 184 2842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 692 35 Kumla...
