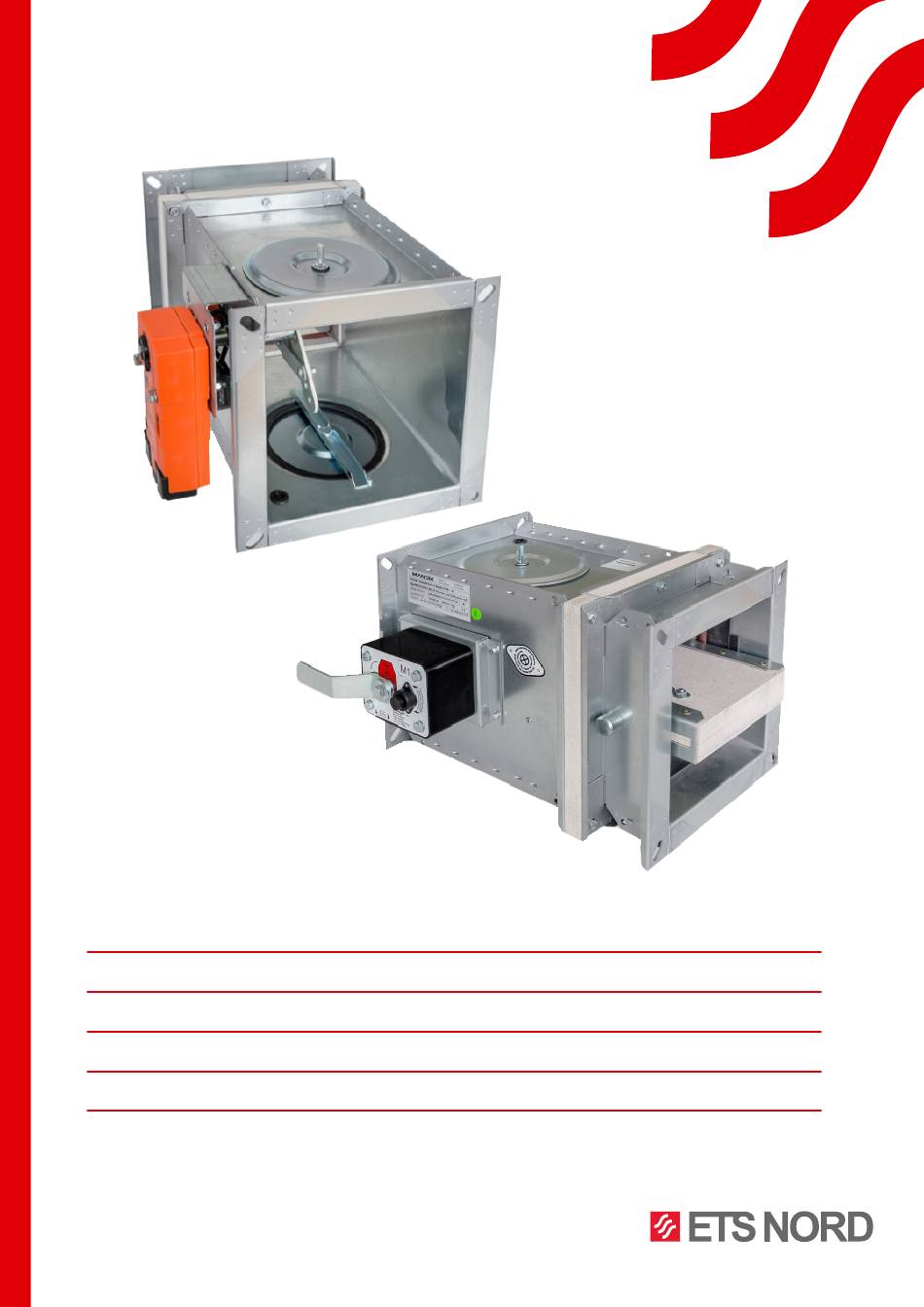

NORDfire
FDMQ Fire Damper
Square dampers from 150×150 mm to 1 500×800 mm
CE certified acc. to EN15650
Fire resistance up to EIS 120
External Casig leakage class C, Internal leakage class 2 acc. to EN 1751
Damper actuating mechanical, or electrical

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORDfire and is the answer not in the manual?

Questions and answers

Related Manuals for ETS NORD NORDfire

Summary of Contents for ETS NORD NORDfire

  • Page 1 NORDfire FDMQ Fire Damper Square dampers from 150×150 mm to 1 500×800 mm CE certified acc. to EN15650 Fire resistance up to EIS 120 External Casig leakage class C, Internal leakage class 2 acc. to EN 1751 Damper actuating mechanical, or electrical...

  • Page 2: General Information

    ® NORDfire | FDMQ General information Description 1.1 Fire dampers are shutters in ducts of air-conditioning devices that prevent spreading the fire and combustion products from one fire segment to the other one by means of closing the duct in the points of fire separating constructions.
  • Page 3 ® NORDfire | FDMQ 1.3 Working conditions Right damper function is secured under the following conditions: Maximum air circulation speed: 12 m/s Maximum pressure difference: 1200 Pa The air circulation in the whole damper section must be secured as steady on whole surface.
  • Page 4 ® NORDfire | FDMQ Design .80 Design .01 with mechanical control can be complemented with a terminal switches signaling of the damper blade position “CLOSED” and “OPEN”. Limit switches are connected via damper casing, cables are connected directly to limit switches.
  • Page 5 ® NORDfire | FDMQ 2.2 Design with actuating mechanism Design .40, .50 FDMQ is always equipped by electric actuating mechanism BFL, BFN, BF 230-TN or BFL, BFN, BF 230-TN (further only "actuating mechanism"). After being connected to power supply AC/DC 24V or 230V, the actuating mechanism displaces the damper blade into operation position "OPEN"...
  • Page 6 ® NORDfire | FDMQ Fig. 10 Actuating mechanism BELIMO BFL,BFN 24-T(-ST) AC/DC 24 Tab 2.2.1. Actuating mechanism BELIMO BFL 24-T(-ST), BFN 24-T(-ST), BFL 230-T a BFN 230-T Actuating mechanism BELIMO BFL, BFN 230-T BFL, BFN 24-T(-ST) AC 24 V 50/60 Hz...
  • Page 7 ® NORDfire | FDMQ Tab 2.2.2. Actuating mechanism BELIMO BF 24-TN(-ST), BF 230-TN Actuating mechanism BF 24-TN(-ST) BF 230-TN BELIMO AC 24 V 50/60 Hz Nominal voltage AC 230 V 50/60 Hz DC 24 V Power consumption - motoring - holding...
  • Page 8 ® NORDfire | FDMQ Dimensions Dimensions, weighs and effective area Dimensions 3.1 Dimensions Fig. 12 Design with mechanical control B - 10 B - 10 Position: 1 Damper casing 2 Mechanics 3 Damper blade 4 Inspection hole covering 5 Sensor sticker 6 Hole for camera Fig.
  • Page 9 ® NORDfire | FDMQ 3.2 Dimensions, weights and effective area Tab 3.2.1. Dimensions, weights and effective area Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne 150x150 0,0106 x630...
  • Page 10 ® NORDfire | FDMQ Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne x250 13,0 14,5 0,0472 x650 23,5 26,5 0,1712 x280 14,0 15,5 0,0548 x700 28 273 25,0...
  • Page 11 ® NORDfire | FDMQ Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne x315 80,5 18,0 20,0 0,1063 x750 53 298 35,5 38,5 0,3596 x355 - 100,5 19,5 21,0...
  • Page 12 ® NORDfire | FDMQ Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne x450 27,5 30,5 0,2329 x180 20,0 21,5 0,0788 x500 29,0 32,0 0,2632 x200 21,0 22,5 0,0925...
  • Page 13 ® NORDfire | FDMQ Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne x560 37,0 40,0 0,3836 x280 34,0 35,5 0,2311 x600 39,0 42,0 0,4146 x300 35,0 36,5 0,2526...
  • Page 14 ® NORDfire | FDMQ Kaal Vaba Kaal Vaba Ajami Mehh. Ajami Mehh. pind pind Manu- tüüp kontr. Manu- tüüp kontr. Ajamiga Ajamiga aalne aalne x750 53 298 68,5 71,5 0,9419 x500 57,0 60,0 0,6416 x800 78 323 71,5 74,5 1,0106...
  • Page 15 Blades overlaps ® NORDfire | FDMQ 3.3 Blades overlaps Blades overlaps Blades overlaps Tab 3.3.1. Blades overlaps Act. mechanism side "a" Blades overlaps Dimension Overlaps Act. mechanism side ”a” Tab. 4.2.1 Side without act. mechanism "c" DAMPER OVERLAPS Fig.28 Side without act. mechanism ”c”...

  • Page 16: Placement And Assembly

    ® NORDfire | FDMQ Placement and Assembly 4.1 Fire dampers are suitable for installation in arbitrary position in vertical and horizontal passages of fire separating structures. The damper assembly procedures must be done so that all load transfer from the fire separating constructions to the damper body is absolutely excluded.
  • Page 17 ® NORDfire | FDMQ Fig. 18 Built in edge Built in edge "Wall edge sticker" indicates the recommended edge of installation of fire damper into the fire partition structure (wall). The damper must be installed so that the entire damper blade - in the closed position - is located inside the fire separating structure “Wall edge sticker”...

  • Page 18: Statement Of Installations

    ® NORDfire | FDMQ Statement of installations 5.1 Installation method list Tab 5.1.1. Installation method list Wall/Ceiling Fire Fire separating constru. Installation Page Min.thickness resist. [mm] EIS 120 Mortar or gypsum EIS 90 EIS 60 Fire protection foam with stucco...
  • Page 19 ® NORDfire | FDMQ 5.2 Installation in solid wall construction Fig. 20 Solid wall construction- mortar or gypsum ≥ 100 ≥ 100 EIS 120 EIS 90 * Around the perimeter ≤ 75* ≤ 75* Position: 1 Fire damper 2 Solid wall construction...
  • Page 20 ® NORDfire | FDMQ Fig. 22 Solid wall construction- battery- mortar or gypsum The gap 67 mm between dampers can be filled by EIS 90 mineral stone wool min. density 140 kg/m³. Wool is fixed to damper body by fire protection mastic.
  • Page 21 ® NORDfire | FDMQ Fig. 23 Solid wall construction- installation next to wall, ceiling- mortar or gypsum and mineral wool EIS 90 ≤ 75 ≤ 75 ≤ 75 ≥ A+100 ≥ 100 (≥ 100)+20 Position: 1 Fire damper 2 Mortar or gypsum 3 Stuffing box (mineral stone wool min.
  • Page 22 ® NORDfire | FDMQ Fig. 24 Solid wall construction- stuffing box, fire protection mastic and cement lime plate ≥ 100 EIS 90 ≥ 20* ≤ 75* * Around the perimeter ≥ 25 ≤ 300 ≤ 300 (min. 4x50) ≥ 25 Screws has to be fixed in wall/ceiling construction.
  • Page 23 ® NORDfire | FDMQ Fig. 25 Solid wall construction- Weichschott EIS 90 EIS 90 D+60 kuni 800 max 2050 D+60 kuni 800 max 1650 ≥ 100 Position: Used materials - example: 1 Fire damper Hilti CFS-CT B 1S 140/50 2 Solid wall construction...
  • Page 24 ® NORDfire | FDMQ 5.3 Installation outside solid wall construction Fig. 26 Outside solid wall construction- mineral wool- mortar or gypsum EIS 60 ≤ 75* * Around the perimeter ≥ 100 Position: 1 Fire damper 2 Solid wall construction 3 Mortar or gypsum 4 Stone wool with wired mat on one side, density 66 kg/m³...
  • Page 25 ® NORDfire | FDMQ Fig. 27 Outside solid wall construction- mineral wool- stuffing box and protection mastic EIS 60 EIS 90 ≥ 20* ≤ 75* * Around the perimeter ≥ 100 Position: 1 Fire damper 2 Solid wall construction 3 Stuffing box (mineral stone wool min.
  • Page 26 ® NORDfire | FDMQ Fig. 28 Outside solid wall construction- mineral wool, stuffing box, fire protection mastic and cement lime plate. EIS 90 ≥ 20* ≤ 75* ≥ 100 ≥ 400 ≥ 100 ≥ 100 ≥ 400 * Around the perimeter ≥...
  • Page 27 ® NORDfire | FDMQ 5.4 Installation in gypsum wall construction Fig. 29 Gypsum wall construction- mortar or gypsum EIS 120 EIS 90 ≥ 100 Installation opening has to be reinforced by steel U-profile. Profile is fixed by screws ≥3,5 mm with corre-sponding length.
  • Page 28 ® NORDfire | FDMQ Fig. 30 Gypsum wall construction- fire protection foam with stucco plaster EIS 60 EIS 45 EIS 30 Maximal damper dimensions 400x400 mm Installation opening has to be reinforced by steel U-profile. Profile is fixed by screws ≥3,5 mm with corre-sponding...
  • Page 29 ® NORDfire | FDMQ Fig. 31 Gypsum wall construction- battery- mortar or gypsum The gap 67 mm between dampers can be filled by EIS 90 mineral stone wool min. density 140 kg/m³. Wool ≥ 67 is fixed to damper body by fire protection mastic.
  • Page 30 ® NORDfire | FDMQ Fig. 32 Gypsum wall construction- installation next to wall, ceiling- mortar or gypsum and mineral wool EIS 90 ≤ 75 ≤ 75 Installation opening has to be reinforced by steel U-pro- file. Profile is fixed by screws ≥3,5 mm with corre-sponding...
  • Page 31 ® NORDfire | FDMQ ≥ 100 Fig. 33 Gypsum wall construction- stuffing box, fire protection mastic and cement lime plate Installation opening has to be EIS 90 reinforced by steel U-profile. ≥ 100 Profile is fixed by screws ≥3,5 mm with corre-spond- ing length.
  • Page 32 ® NORDfire | FDMQ Fig. 34 Gypsum wall construction- Weichschott EIS 90 Installation opening has to be reinforced by steel U-profile. Profile is fixed by screws ≥3,5 mm with corre-sponding length. Distance between screws ≤200 mm. D+60 to 800 D+60 kuni 800 max.
  • Page 33 ® NORDfire | FDMQ 5.5 Installation outside gypsum wall construction Fig. 35 Outside gypsum wall construction- mineral wool- mortar or gypsum EIS 60 Installation opening has to be reinforced by steel U-pro- file. Profile is fixed by screws ≥3,5 mm with corre-sponding length.
  • Page 34 ® NORDfire | FDMQ Fig. 36 Outside gypsum wall construction- mineral wool- stuffing box and fire protection mastic EIS 60 Installation opening has to be reinforced by steel U-profile. Profile is fixed by screws ≥3,5 mm with corre-spond- ing length. Distance between screws ≤200 mm.
  • Page 35 ® NORDfire | FDMQ Fig. 37 Outside gypsum wall construction- mineral wool- stuffing box and fire protection mastic and cement plate EIS 90 Installation opening has to be rein- EIS 120 ***** forced by steel U-profile. Profile is fixed by screws ≥3,5 mm with corre-sponding length.
  • Page 36 ® NORDfire | FDMQ 5.6 Installation in solid ceiling construction Fig. 38 Solid ceiling construction- mortar or gypsum EIS 120 EIS 90 ≤ 75** Position: 1 Fire damper 2 Solid ceiling construction 3 Mortar or gypsum * min. 110 - Concrete/ min. 125 - Aerated concrete...
  • Page 37 ® NORDfire | FDMQ Fig. 39 Solid ceiling construction- battery- mortar or gypsum EIS 90 The gap 67 mm between dampers can be filled by mineral stone wool min. density 140 kg/m³. Wool is fixed to damper body by fire protection mastic.
  • Page 38 ® NORDfire | FDMQ Fig. 40 Solid ceiling construction- stuffing box, fire protection mastic and cement lime plate EIS 90 ≤ 75** ≥ 20** ≤ 75** ** Around the perimeter ≥ 25 ≤ 300 ≤ 300 Kruvi Screw ≥ 25 ≤...
  • Page 39 ® NORDfire | FDMQ Fig. 41 Solid ceiling construction- Weichschott EIS 90 Position: * min. 110 - Concrete/ min. 125 - Aerated concrete 1 Fire damper 2 Solid ceiling construction 3 Fire resistant board 4 Fire stop coating thickness 1 mm...
  • Page 40 ® NORDfire | FDMQ Shown schemes of incorporation and damper are illustrative only! 5.7 Installation outside solid ceiling construction Fig. 42 Outside solid ceiling construction- mineral wool- mortar and gypsum EIS 90 ≤ 75** ≥ 100 Variable**** valikuline**** ** Around the perimeter ≥...
  • Page 41 ® NORDfire | FDMQ Fig. 43 Outside solid ceiling construction- Concrete EIS 90 ≤ 750 Rebar - Steel wire Ø 6 mm ≤ 100 Position: * min. 110 - Concrete/ min. 125 - Aerated concrete 1 Fire damper ** Around the perimeter...
  • Page 42 ® NORDfire | FDMQ VRM reinforcing frame For dampers with A ≥ 800 and damper placement outside wall construction is necessary to use reinforcement VRM. Fig. 44 Fixing of reinforcement to damper body VRM Important: For lower resistance that EI90 the reinforcement VRM is not necessary! 1.
  • Page 43 ® NORDfire | FDMQ Fig. 45 Installation procedure 1) Cut the groove for profil U25x40x25 2) Insert profile into groove 3) Fix profile 4) Fix second layer of insulation Screw 4,2x50 max. 350 Installation details see chapter 9.4 Shown schemes of incorporation and damper are illustrative only!

  • Page 44: Suspension Systems

    ® NORDfire | FDMQ Suspension systems Fig. 46 Mounting to the ceiling wall Without anchor With anchor With hinge plates and anchor Hingeplates Position: 1 Threaded rod M8 – M20 2 Nut 3 Washer 4 Coupling Nut 5 Anchor 6 Hinge plate - min. thickness 10 mm...
  • Page 45 ® NORDfire | FDMQ 8.1 Horizontal installation Fire dampers can be suspended by using threaded rods and a mounting profiles. Load the suspension system depend on weight of the fire damper. Damper assembly procedures must be done so as all load transfer from the fire separating constructions to the damper body is absolutely excluded.
  • Page 46 ® NORDfire | FDMQ 8.2 Vertical installation Fire dampers can be suspended by using threaded rods and a mounting profiles. Load the suspension system depend on weight of the fire damper. Damper can be suspended from the ceiling construction or supported above the ceiling construction.
  • Page 47 ® NORDfire | FDMQ 8.3 Rectangular fire damper suspension on the wall- horizontal installation Duct between fire damper and fire separating construction can be suspended by using threaded rods and mounting profiles. Load the suspension system depend on weight of the fire damper and duct system.
  • Page 48 ® NORDfire | FDMQ Pressure loss 9.1 Pressure loss calculation pressure loss air flow speed in nominal damper section air density coefficient of local pressure loss for the nominal damper section (see Tab. 10.1.1.) 9.2 Determination of pressure loss by using diagram Diagram 9.2.1.Pressure losses for air density...

  • Page 49: Coefficient Of Local Pressure Loss

    ® NORDfire | FDMQ 10. Coefficient of local pressure loss 10.1 Coefficient of local pressure loss Tab 10.1.1. Coefficient of local pressure loss Images are for illustrative purposes RDT-07-0122 We reserve the right to make changes...

  • Page 50: Noise Data

    ® NORDfire | FDMQ 11. Noise data 11.1 Level of acoustic output corrected with filter A. level of acoustic output corrected with filter A level of acoustic output related to the 1 m² section (see Tab. 11.3.1.) duct cross section correction to the weight filter A (viz Tab.

  • Page 51: Material, Finishing

    ® NORDfire | FDMQ Tab 11.3.3. Relative level expressing the shape of the spectrum f [Hz] [m/s] 1000 2000 4000 8000 -4,5 -6,9 -10,9 -16,7 -24,1 -33,2 -43,9 -56,4 -3,9 -5,3 -8,4 -13,1 -19,5 -27,6 -37,4 -48,9 -3,9 -4,5 -6,9...

  • Page 52: Inspection, Testing

    ® NORDfire | FDMQ variants of the dampers; the standard galvanised screws are replaced with stainless-steel M4 screws of corresponding class the counterpart has stainless-steel riveting M4 nuts. Some fasteners and components are available in one class of stainless steel; the type will be used in all stainless-steel variants.
  • Page 53 ® NORDfire | FDMQ Fig. 50 Embedding/ fixing the damper Protecting the damper against buckling, above all when there are big sizes of the fire dampers! WRONG! Brace with wooden blocks 16.3 All flange and screw joints must be conductively connected during the assembly to provide protection against dangerous contact.

  • Page 54: Entry Into Service And Revisions

    ® NORDfire | FDMQ 17. Entry into service and revisions 17.1 Before entering the dampers into operation after their assembly and by sequential checks, the following checks must be carried out. Visual inspection of proper damper integration , inside damper area, damper blade, contact surfaces and silicon sealing. Check of thermal protective fuse and closing mechanism.

  • Page 55: Spare Parts

    ® NORDfire | FDMQ back to "OPEN" position by restoring the power supply to the actuating mechanism (e.g. by releasing the reset button, by restoring the power supply from electrical fire signalization). 17.4 The check of function of the damper with actuating mechanism can be carried out as follows: a) by cutting off and restoring the power supply, e.g.

  • Page 56: Product Data

    ® NORDfire | FDMQ Tab 20.1.1. Dampers design Dampers design Additional digit Manual and thermal Manual and thermal (ATEX, zone 1,2) Manual and thermal with a terminal switch („CLOSED“) Manual and thermal with a terminal switch („CLOSED“) (ATEX zone 1,2)
  • Page 57 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 0401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
