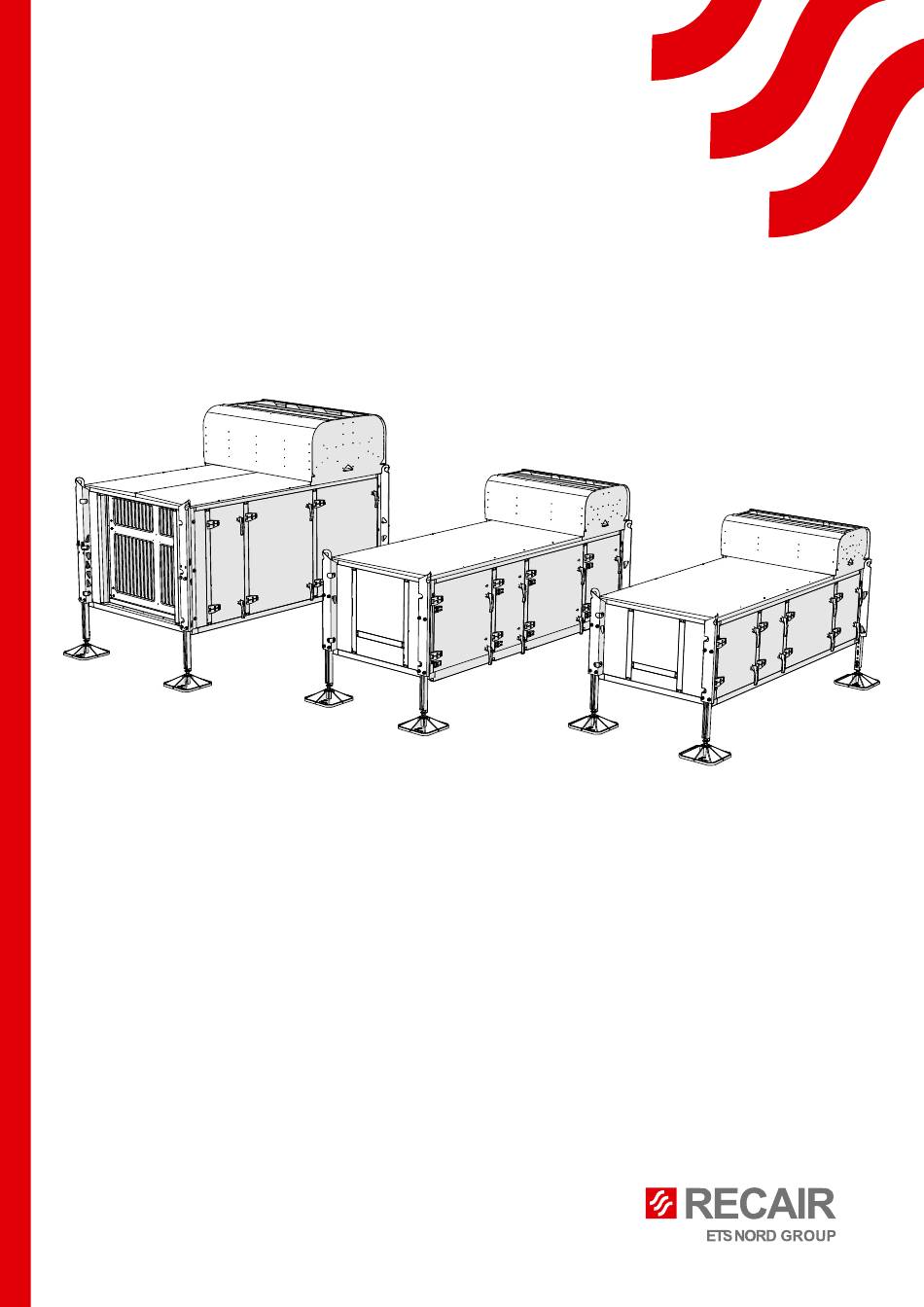

- Page 1 RECAIR E-series Installation and Maintenance Manual...
-
Page 2: Table Of Contents
Recair | E-series Contents 1. Overview 2. Dimensions 3. Safety 4. Disclaimer 5. Warranty 6. Intended use 7. Transport 8. Installation 9. Maintenance www.etsnord.com RDM-118-0225... -
Page 3: Overview
Recair | E-series 1. Overview 2. Dimensions 1169 2650 Clear opening 1220 2955 2930 Images are for illustrative purposes. RDM-118-0225 We reserve the right to make changes. - Page 4 Recair | E-series 1169 2880 Clear opening 1220 3205 3180 1509 2575 1050 1010 Clear opening 1560 2880 2856 www.etsnord.com RDM-118-0225...
-
Page 5: Safety
6. Intended use ETS NORD Recair E-series air handling units are designed to be used in almost any air handling unit applications to provide sufficient and healthy ventilation to the people and secure the good condition of the building structures. -
Page 6: Transport
Recair | E-series 7. Transport The center of gravity might not be in the center of the package. Unit can be lifted with a forklift or crane. * The roof hood must be removed when lifting the unit with the crane. www.etsnord.com RDM-118-0225... -
Page 7: Installation
Recair | E-series 8. Installation Make sure that all the equipment is delivered before installation. Notify any deviation of the ordered equipment to supplier. • Make sure the doors are accessible for maintenance. • Avoid placing the unit right against the wall. 8.1 Unit installation Connection type For sizes E2B and E3B it is possible to change the connection type, roof transition connection and side connec-... - Page 8 Recair | E-series Installing the unit on the roof transition * For installation with a side connection this step can be skipped. For sizes E2B and E3B it is possible to install the unit on roof transition. Make sure to remove the roof hood before roof transition installation.
- Page 9 Recair | E-series Installation and leg adjustment For both roof transition installation and side duct connection setup, follow the instructions: Place the footplates on the ground: 1. Loosen the bolts from the legs. 2. Lower the legs and adjust the height. 3.
- Page 10 Making side duct connection 1. Make sure the unit is level. 2. Use sealant on the duct connection to make it airtight, like ETS NORD Ventilation Silicone. 3. Install duct inside the unit opening. 4. Connect the duct and the unit with screws or rivets.
- Page 11 Recair | E-series To mitigate the risk of freezing, the drainage pipe must be properly insulated: Pipe connection The pipe connection size is determined by the selected coil and specified in technical printout. The pipe connec- tion is copper non threaded pipe ends. Images are for illustrative purposes.
- Page 12 Recair | E-series Electrical connection Always turn off the unit before opening the electrical panel. ON/OFF E2B electrical connections E3B and E4C electrical connections www.etsnord.com RDM-118-0225...
-
Page 13: Maintenance
Recair | E-series 9. Maintenance Shut down the unit before opening the service door and doing any maintenance on the unit. 9.1 Filter replacement Particles from the filter can be hazardous. Make sure you take the necessary precautions. Filter types: Filter size Filter class for standard unit ISO Unit size... - Page 14 Recair | E-series 9.2 Coil cleaning Shut down the unit before opening the service door and doing any maintenance on the unit. Regular cleaning of the coil fins is essential for optimal performance. The frequency of cleaning depends on the level of air cleanliness and the maintenance of the air filter and other system components. First, the air inlet side of the device must be cleaned with a brush, and then the entire coil must be cleaned with compressed air, water or steam (note that pressure washing is not allowed).
- Page 15 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 40 184 2842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
